Toshiba TC-net 100 - Launch Close Log Save Tool; Launch Log Save Tool

8. Log Save Tool
98
8.2 Launch / Close Log Save Tool
8.2.1 Launch Log Save Tool
After installing TC-net OPC Server, “Log Save Tool” is registered in [Startup].
Log Save Tool runs automatically when system starts. (*1)
At this time, you should launch Log Save Tool manually.
Select the [Log Save Tool] on the App view on Windows 8.1/Windows Server 2012 R2.
Select [Start]-[All Programs]-[ TC-net Opc Server]-[ Log Save Tool] on other OS. (*2)
On Windows 8.1/Windows Server 2012 R2
You can remove
‘
Log Save Tool
’
from <Startup> as below. (Windows 8.1 only)

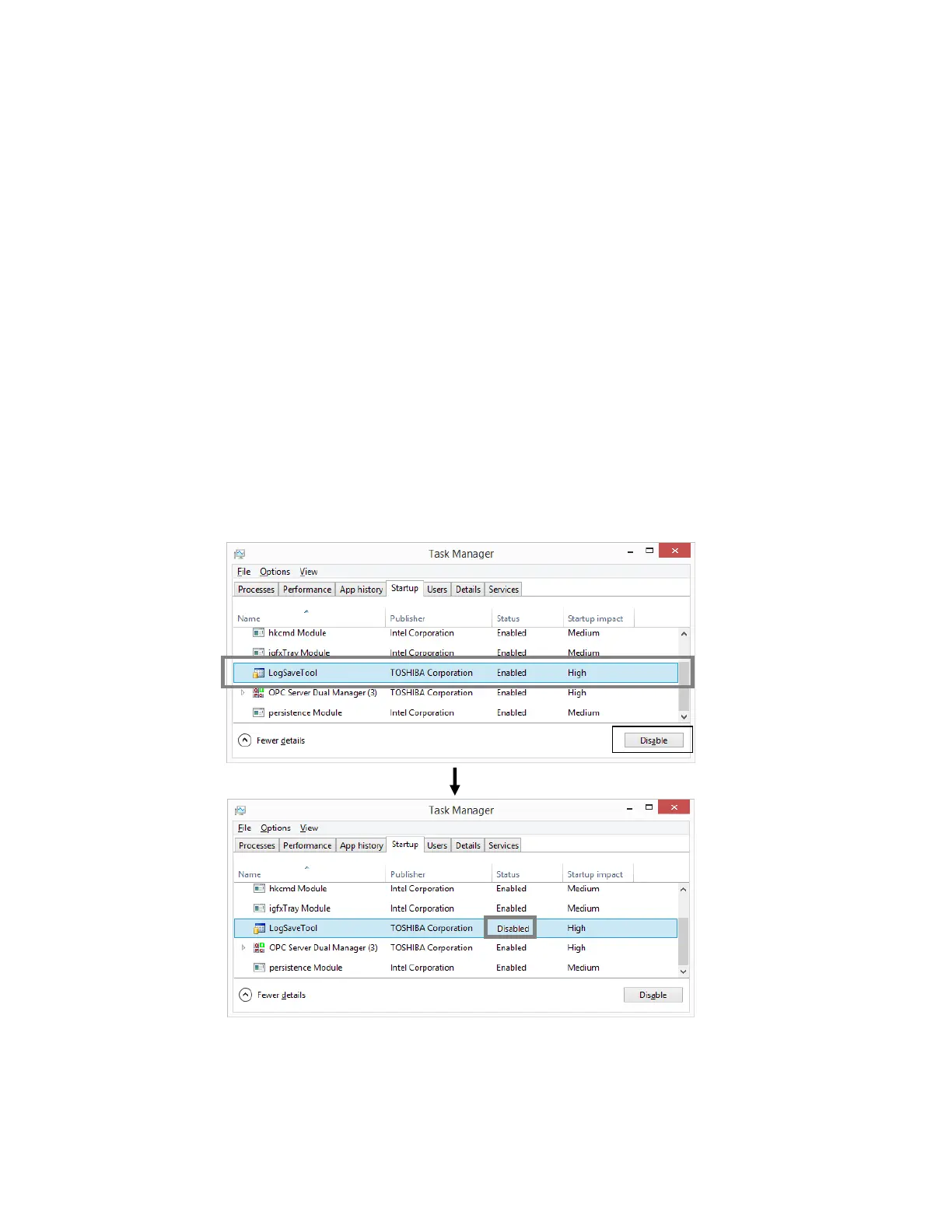

Open Task Manager and select the <Startup> tab.
Select
‘
Log Save Tool
’
and click <Disable> button.
Figure 8.1 Remove from [Startup] (Windows 8.1 only)
Select the [Log Save Tool] on the App view on Windows 8.1/Windows Server 2012 R2.
