1. Hardware Renewal
1
1. Hardware Renewal
DPCS Renewal
For renewal to DPCS Emulator, renew the Main Unit (Unit, Emulation module, Dual Tracking module,
Communication module, Power supply module, Fan unit), the Loop Unit (Base unit, Loop PIO module), and
the PI/O Unit (Base unit, Base card, Intelligent PIO Module).
To renew the Main Unit, you need to renew the following items.

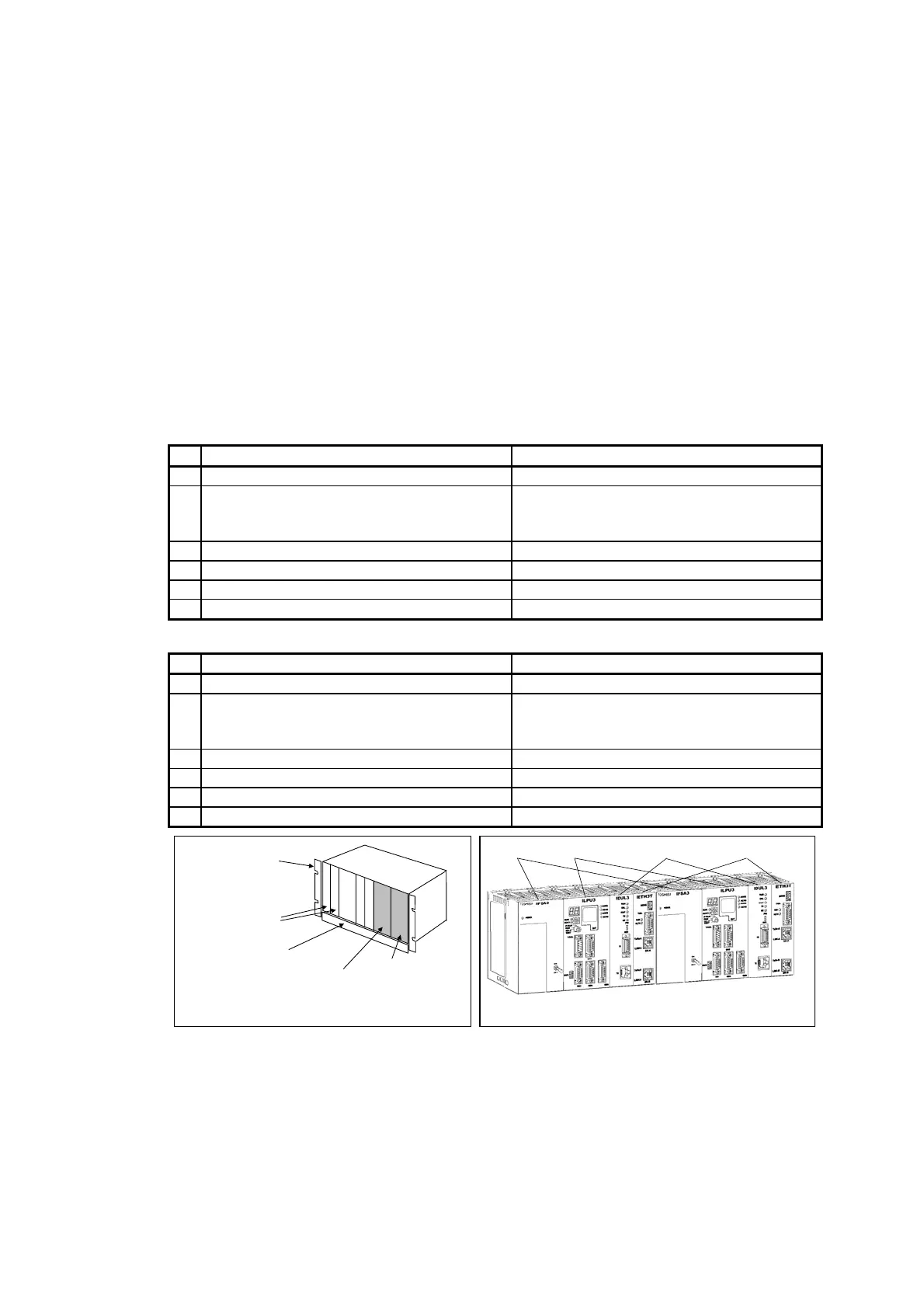

Table 1.1 Renewal Items for TOSDIC-AS (Main Unit)
DPCS DPCS Emulator
1 VCMPX5 (SHC Bus Communication control card) IETH3T (Ethernet Communication module)
2 VSCPX2 (Sequence control card)
VACPX2 (Arithmetic control card)
VSVPX1 (Monitor card)
ILPU3 (Emulation module)
3 IDLU3 (Dual Tracking module)
4 VPSWX3 (DC Power supply card) IPSA2 (AC Power supply module)
5 VMCUX1 (Main control unit) IPCU22 (Main base unit)
6 UFAN7 (Fan unit)
Table 1.2 Renewal Items for TOSDIC-AD (Main Unit)
DPCS DPCS Emulator
1 VMMSX2 (ADMAP Communication control card) IETH3T (Ethernet Communication module)
2 VSCPX2 (Sequence control card)
VACPX2 (Arithmetic control card)
VSVPX1 (Monitor card)
ILPU3 (Emulation module)
3 IDLU3 (Dual Tracking module)
4 VPSWX3 (DC Power supply card) IPSA2 (AC Power supply module)
5 VMCUX1 (Main control unit) IPCU22 (Main base unit)
6 UFAN22 (Fan unit) UFAN7 (Fan unit)
Figure 1.1 Renewal of the Main Unit
VCMPX5/VMMX2
(for redundant configuration)
VCMPX5/VMMX2
VPWSX32
(DC power supply card)
VFANU22
(Fan unit)
VMCUX1
(Main control unit)
13
11
DPCS
IPSA2 ILPU3 IDUL3
IETH3
DPCS Emulator
