VAMPX12/STC01 Cold Junction Compensation
Cold Junction Compensation input of VAMPX12
Cold Junction Compensation input of VAMPX12 is assigned at the 16th channel on terminal unit. By
using it in common with other Cold Junction Compensation input, the 16 channels can be used not as the
Cold Junction but as the thermocouple input. (It changes with the jumper terminal in a card.)

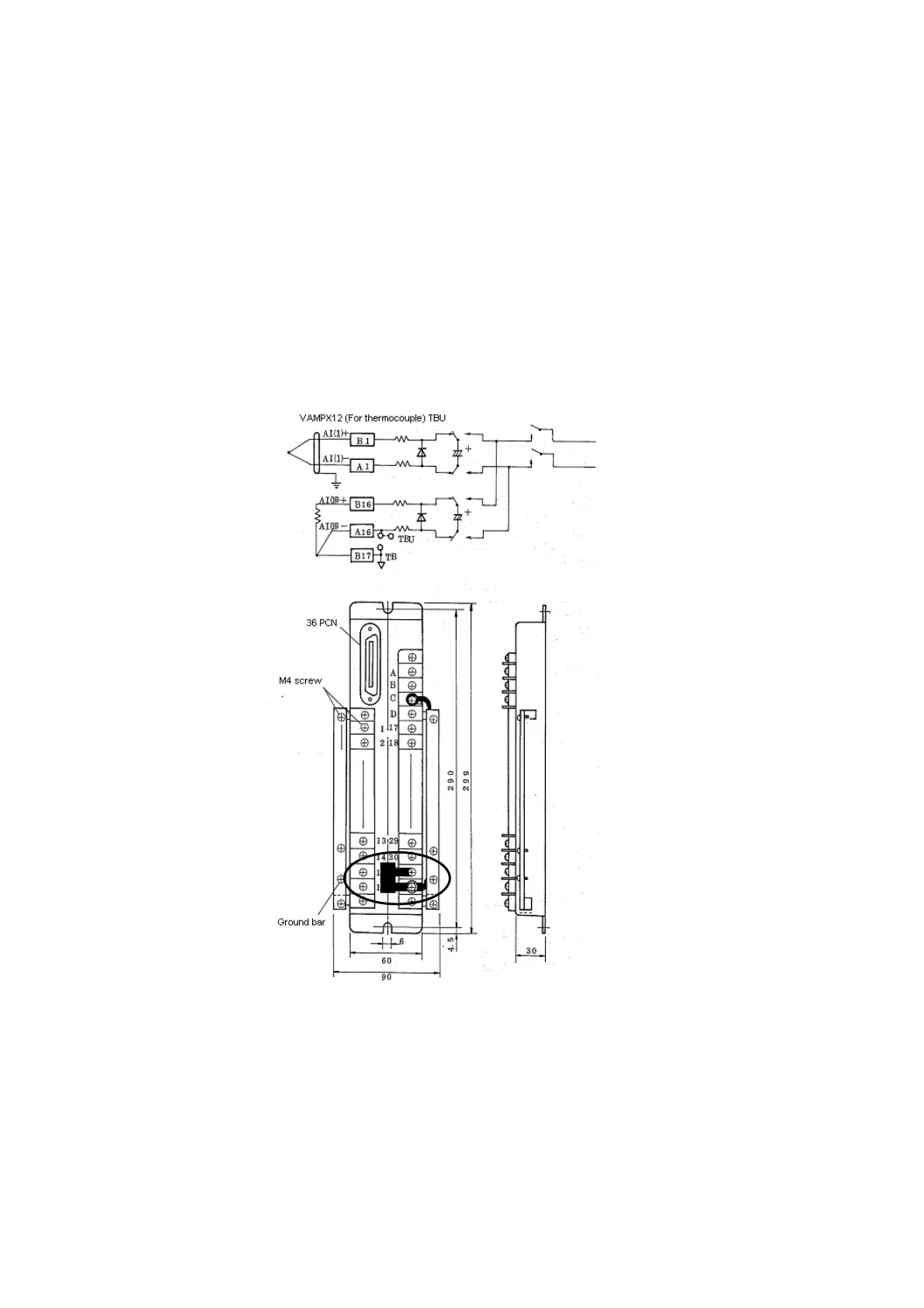

Figure A2.3 VAMPX12 and Terminal Unit
