Toshiba TOSDIC-CIE DS Manual

Appendix 1. Ethernet Control LAN Network Construction Guide
32
TX-SHUB
TX-HUB
Station
FX-TX
FX-TX
Twisted Pair Cable
Max: 30m
Twisted Pair Cable
Max: 3m
Optical Fiber
Max: 150m
Twisted Pair Cable
Max: 3m

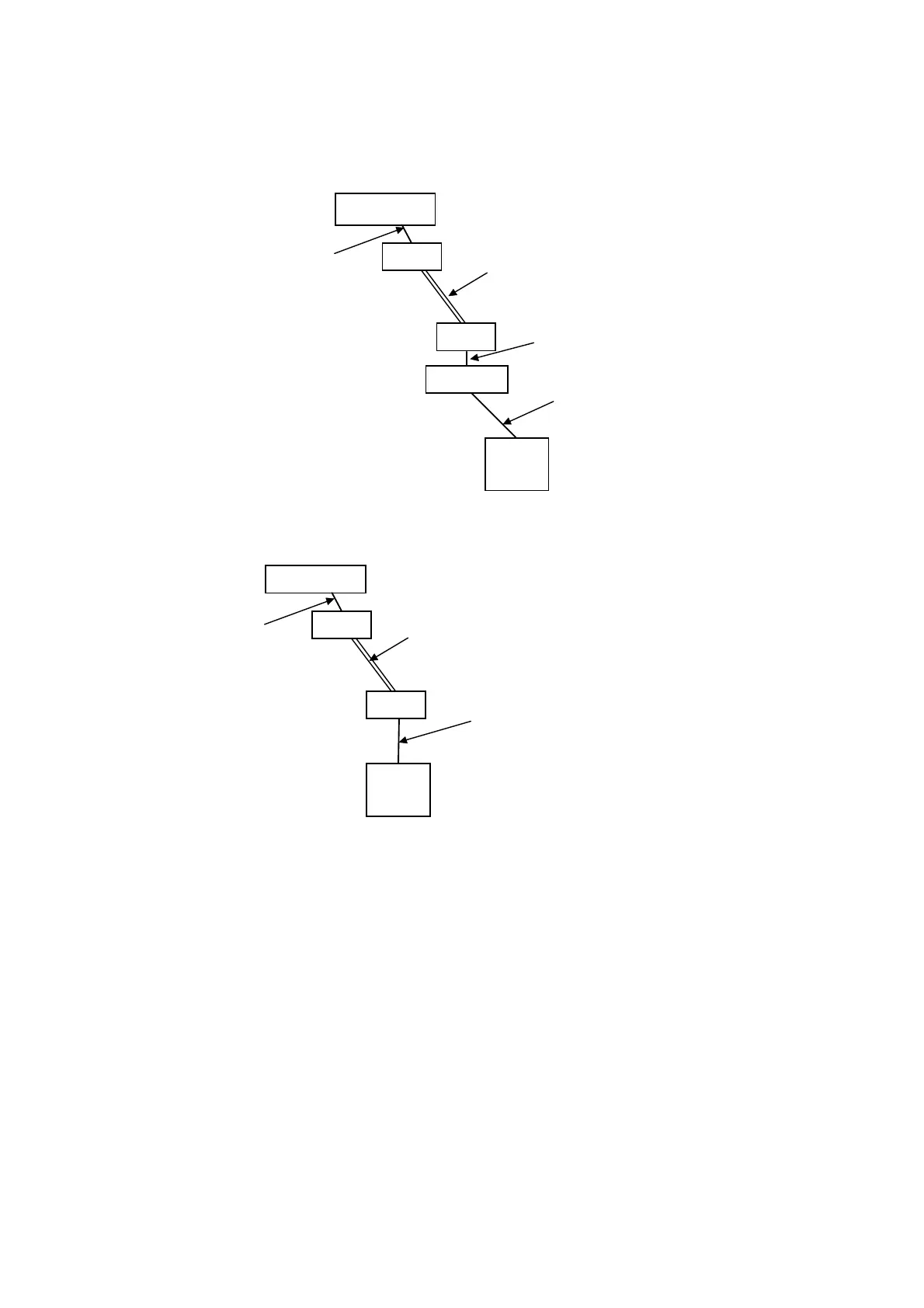

Figure A1.11 Connection Between Switching Hub and Hub via Optical Fiber
TX-HUB
Station
FX-TX
FX-TX
Note:
Only one station can be connected.
Other stations may be directly
connected to the TX-HUB.
Twisted Pair Cable
Max: 30m
Optical Fiber
Max: 150m
Twisted Pair Cable
Max: 3m
Figure A1.12 Connection Between a Hub and Station via Optical Fiber
