E6582051
- 14 -

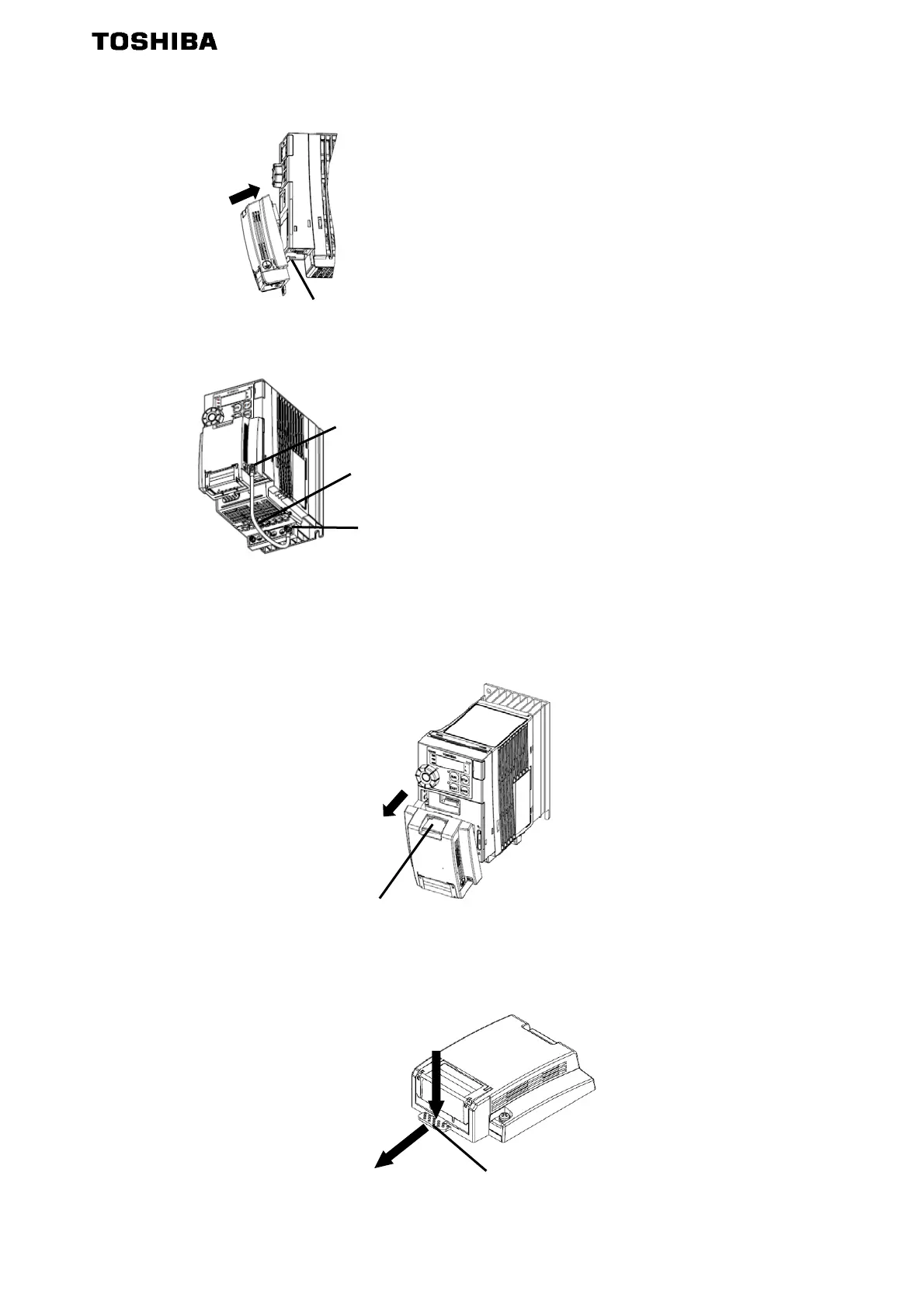

4. Hang the hook of option adapter on the control terminal cover.
Insert the connector in the direction of arrow
3.1.1.2. Earth wire wiring
3.1.1.3. Removing of option
1. Remove the connector in the direction of arrow while pushing the release tab.
2. Remove an option in the direction of arrow ② while pushing the release tab in the direction of arrow ①.
Connect attached grounding wire to grounding terminal of inverter.
Grounding terminal of inverter
Grounding terminal of option adapter
Recommended tightening torque: 0.5N m
Release tab
Release tab
Hook
①
②
