Toshiba Tosvert VF-S15 Function Manual

E6582051
- 6 -

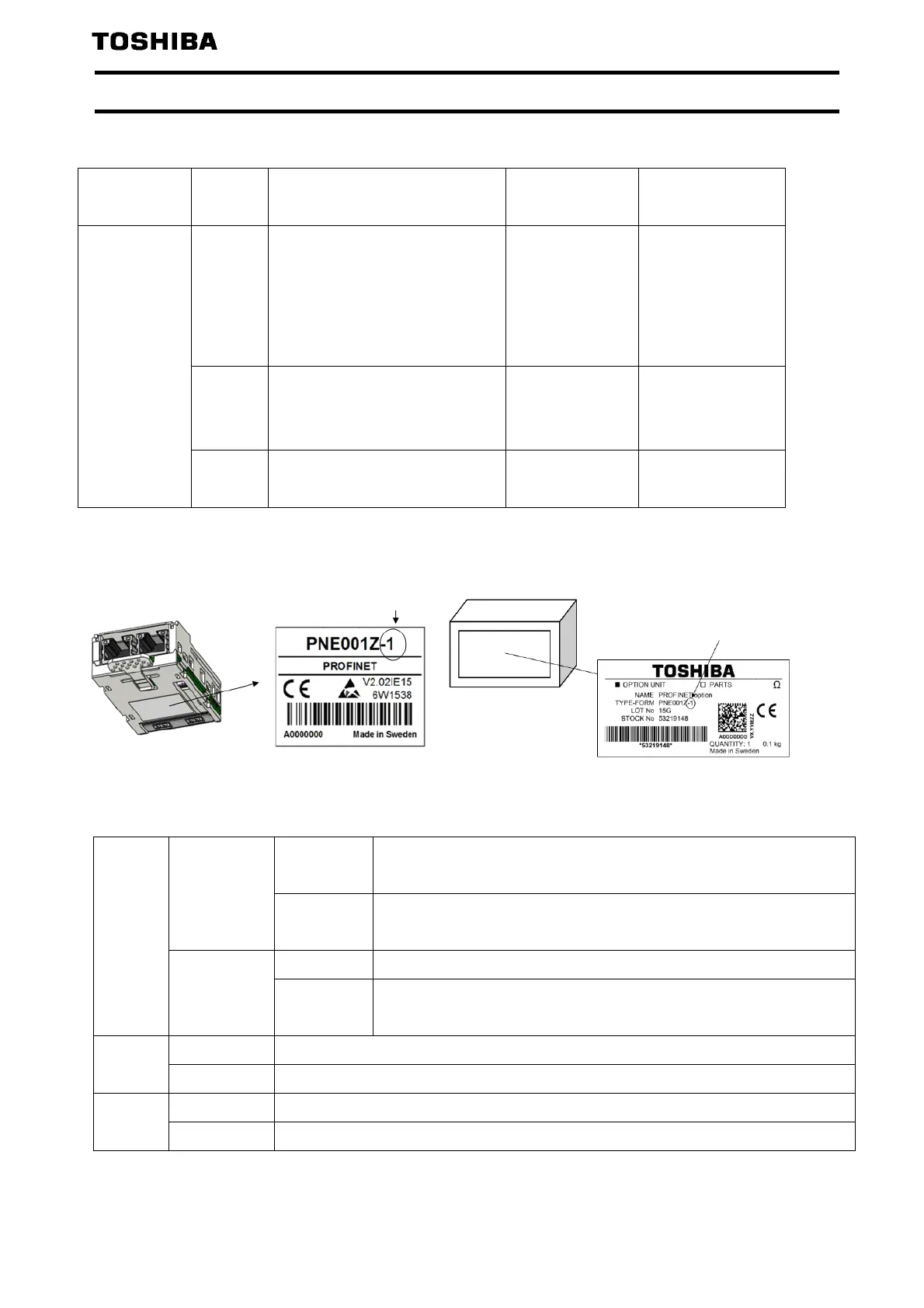

1. Combination of product version and GSDML file
It shows the differences by product version below.
Suffix can be checked by the labels on the product and the package.
Product label Package label
When PNE001Z is used, please use following GSDML file and image file.
As for acquisition of a GSDML file and an image file for VF-S15/AS3/MB1, please contact your Toshiba
distributor.
TYPE-FORM Suffix Applicable model Manufacturer-ID Support of JAVA8
of Web server
PNE001Z “-2” VF-S15
(CPU1 version 112 or more)
VF-AS3
VF-MB1
(
CPU1 version 116 or more
)
0x31A Supported
“-1” VF-S15
(CPU1 version 112 or more)
VF-
A
S3
0x31A Supported
None VF-S15
(
CPU1 version 112 or more
)
0x190 Not supported
VF-S15 GSDML file PNE001Z GSDML-V2.3-Toshiba-VFS15-20150127.xml
(
The product famil
y
information is displa
y
ed as "VF-S15".
)
PNE001Z-1
PNE001Z-2
GSDML-V2.31-Toshiba-VFS15_1-20170628.xml
(
The product famil
y
information is displa
y
ed as "VF-S15
_
1".
)
Image file PNE001Z GSDML-0190-00E0-VF_S15.bmp
PNE001Z-1
PNE001Z-2
VF-AS3 GSDML file GSDML-V2.31-Toshiba-VFAS3-20170614.xml
Ima
g
e file GSDML-031
A
VF-MB1 GSDML file GSDML-V2.31-Toshiba-VFMB1-20170614.xml
Ima
g
e file GSDML-031
A
Suffix
Suffix

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
