3. Hardware Setup
When using this product with VF-S15, sold separately VF-S15 option adapter (SBP009Z) is required.
3.1.
Mounting and removing
3.1.1. Mounting of option for VF-S15
Refer to [Optional external devices] of E6581611.
Warning
Mandatory
action
▼ The mounting/removing of option must be performed without supplying power(Turn off all
input power, wait at least 15 minutes, confirm that the charge lamp of inverter is no
longer lit). The inverter and option can become damaged.
▼ Do not use tool for the mounting/removing of option . The inverter and option can become
dama
ed.

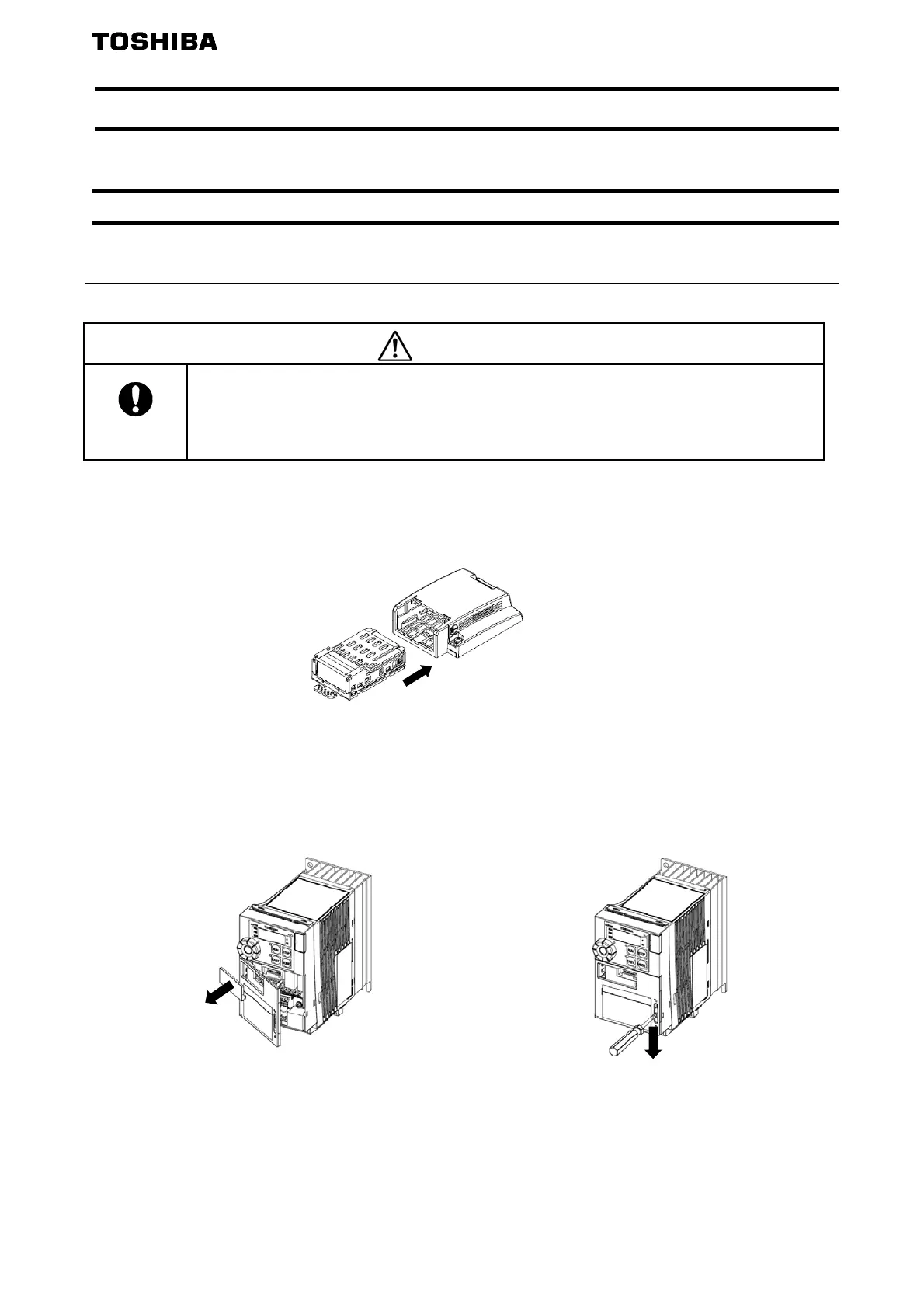

3.1.1.1. Mounting of option
1. Insert option into option adapter.
*Note: Mount option adapter to inverter after option insertion.
Insert the option straightly and slowly along the guide inside option adapter. Otherwise, the
connecter can become damaged.
2. Remove the option connector 3. Lock the control terminal cover.
cover on control terminal cover.
SBP009Z
To Next Page
