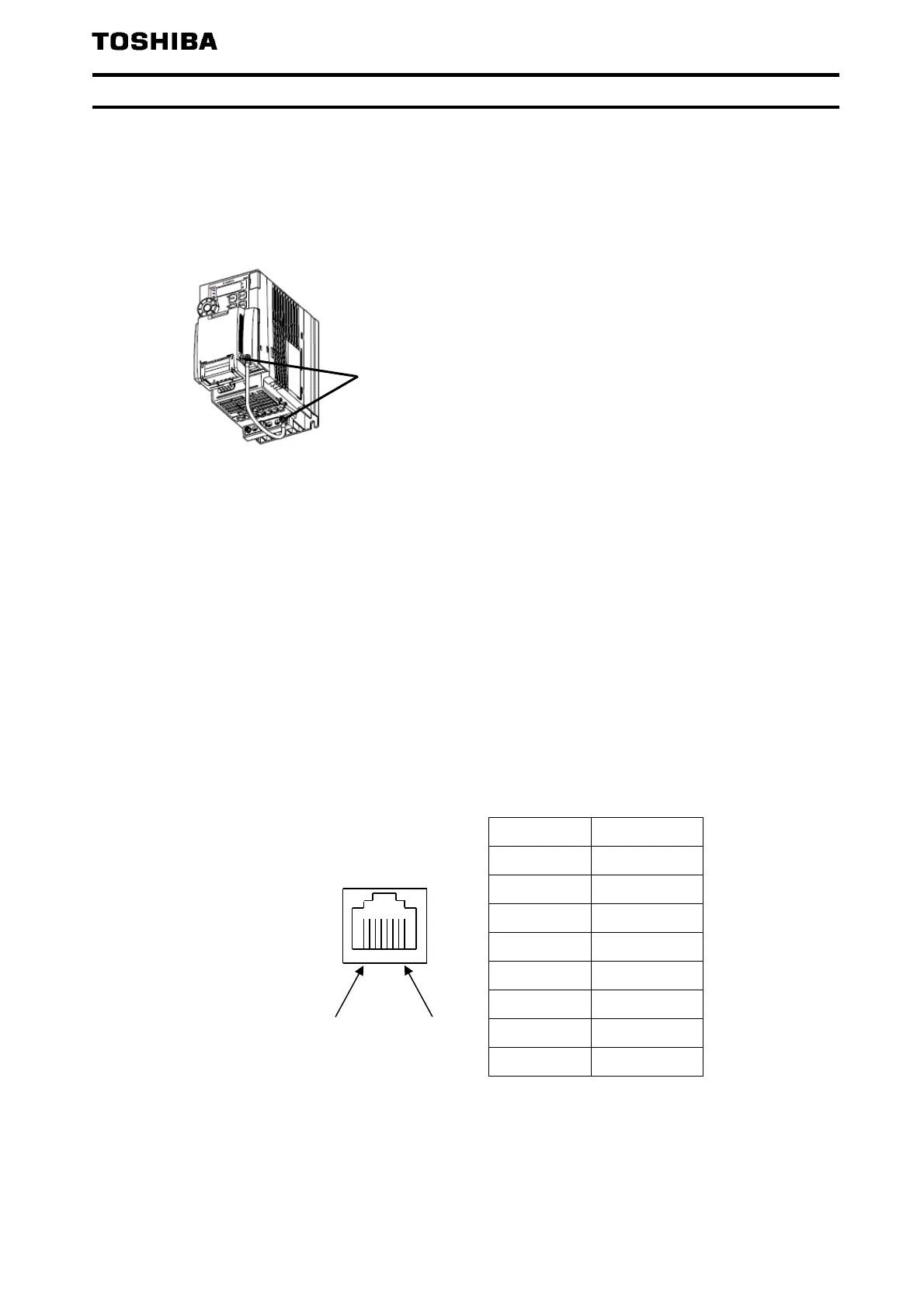

3.2.
Wiring
This product is equipped with dual shielded RJ45 connectors. The shielding of RJ45 connectors are
connected to the grounding terminal of inverter.
When you use this product with VF-S15, please connect the grounding terminal of SBP009Z to grounding
terminal of inverter by attached grounding wire.
When you use this product with VF-AS3/MB1, you do not need the ground line wiring. Because when you
attach this product to VF-AS3/MB1, Shielded RJ45 connector is connected to the ground terminal of the
inverter
Communication cable specifications
• CAT 5e or more
• Connector RJ45, non-crossover cable
• Shielded twisted pair cable
• Maximum cable length = 100 m (328 ft)
The following table describes the pin layout of RJ45 connecter.
Pin Signal
1TD+
2TD-
3RD+
4-
5-
6RD-
7-
8-
* Fix a cable so that a communication connector may be not taken the weight of wire.
8………………1
Port L and Port R
Connect the grounding terminal by grounding wire.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
