E6582051
- 30 -
5.3.1. Tolerance Range (ZSW Bit 8)
If the setpoint is changed:
1. ZSW Bit 8 is set 0
2. Calculate the tolerance.
3. Start the timer which will time-out based on parameter Tmax.
This product checks that the timer (Tmax) has not timed-out and if the actual value is within the tolerance.
If both conditions are fulfilled ZSW Bit 8 is set 1 and the timer is stopped.

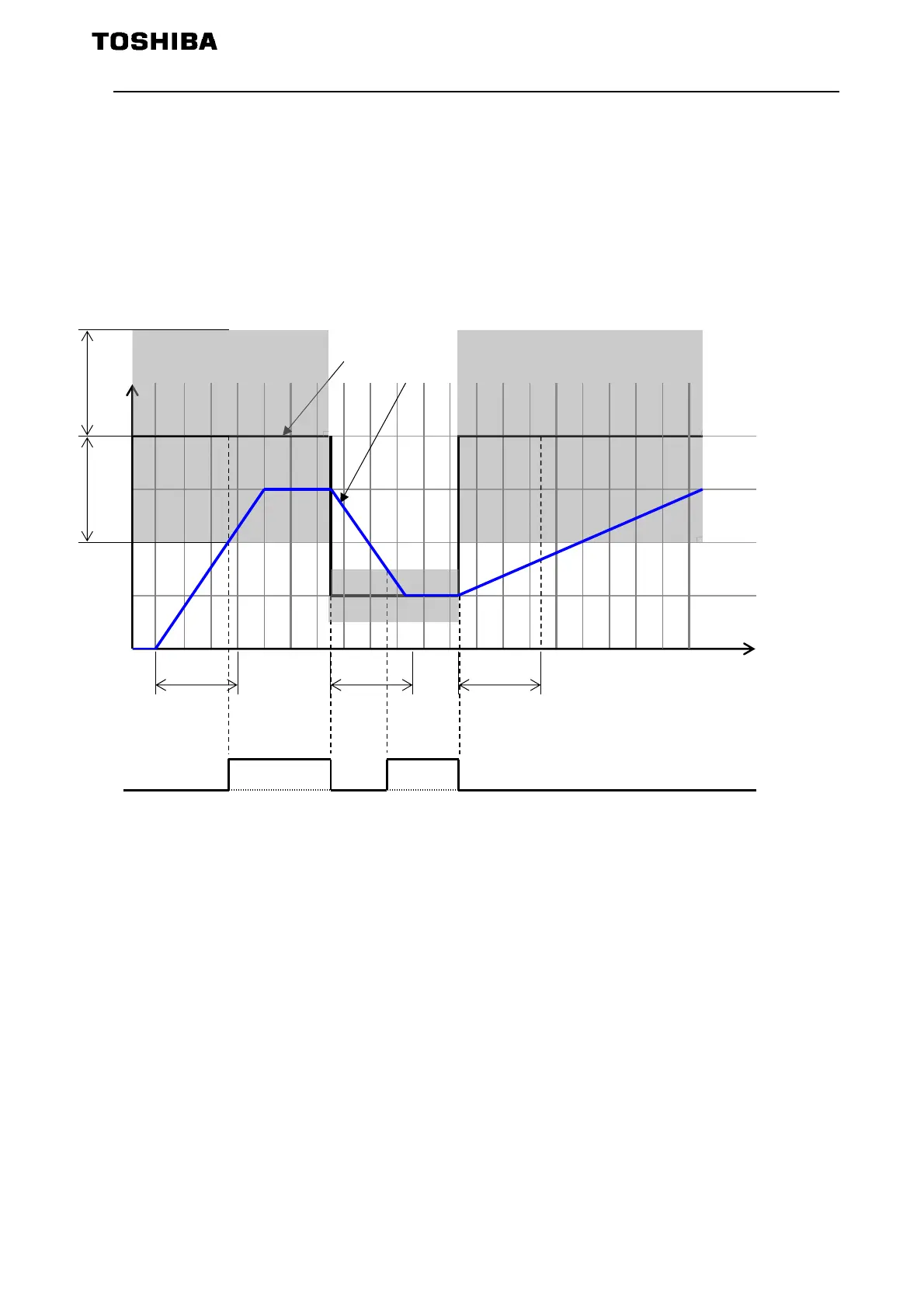

The figure shows ZSW 8 when Tolerance (
c157
) is 50% and Tmax (
c151
) is 3s.
Actual value
Setpoint
HIW = 0x4000
HIW = 0x3000
HIW = 0x1000
HIW = 0x0000
HIW
HIW = 0x2000
20s 25s 30s15s
Tolerance
= HIW ± (HIW * 50%)
Time
ZSW Bit 8
Tmax
= 3s
Tmax Tmax
