Toshiba Tosvert VF-S15 Function Manual

E6582051
- 69 -
Notes:

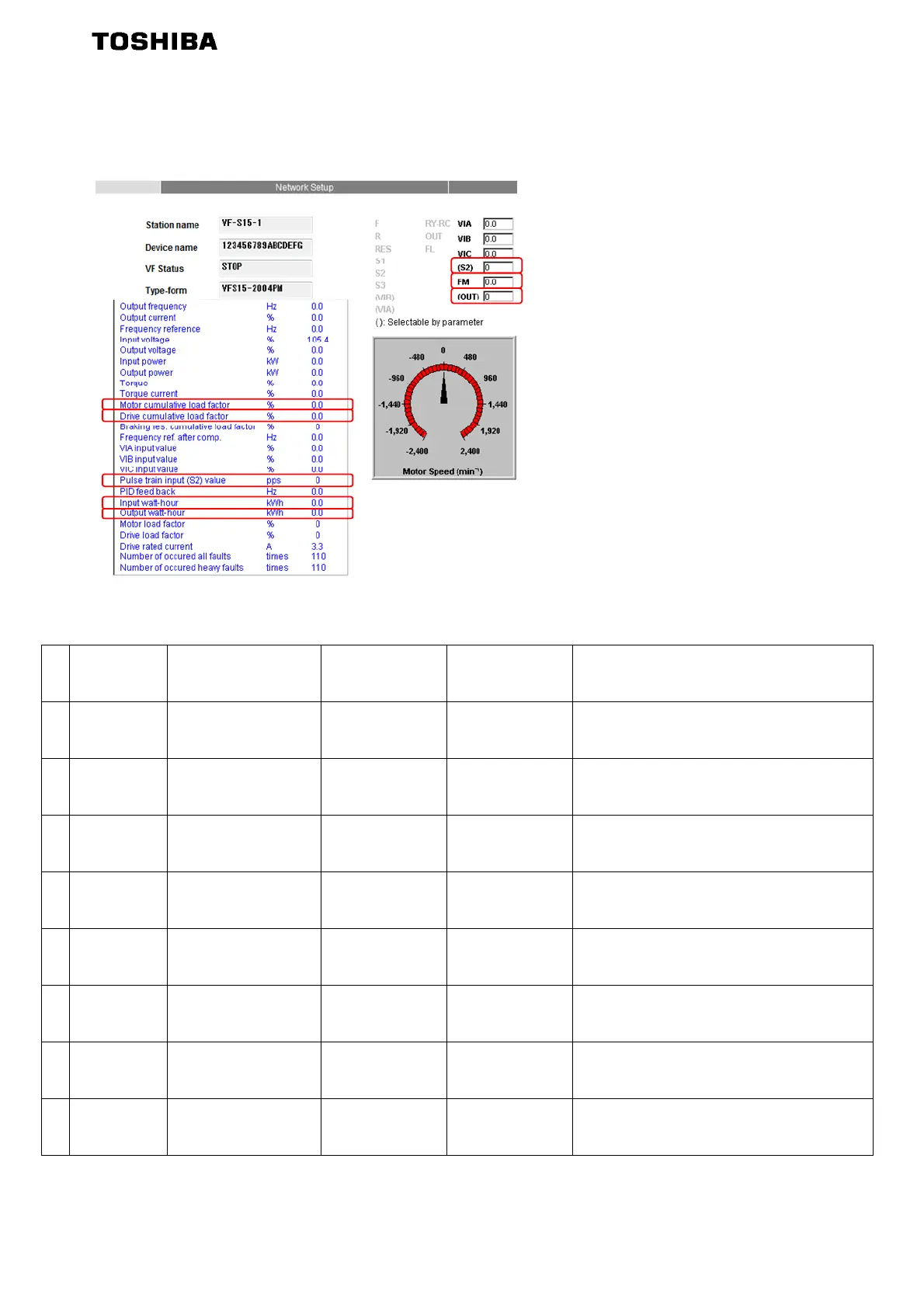

There are problems of display on the Drive Monitor in PNE001Z (no suffix).
These problems are corrected in PNE001Z-1,-2.

①
②
④
⑤
③
⑥
⑦
⑧
Display title Problem Example of the
display
(
Wron
g
data
)
Example of the
display
(
Correct data
)
Countermeasures
①
Motor
cumulative
load factor
The value is
displayed in 1/10
times
6.8 67.9 Please calculate the value at 10 times
②
Drive
cumulative
load factor
The value is not
displayed
correctl
y
1.3 45.7 About Inverter cumulative load factor(%) ,
please check the information by the key
pad etc.
③
Pulse train
input (S2)
value
The value is
displayed in 1000
times
1920 1.9 Please calculate the value at 1/1000
times
④
Input
watt-hour
The value is
displayed in 1/10
times
1.2 12.3 Please calculate the value at 10 times
⑤
Output
watt-hour
The value is
displayed in 1/10
times
3.2 32.1 Please calculate the value at 10 times
⑥ （S2）
The value is not
displayed
correctl
y
0.0 1920 About Pulse train input value (pps) ,
please check the information by the key
pad etc.
⑦
FM The value is not
displayed
correctl
y
97.0 97.6 About FM output value (%) , please
check the information by the key pad etc.
⑧ （OUT）
The value is not
displayed
correctl
y
9.0 9.9 About Pulse train output value (pps) ,
please check the information by the key
pad etc.
There is a problem in the display of the above ① - ⑧.
The followin
g
table shows an exam
p
le of the dis
p
la
y
and countermeasures.

Toshiba Tosvert VF-S15 Specifications

General

Category	Inverter
Control Method	V/f control, Sensorless vector control
Cooling Method	Forced air cooling
Model	Tosvert VF-S15
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overheat
Communication Options	Modbus RTU
Overload Capacity	150% for 1 minute
Braking Unit	Built-in braking transistor
Output Voltage	3-Phase, same as input voltage
Operating Temperature	-10 to +50°C (14 to 122°F)
Storage Temperature	-20 to 65°C (-4 to 149°F)
Humidity	5 to 95% RH (non-condensing)
Altitude	Up to 1000m above sea level
Input Voltage	3-Phase 200 to 240 VAC, 3-Phase 380 to 480 VAC
Weight	Varies depending on model (e.g., 0.8 kg to 16 kg)
