4.11 MOUNTING INSTRUCTIONS

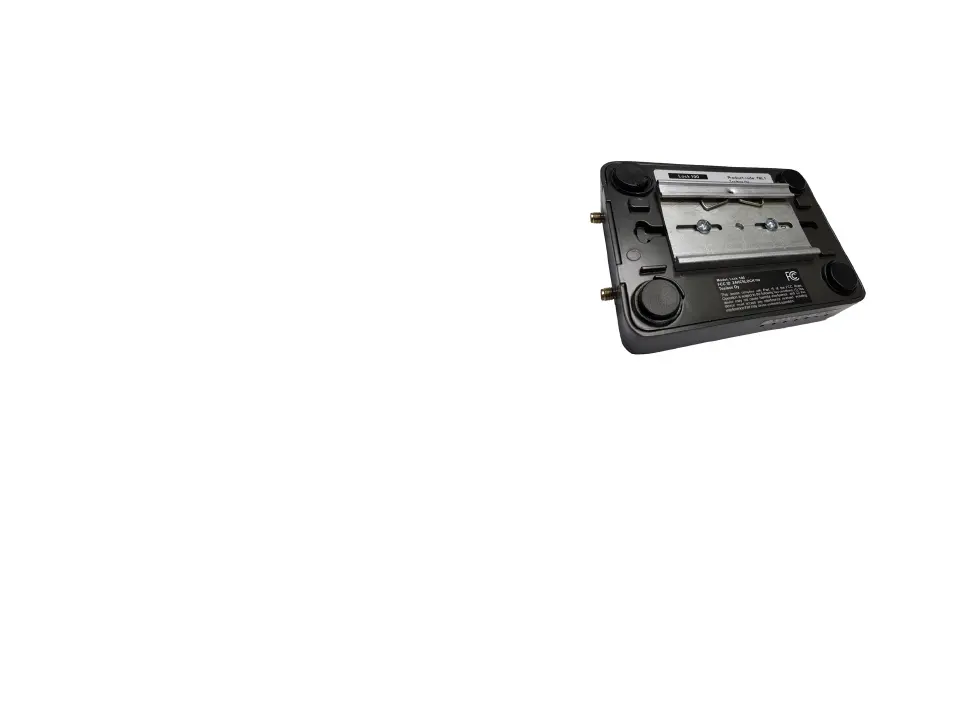

LOCK 150 QUICK INSTALLATION TO DIN RAIL
quick installation to DIN rail with the LAN/WAN ports facing
upwards.
LOCK 150 SECURE INSTALLATION TO DIN RAIL
is needed or another installation orientation is wanted, the
included in the sales package. There are M4 threaded
has the hole locations indicated. Use only the screws
included in the sales package. Using longer screws pose
a risk of damaging the device internal electronics. More
versatile installation options to DIN rail, such as angle
LOCK 150 WALL MOUNTING
countersunk screws.
