Operating the Lift – cont.
Advanced Automation Controls
RS232 Controls
The Touchstone SRV PRO TV Lift can also be controlled by third-party automation systems via a RS232 serial

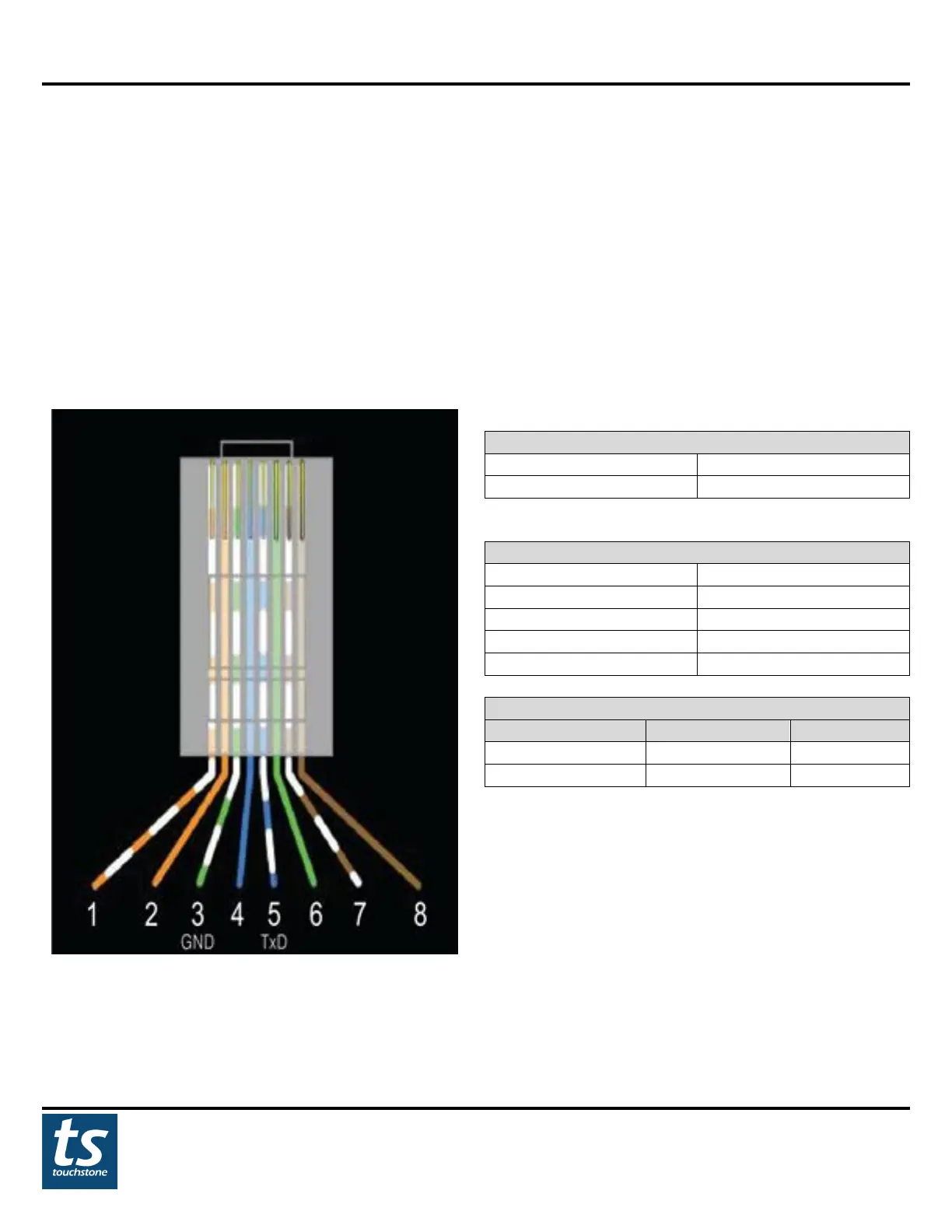

connection. The input connector on the control box uses a standard RJ-25 connection, The pinout of the connector
is illustrated below. The instruction set is also listed in the tables below.
RS-232 is a standard communication protocol that is widely used to connect various devices to external controllers.
Automated theater systems, such as Crestron and Control4, for example, can be connected to the control box via
the RS-232 connection, and a single device can operate the TV, raise the lift, operate AV systems, etc.
Note: Once Lift memory height has been set, the UP
ACTION will only raise the lift to the set height.
