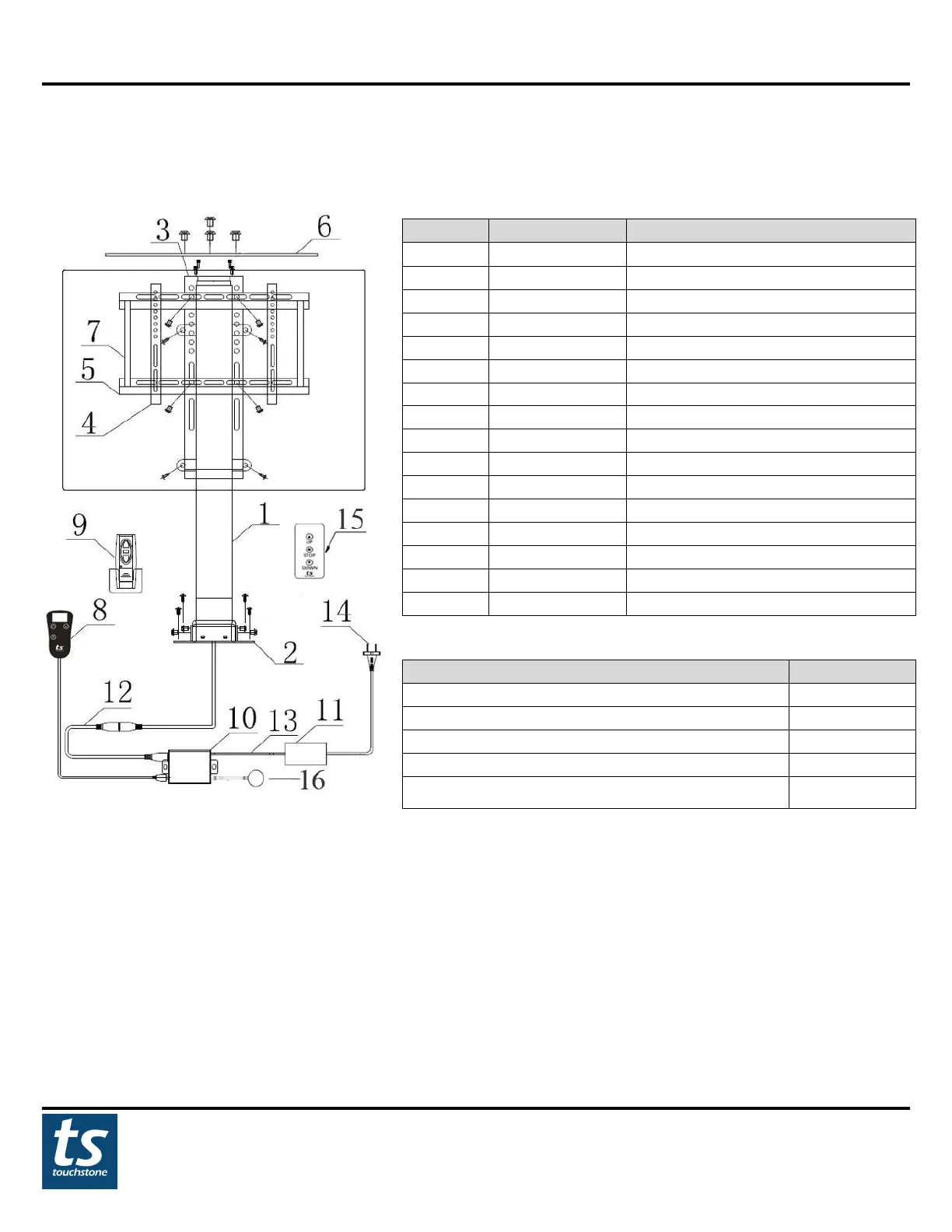

Lift Components & TV Installation Hardware
Components
Lift Parts
Number
Part Number
Part Name
1
32800, 33900
Lift Column
2
32809
Lift Base
3
n/a
TV Mounting Plate
4
32810a
TV Mounting Brackets
5
32810b
Horizontal Flat Panel Brackets
6
n/a
Flat Top Lift Mount
7
32810c
Vertical Flat Panel Bracket Rods
8
32802
Wired Handset Control
9
32803
Wireless RF Remote
10
32801, 33901
Control Box
11
32806
Power Supply
12
n/a
Control Box-Lift Transit Line
13
n/a
Power Supply Transit Line
14
32807
Power Cable
15
32804
IR Remote
16
32805
IR Sensor
Accessory Package
Part
Quantity
M8 Bolts
8
ST5 x 15 Bolts
9
M8 x 20 Bolts and Nuts
4
ST6 x 15 Bolts
4
ST3 x 8 Bolts
4
Hardware
- TV Mounting Screws
-> Please consult your TV manufacturer for the size and length of the mounting screw for your TV.
Included is a basic set of mounting screws that accommodates most LCD/Plasma TVs. Depending on your
television, the screws included in the kit may not fit your television. If that is the case, these screws can be
purchased at most hardware/home improvement stores.
Tools
In order to assemble the SRV PRO TV Lift, you will need the following tools:
- Philips-head screwdriver - size 5 metric hex wrench (included)
- size 4 metric hex wrench (included) - adjustable wrench or size 4 and size 5 metric socket wrench
