Touchstone 32800 - Locking TV to Flat Panel TV Mount

SRV PRO TV Lift
www.touchstonehomeproducts.com 800.215.1990
rev. 20190312
24
Locking TV to Flat Panel TV Mount
Once the TV is mounted to the lift, the TV can be locked to the flat panel TV mount so that the TV does not slide
from side to side. To lock the TV into place, tighten the 2 long screws on the bottom of each TV bracket. The
screws will tighten so that they lock against the bottom crossbracket of the flat panel TV mount.

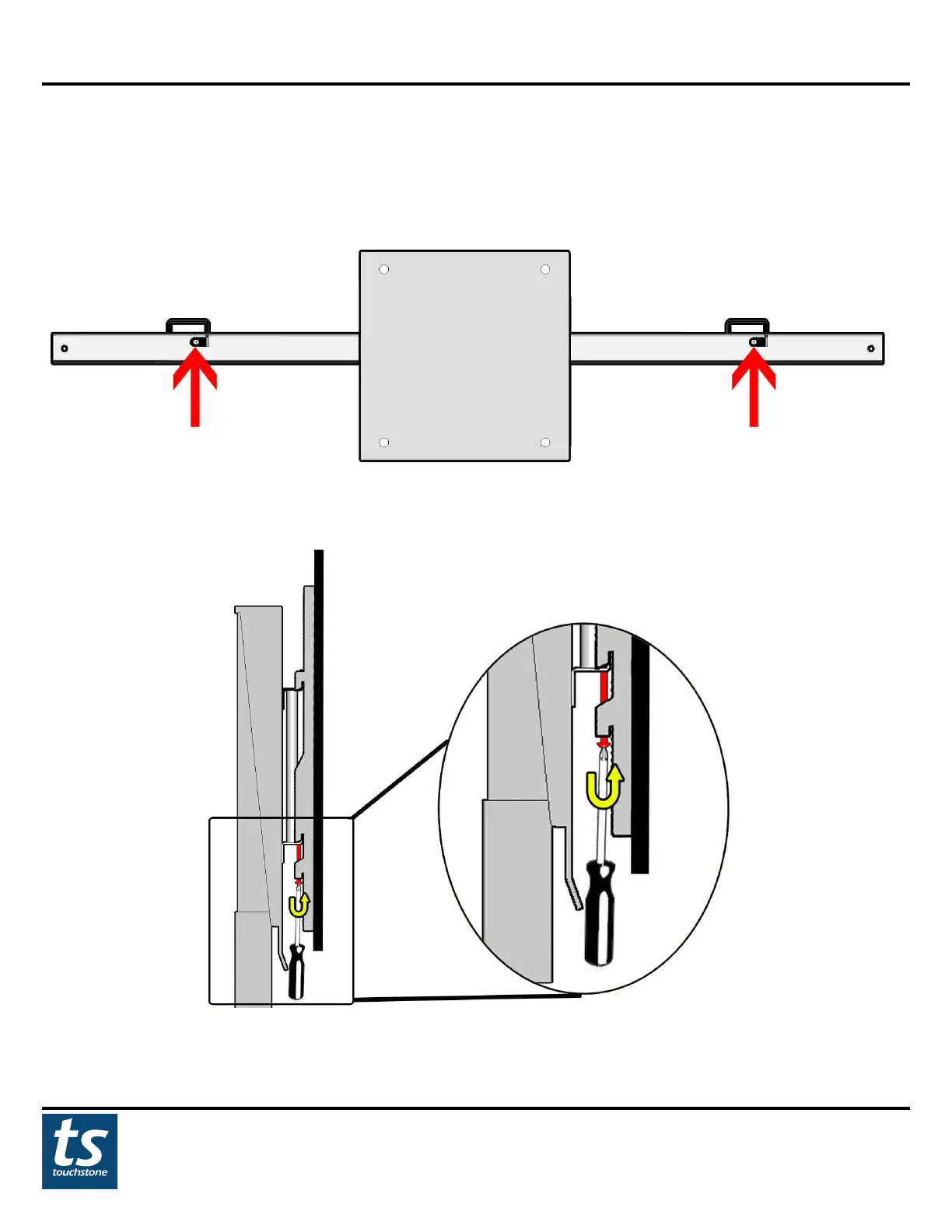

(view of locking screws from underneath TV)
Turn both screws to lock the screw against the bottom bracket of the flat panel TV mount.
