Installing C Bracket and Flat Top Lid Mount
The SRV PRO TV Lift includes an adjustable bracket (C bracket) and flat top lid mount for mounting cabinet lids
to the top of the lift. Once the TV is mounted on the TV, the C bracket and flat top lid mount can be installed.
Parts Required:
C Bracket
Flat Top Lid Mount
Tools Required:
- Hex wrench
- Philips-head screwdriver
Instructions:

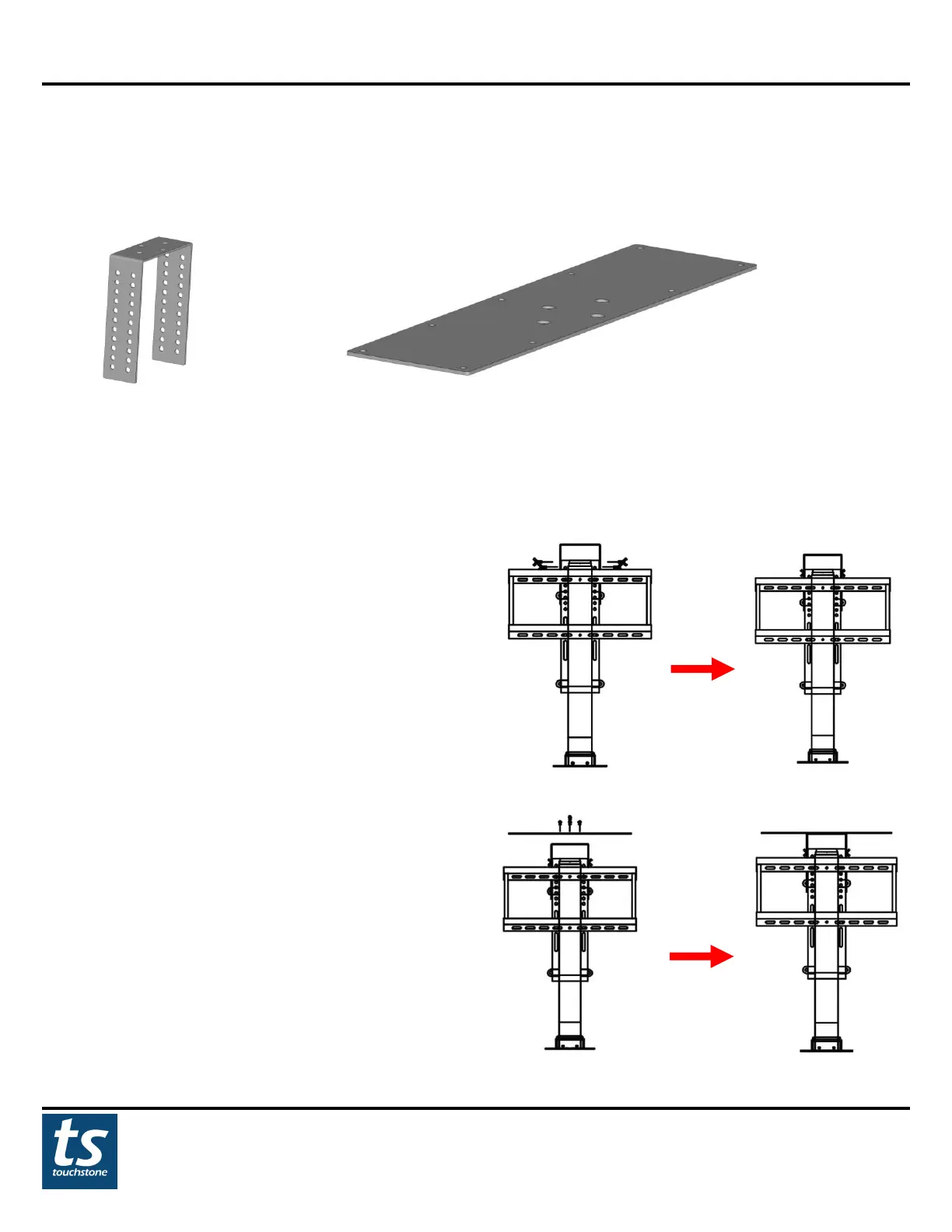

1. Attach the C bracket to the lift using the 8 M8 screws
provided (figure a). Set the height of the C bracket to a
level that is above the top of the TV (figure b).
Figure A Figure B
2. Once the C bracket is fastened to the lift, attach the
Flat Top Lid Mount (figure a) to the top of the C bracket
using the 4 Philips head screws provided (figure b).
Figure A Figure B
