Attaching TV Mounting Brackets To Flat Panel TV- cont

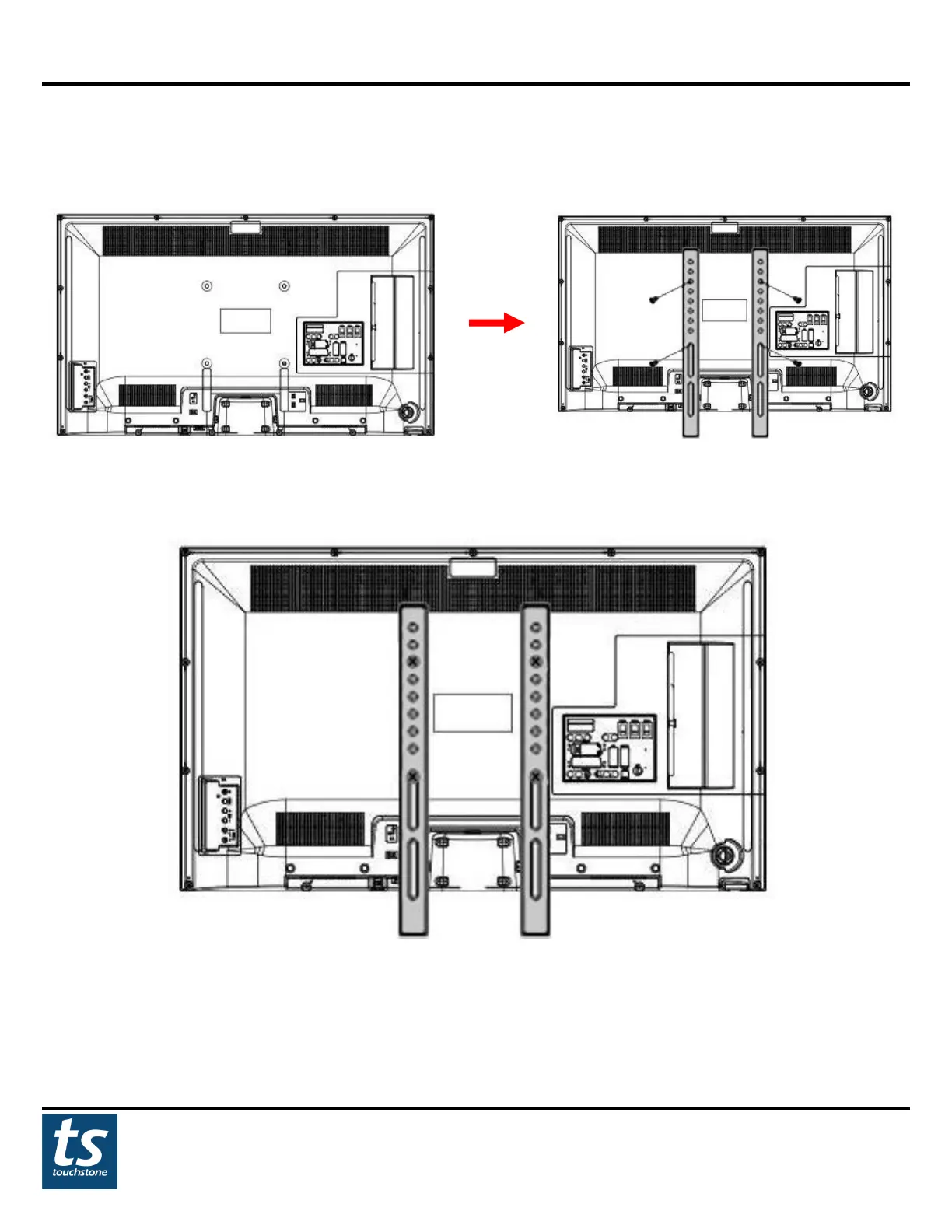

3. Align TV mounting brackets so that brackets are centered on the back of the TV. Place the TV mounting bracket
so that the round holes are toward the top of the TV, while the elongated holes are toward the bottom of the TV.
4. Attach TV mounting brackets to back of TV. Consult your TV owner’s manual for the proper size mounting
screw.
