tousek ST 61A User Manual

- 10 - tousek / EN_ST-61A_08 / 25. 03. 2020
3. Swing gate control ST 61A ST 61A
Attention
During connection, adjustment and maintenance works
please take care, that the electronic circuit board won t be
damaged by moisture (rain).
components of the control board
(K) connection terminals
(D)
Display connection (with buttons +, -, ESC, ENTER)
or TC-/TSI-connection ( optional „tousek-connect“ /
„tousek-service-interface“ )
(E) System plug for optional module drop bolt or electric
lock / magnet (

page 26)
(VE) 230V a.c. for electric lock/magnet module
(B) term. 88/89: for tra󰀩c light control connection STA11
(ZM) slot for optional module „status display“
(

page 25)
(T) transformer
(F1) fuse 6,3A F

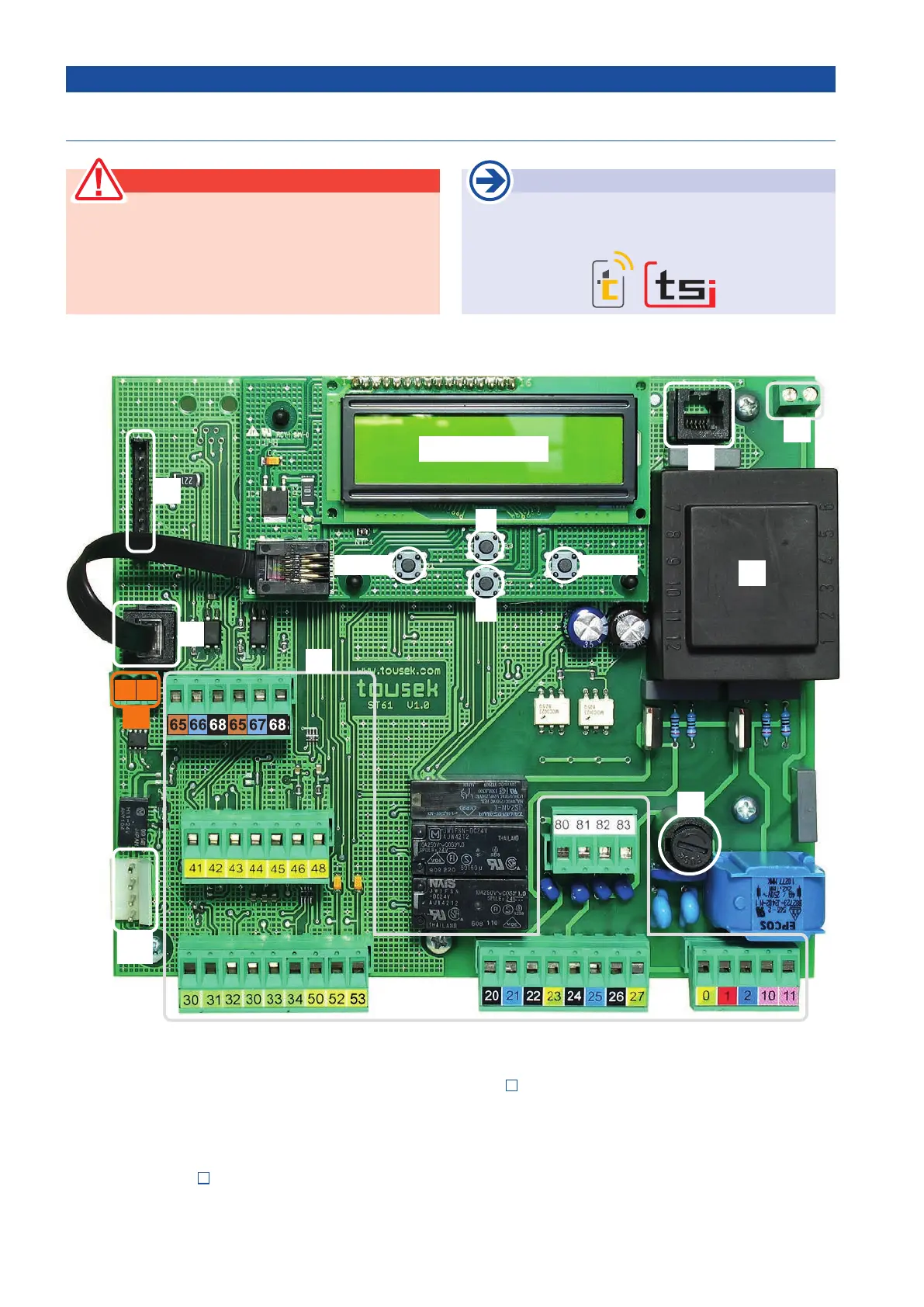

Control board overview
fe
–
ESC ENTER
+
Display
TR
D
F1
ZM
K
B
E
VE
88 89
Important
The optional „tousek-connect“ or the „tousek-service
interface“ must be connected with socket (D)!
Not with (E) !
