tousek ST 61A - 4 Putting into Operation

- 30 - tousek / EN_ST-61A_08 / 25. 03. 2020
factory settings
setting OPEN cannot
be changed.
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
impulse button
3
3
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
OPEN
change ? YES
conrm
OPEN

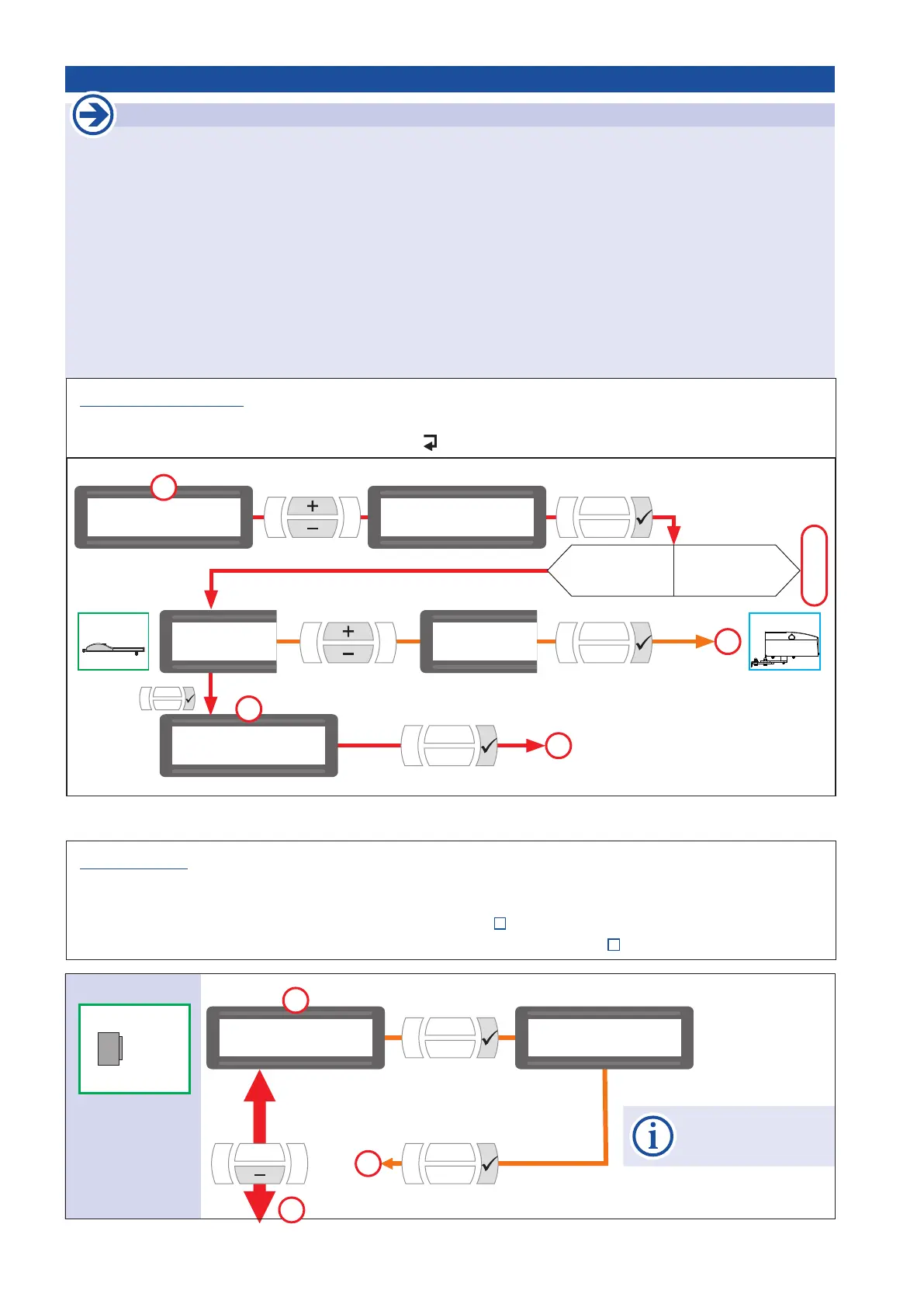

4. Putting into operation Swing gate control unit ST 61A
Important: preparation works
• Connect control panels, safety devices to the motor under the safety regulations in .
Attention: if no stop switch is connected then the terminals 30/31 have to be bridged.
• The mechanical limits have to be placed so that contact edges are not triggered, as this would lead to an
error message
• Unlock emergency release of operator and set gate to half-opened position. Then lock the operator again
• Then turn on the operator (correct connection necessary).
• Important: Putting into operation in Impulse mode (standard setting) and not in dead man mode.
• During initial operation the choice of language and operator (SWING X or SPIN 250) is made rst, then in the “Basic
settings” the adjustment of most important operator settings and after the system test, the automatic detection of limit
positions of gate is made.
LANGUAGE SELECTION
• Can be selected during initial operation (hence after reset to factory settings).
• Can be also chosen by pressing the ESC button
( ) for 5s, from any position in menu.
BASIC SETTING
• For setting the most important adjustments for initial operation of motor.
• Can be selected during initial operation (hence when restoring the factory setting).
• All safety devices are activated when leaving factory (menu

page 13).
• The next programming adjustments are made in the main settings menu (see

12–13).
return
to previous location
putting into operation
(same step after
factory reset)
5s ESC
(language selection)
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Sprache-language
Deutsch
1
conrm
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
Sprache-language
English
scroll
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
basic settings
conrmation
3
2
SWING X
SPIN 250
change operator conrm
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
operator
SWING X
$$$$$$$$$$$$$$$$
$$$$$$$$$$$$$$$$
operator
SPIN 250
2
OK
4
