tousek ST 61A User Manual

- 12 - tousek / EN_ST-61A_08 / 25. 03. 2020
–
ESC ENTER
+
Display
• The programming menu is divided into „BASIC SETTINGS“ and the „MENU CONTROL“.
BASIC SETTINGS
• When programming the control the rst time, you enter the „BASIC SETTINGS“.
• Here the necessary adjustments for operation of the gate facility are made.
• Entering the menu control (for extended programming) is possible by selecting „MENU CONTROL“
MAIN MENU CONTROL
• The next time you will directly enter „MENU CONTROL“. (The BASIC SETTINGS are skipped.)
• The menu control contains all possible adjustments.
In the folloleaf the single menu points are marked as shown below:
 = possible adjustment (or value assignment)  = factory setting  = status display
G
marks the menu points which are contained in the BASIC SETTINGS

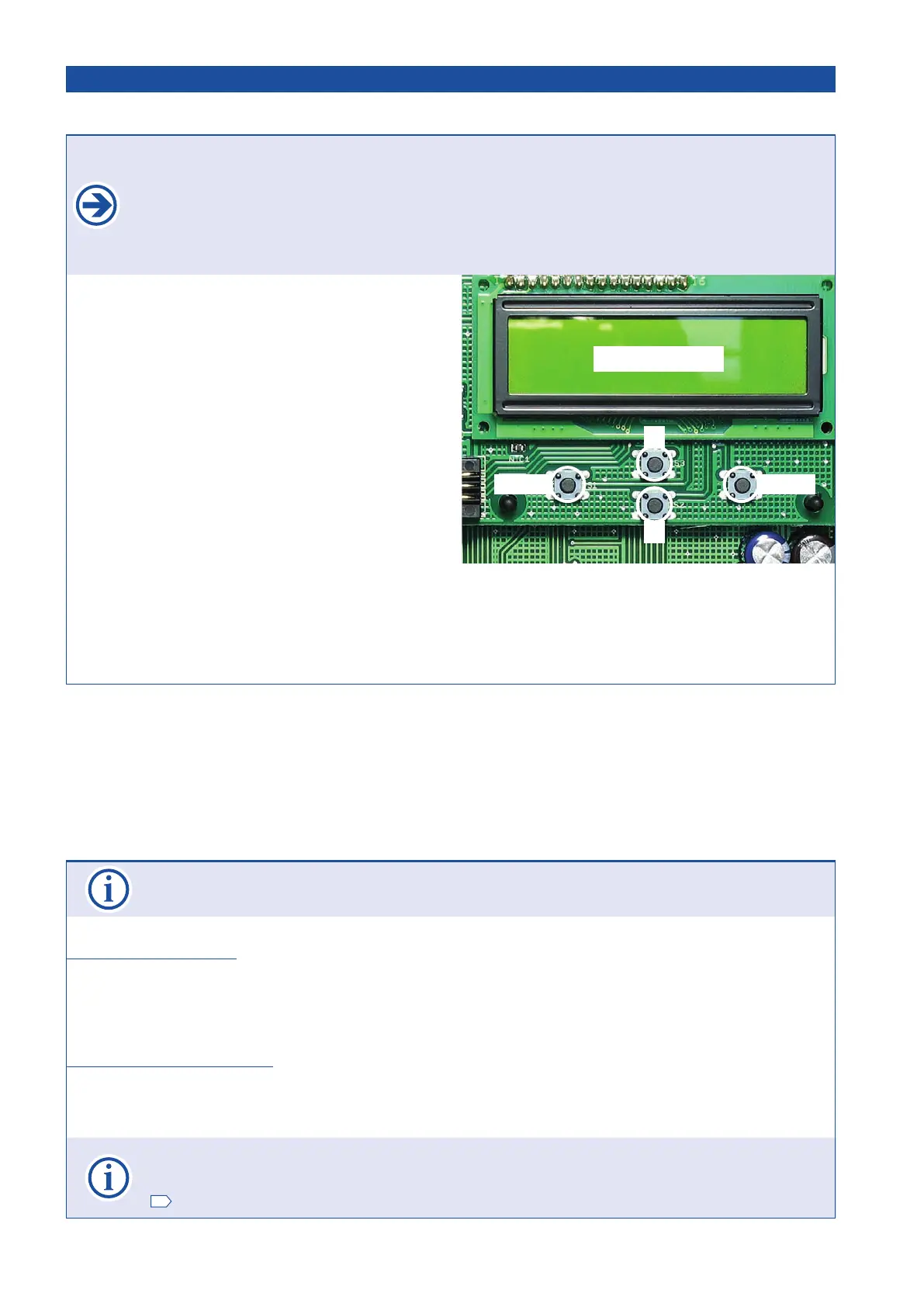

Programming buttons Adjustments - Overview
• The adjustment (programming) of the operating parameters is carried out via four programming buttons and
the text display.
• Before you can start programming, select the language of the display. You can do this by pressing the + or -
and choose the language for the menuas and press ENTER.
• Note: The language setting can be changed any time by pressing the ESC button for 5s.
•
Before you can start programming, you have to select the operator (SWING X or SPIN 250).
• The text display informs you on the operating modes,
selected menus and adjustment of several parameters.
• The programming of the control is done through four but-
tons (+, -, ENTER and ESC).
• Scrolling through the di󰀨erent menu points (up/down) and
changing a parameter (increase/decrease) is done with
buttons + and - .
AUTO-COUNT: When a button is pressed and held, an
automatic scrolling of the menu (or change of the param-
eter) is carried out.
• By pressing the ENTER-button you enter the displayed
menu point or memorise the shown value of a parameter.
• By pressing the ESC-button you return to the superior menu point. Changed adjustments of a parameter are rejected
with this button (the original value is kept).
• AUTO-EXIT: If during programming no button is actuated for 1 minute or longer, the programming mode is left automati-
cally. The control is set „ready“ without storage of possibly changed values.
Programming menu Adjustments - Overview
3.2 Adjustments - overview Swing gate control unit ST 61A
