tousek ST 61A - 1 Notes, General Characteristics, Technical Data ST 61 A and STA 11

- 4 - tousek / EN_ST-61A_08 / 25. 03. 2020
Tra󰀩c light control STA 11
B
88 89
1. General information swing gate control ST 61A and tra󰀩c light control STA11
Control board features
Swing gate control ST 61A:
• suitable for swing gates with electromechanical operators
SWING X and SPIN 250, 230V (1 or 2 gate leafs) with inte-
grated sensor.
• easy programming by menu navigation
• leaf delay adjustable at opening and closing
• automatic closing with adjustable pause time
• travel time of both operators will be adjusted automatically
• separately adjustable softstop time of both operators(no
loss of force even with reduced speed).
• safety system ARS (autom. reversal system)
• integrated evaluation of safety sensing edges
• self-monitoring of photocells
• self-diagnosis display
•
optional module: “electric lock /magnetic clamp” or “drop bolt”
• slots for optional modul and radio receiver
Trac light control STA 11:
• connection possibility of two impulse switches or induction
loops for green request and two red/green tra󰀩c lights 230V,
60W (inside and outside)
• connection slots for optional radio receiver and induction
loop detector
•
Control board ST 61A
General notes
• swing gate control ST 61A and tra󰀩c light control STA11 are
available together in a steel cabinet or separate in plastic
enclosures IP 54.

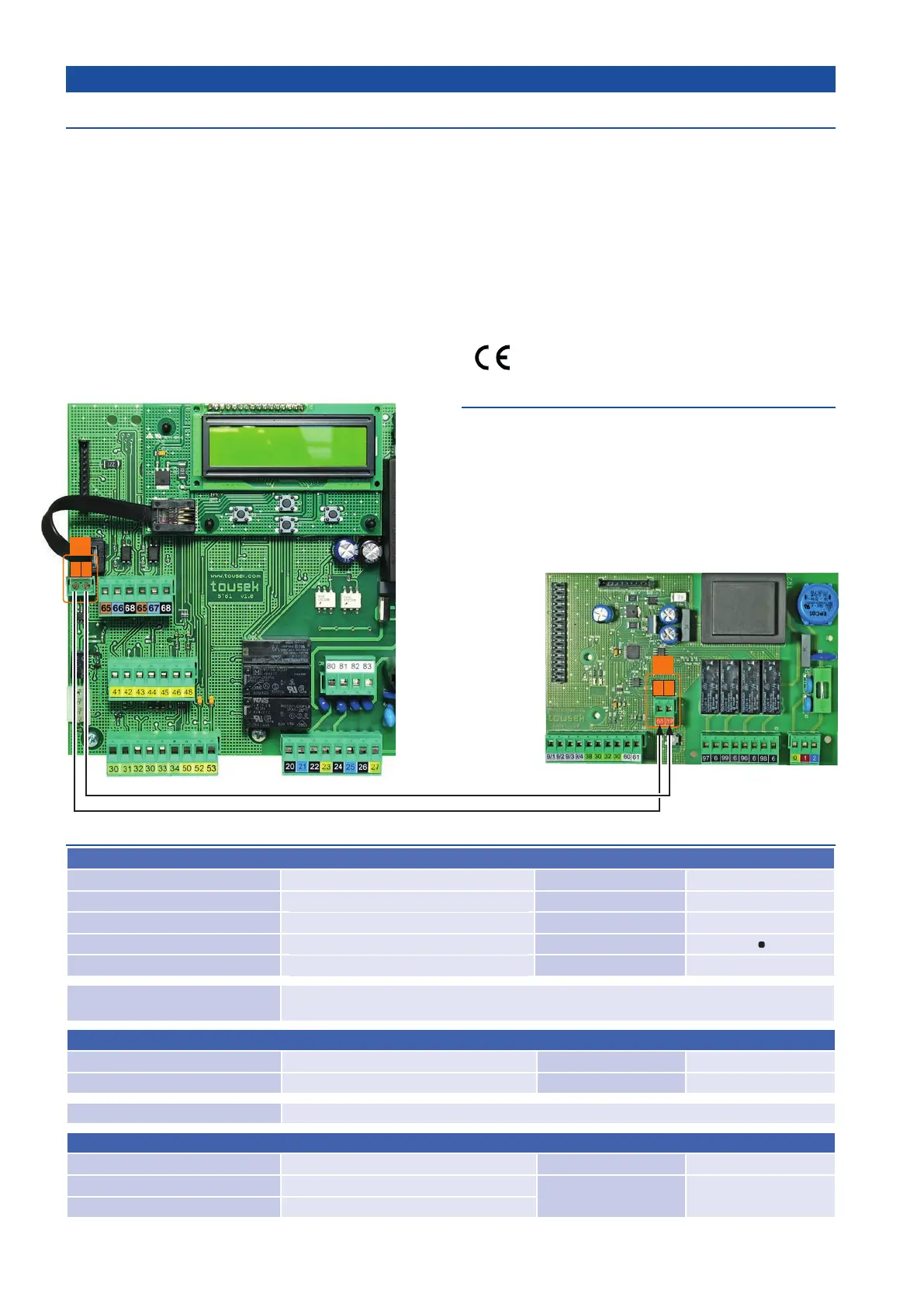

• for the implementation of the tra󰀩c light system, the tra󰀩c
light control board STA 11 is connected via a bus system
with the swing gate control board ST 61A (prewired in steel
cabinet).
B
88 89
Bussystem Low
Bussystem High
Technical data
Swing gate control ST 61A in plastic enclosure IP 54 (210 x 310 x 125mm)
power supply 230V a.c., +/-10% 50Hz magnetic clamp output optional 24Vd.c.
motor output
2 x 500W, 230V a.c. ambient temperature - 20°C bis + 70°C
ashing light output
230V AC, 40W protection class IP54
electric lock output
optional 12Vd.c. or 24V d.c. speed sensor
photocell output 24V a.c. article no. 12120340
optional equipment
pluggable radio receiver • additional module for courtyard/control lamp • Additional module for
gate status evaluation • E-lock/magnet module • radio transmission system TX 310
Swing gate control ST 61A and tra󰀩c light control STA11 in steel cabinet IP 66 (380 x 300 x 150mm)
power supply 230V a.c., +/-10% 50Hz protection class IP 66
other technical data see above
article no. 12120340
integrated equipment main switch
Tra󰀩c light control STA11 in plastic enclosure IP 54 (210 x 310 x 125mm)
power supply 230Va.c., +6/-10%, 50Hz protection class IP54
relay load red/green tra󰀩c light 230V, max. 60W article no. 12120370
optional equipment induction loop detector ISD 6 (2-channels) • pluggable radio receiver
