tousek ST 61A User Manual

- 24 - tousek / EN_ST-61A_08 / 25. 03. 2020

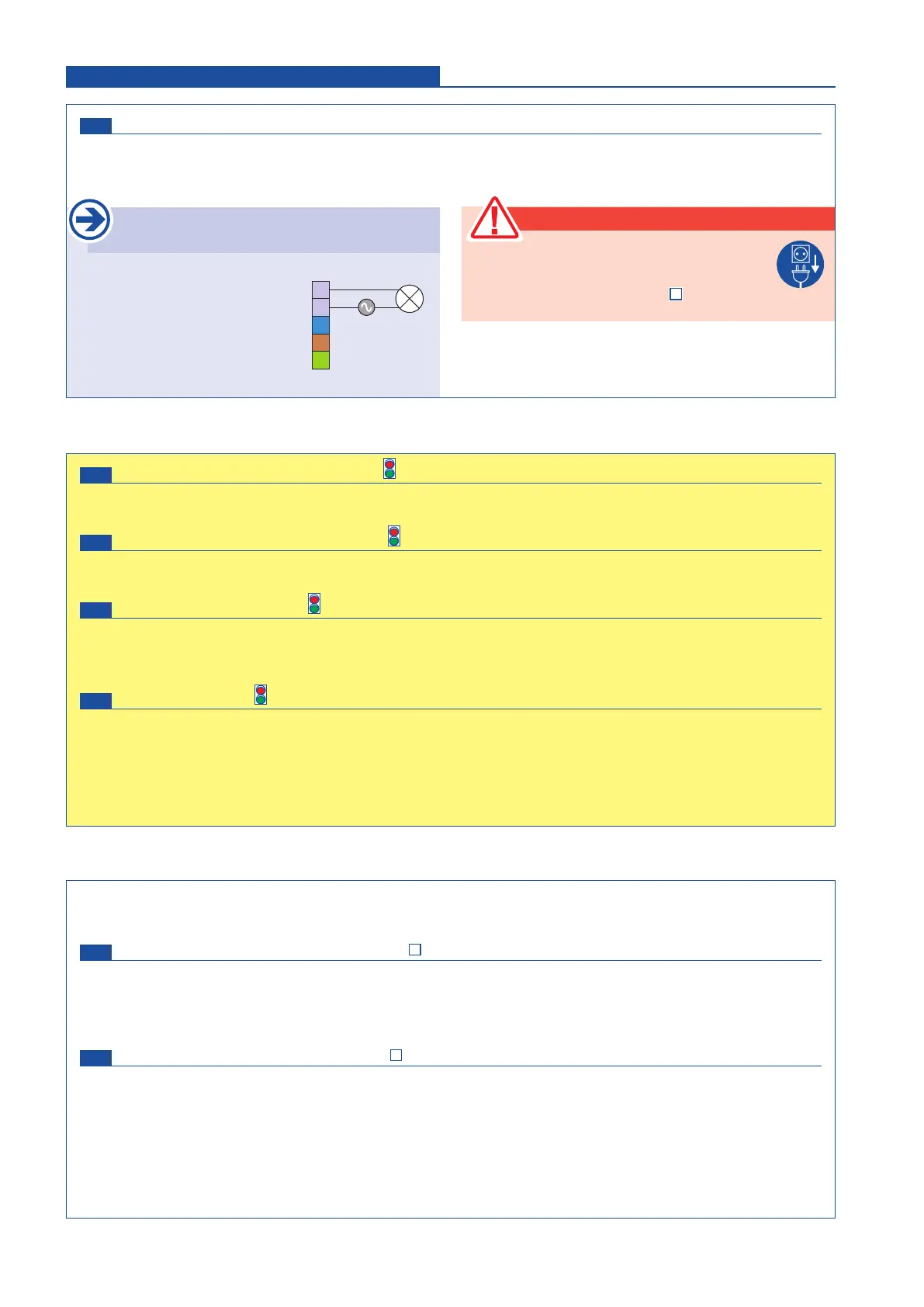

Light/lamps Connections and adjustments
The following two menu points can only be selected if the menu point additional menu is adjusted to „Courtyard-/Control
lamp“ (hence shown on display).
Courtyard lamp (Description add. modules

page 25) Light / Lamps
 OFF
 5–950 adjustable: at the courtyard lamp output an external lamp can be connected (e.g. garden lamp), which can be
turned on for each opening command for the duration of adjusted time.
Control lamp (Description add. modules

page 25) Light / Lamps
 illuminates during open and close: The pilot lamp output is activated during opening- and closing movement.
 blinks slowly/illuminates/blinks: The pilot lamp output is activated as follows: During opening the pilot lamp ashes
slowly. During pause time, in opened position or when the gate stops it is illuminated. During the closing movement
it ashes rapidly. If the gate is closed, the pilot lamp expires
 illuminates in open position: Pilot lamp is illuminated as soon as the gate has reached end position open.
• Before taking o󰀨 the housing cover the
main switch has to be turned o󰀨 !
• Follow safety instructions (

page 11) !
Warning
Important: Notes regarding
connection of a ashing light
• Attention: Before carrying out
connection works, the power
supply of the facility has to be
turned o󰀨.
• A ashing light with 230V, max.
40W can be connected at the
terminals 10/11.
11
10
2
1
0
ST 61A
Prewarning OPEN (terminals 10/11) Light / Lamps
 OFF
 1–30s adjustable: before each opening movement the ashing light is activated for the adjusted time.
green phase  20s (factory setting) Light / lamps
 5–120s adjustable [increment 1]: duration of green phase.
clearance time  5s (factory setting) Light / lamps
 1–60s adjustable [increment 1]: time to leave the tra󰀩c light intermediate area.
tra󰀩c light gate CLOSE Light / lamps
 red light OFF: red tra󰀩c light does not illuminate in closed position.
 permanent RED: red tra󰀩c light illuminates also in closed position.
tra󰀩c light logic Light / lamps
 green on both sides: both tra󰀩c lights illuminate GREEN in open position, regardless of which side has been given
the green request.
 green on one side: only the tra󰀩c light illuminates GREEN in open position, from the side from where the green
request has been requested.

tousek ST 61A Specifications

General

Brand	tousek
Model	ST 61A
Category	Control Unit
Language	English
