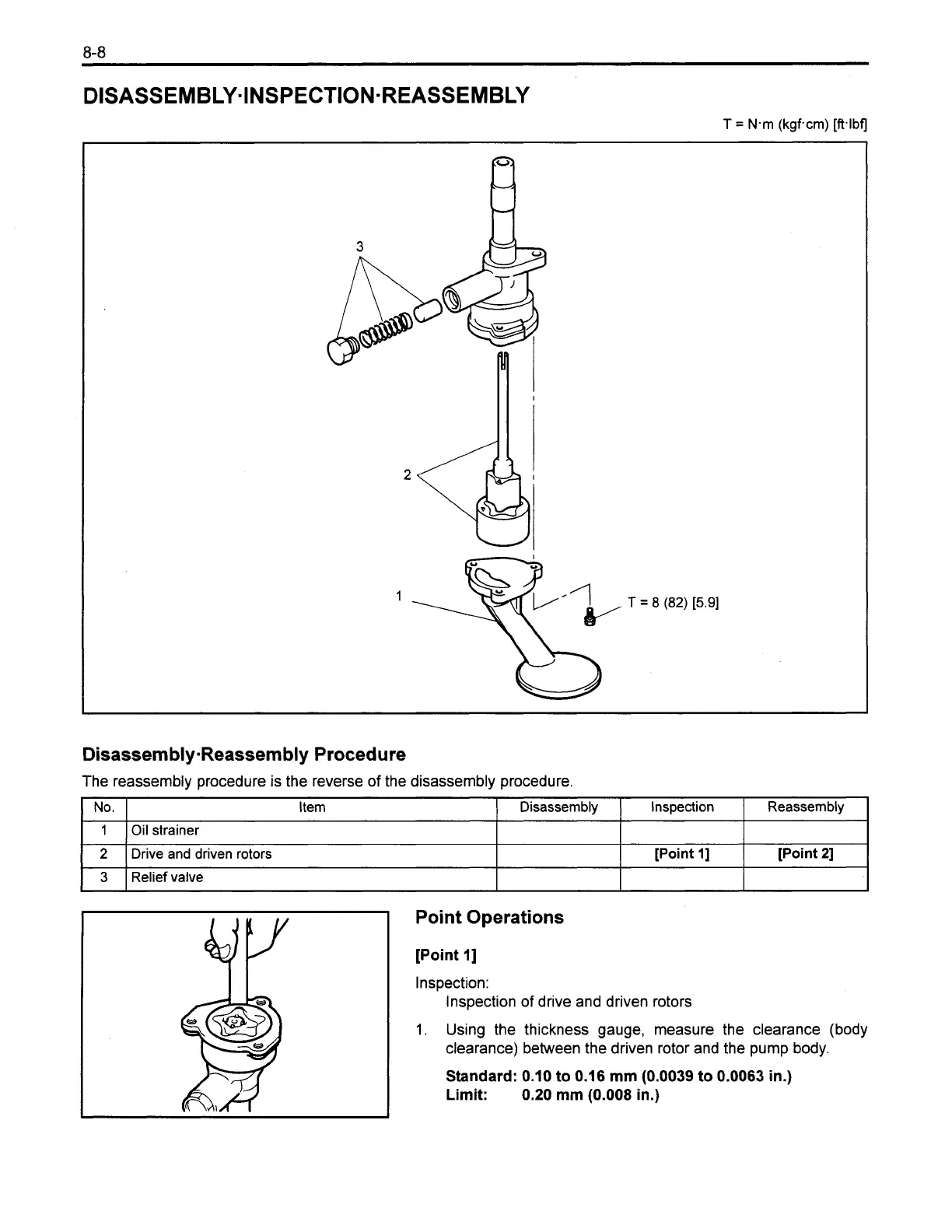

DISASSEMBLY-INSPECTION-REASSEMBLY
Disassembly .Reassembly Procedure
The reassembly procedure is the reverse of the disassembly procedure.
I
No.
I
Item
(
Disassembly
I
Inspection
I
Reassembly
1
Point Operations
1
2
3
[Point
I]
Inspection:
lnspection of drive and driven rotors
Oil strainer
Drive and driven rotors
Relief valve
1.
Using the thickness gauge, measure the clearance (body
clearance) between the driven rotor and the pump body.
Standard: 0.10 to 0.16 mm (0.0039 to 0.0063 in.)
Limit: 0.20 mm (0.008 in.)
[Point
I]
[Point
21
To Next Page
