Disassembly: Align the notch on the yoke with the protrusion
on the magnet switch.

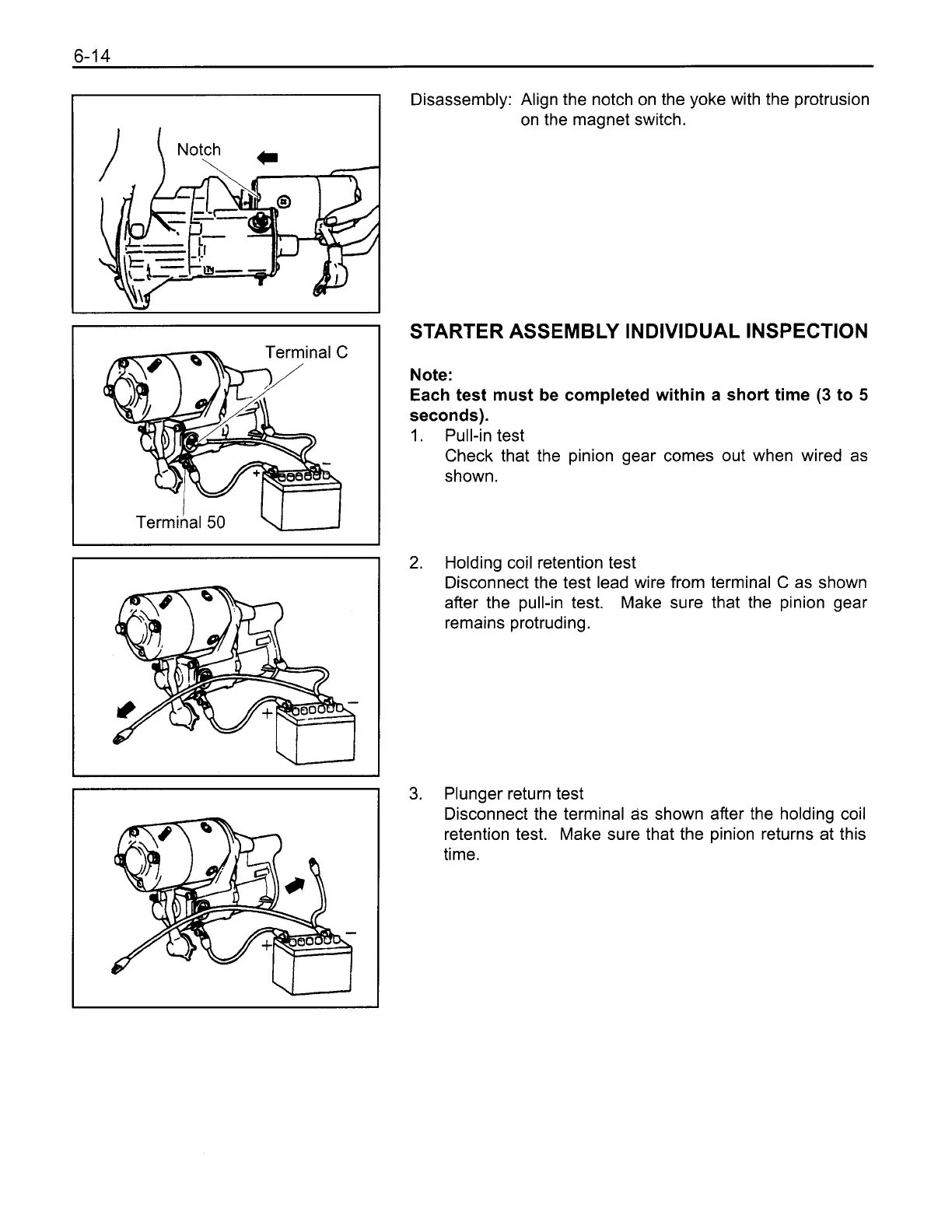

STARTER ASSEMBLY INDIVIDUAL INSPECTION
Note:
Each test must be completed within a short time
(3
to
5
seconds).
1.
Pull-in test
Check that the pinion gear comes out when wired as
shown.
2.
Holding coil retention test
Disconnect the test lead wire from terminal C as shown
after the pull-in test. Make sure that the pinion gear
remains protruding.
3.
Plunger return test
Disconnect the terminal as shown after the holding coil
retention test. Make sure that the pinion returns at this
time.
