3. If the Internet LED is off, please check your DSL LED first. If your DSL LED is also off, please refer to 1. If your DSL LED is ON,
reconnect your modem router correctly by referring to related guide.
4. Turn on or off the LEDs by pressing the LED On/Off button on the top panel.
1. 2. 2. Ports, Buttons and Antennas

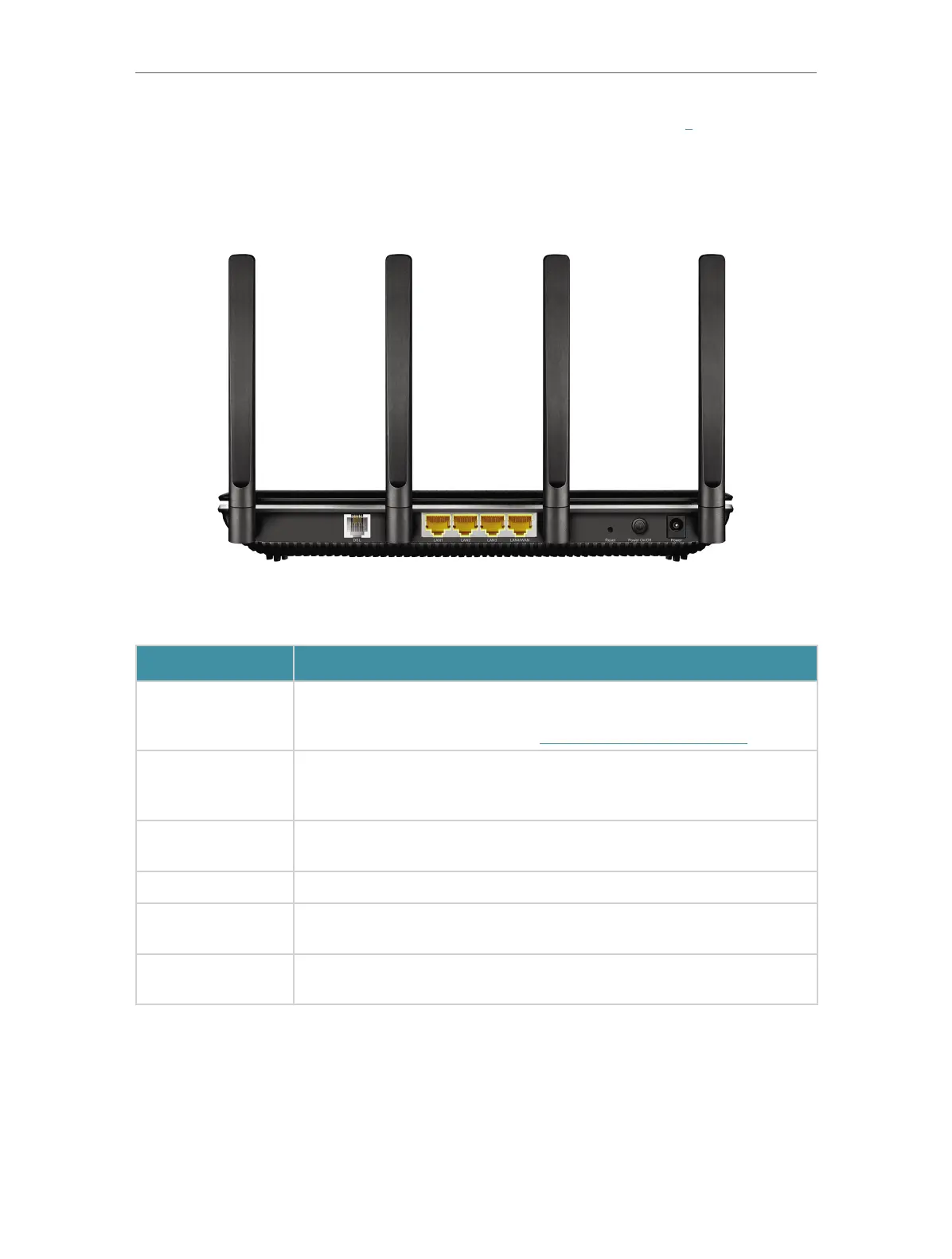

The modem router’s back panel shows the connection ports, buttons and antennas.
Refer to the following for detailed instructions.
Item
Description
DSL
For connecting the modem router to the internet. Connect the port to
the splitter or directly connect the port to the phone jack via a phone
cable. For details, please refer to Connect Your Modem Router.
LAN1, LAN2, LAN3,
LAN4/WAN
For connecting the modem router to your PC or other Ethernet network
devices. In wireless router mode, the LAN4/WAN port is used for
connecting to a Cable/FTTH/VDSL/ADSL device.
Reset
Press and hold down for 8 seconds to reset the modem router into
factory default settings.
Power On/Off The switch for the power. Press it to power on or off the modem router.
Power
For connecting the modem router to a power socket via the provided
power adapter.
Antennas
Used for wireless data transmission. Position them upright for the best
performance.
