TP-Link JetStream TL-SG2210P User Manual

User Guide 306
Configuring Spanning Tree STP/RSTP Configurations
2
STP/RSTP Configurations
To complete the STP/RSTP configuration, follow these steps:
1) Configure STP/RSTP parameters on ports.
2) Configure STP/RSTP globally.
3) Verify the STP/RSTP configurations.
Configuration Guidelines
■ Before configuring the spanning tree, it’s necessary to make clear the role that each
switch plays in a spanning tree.
■ To avoid any possible network flapping caused by STP/RSTP parameter changes, it
is recommended to enable STP/RSTP function globally after configuring the relevant
parameters.
2.1 Using the GUI
2.1.1 Configuring STP/RSTP Parameters on Ports

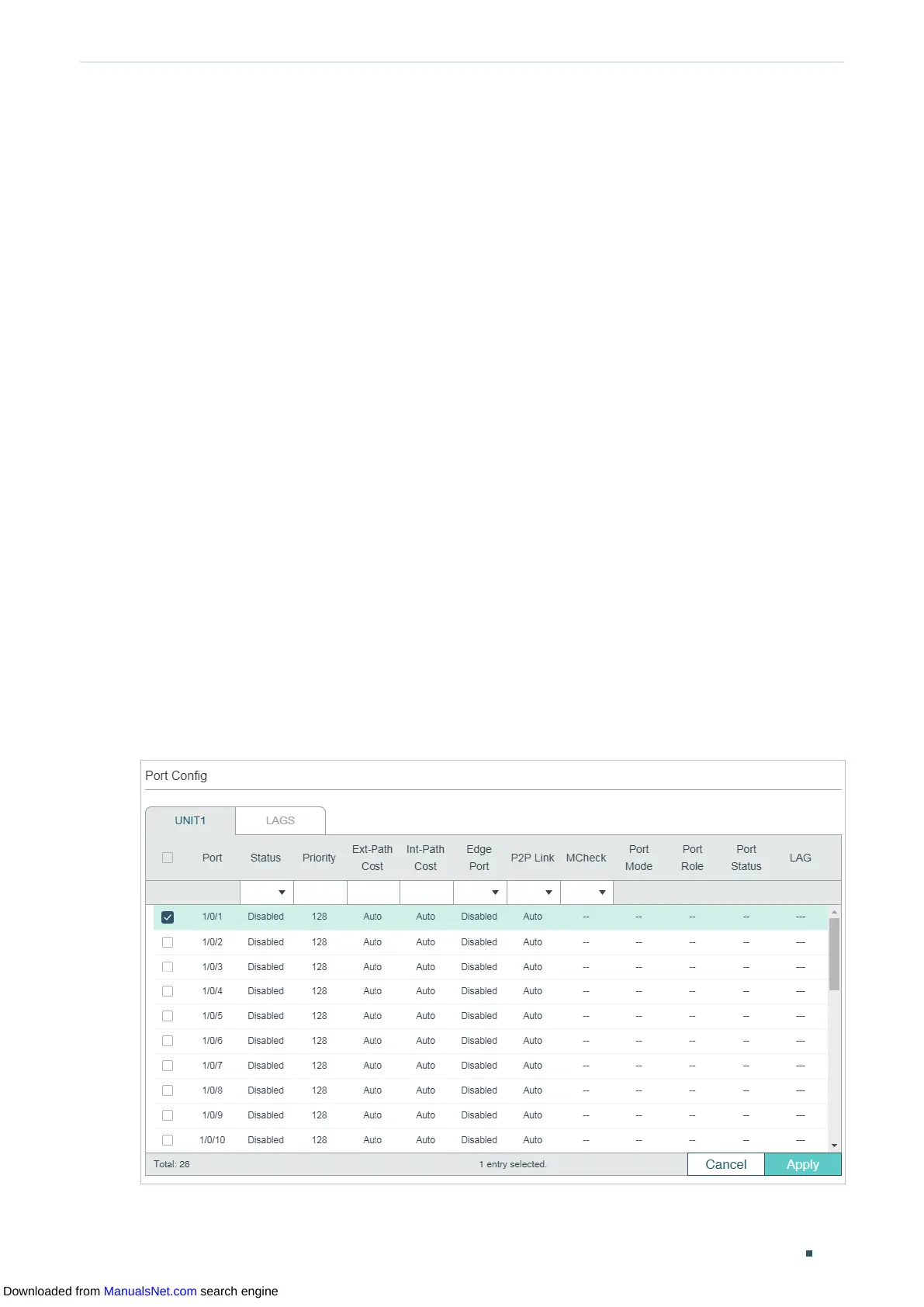

Choose the menu L2 FEATURES > Spanning Tree > Port Config to load the following
page.
Figure 2-1 Configuring STP/RSTP Parameters on Ports
Downloaded from ManualsNet.com search engine

TP-Link JetStream TL-SG2210P Specifications

General

PoE Ports	8
PoE Budget	62 W
Switching Capacity	20 Gbps
MAC Address Table	8K
Packet Forwarding Rate	14.88 Mpps
Jumbo Frame	9KB
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Ports	8× Gigabit PoE+ Ports
VLANs	4K
QoS	4 queues per port
Management	Web, CLI, SNMP
Standards and Protocols	IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at
Operating Humidity	10% to 90% RH non-condensing
Storage Humidity	5% to 90% RH non-condensing
