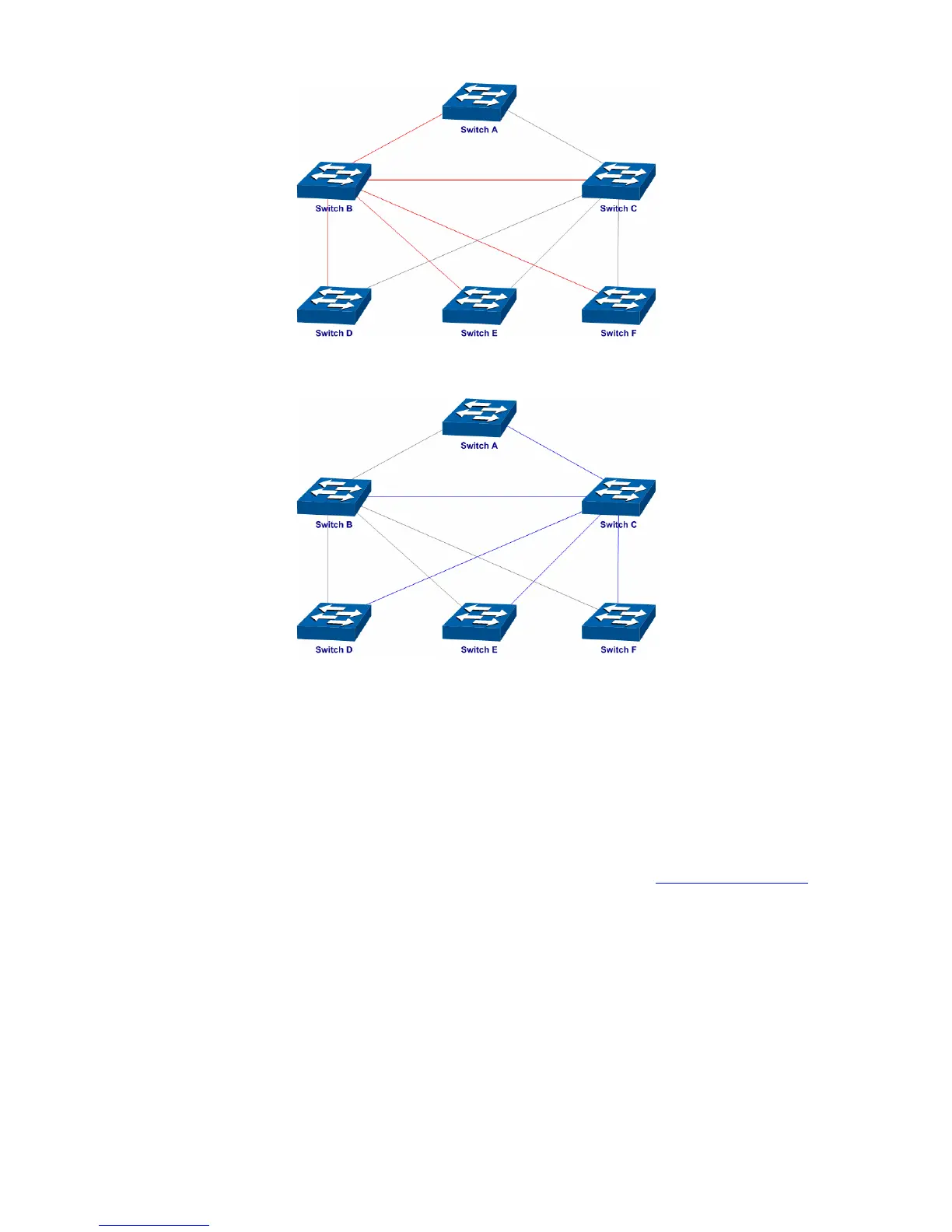

 For Instance 2 (VLAN 102, 104 and 106), the blue paths in the following figure are connected
links; the gray paths are the blocked links.
 Suggestion for Configuration
 Enable TC Protect function for all the ports of switches.
 Enable Root Protect function for all the ports of root bridges.
 Enable Loop Protect function for the non-edge ports.
Enable BPDU Protect function or BPDU Filter function for the edge ports which are connected to
the PC and server.
