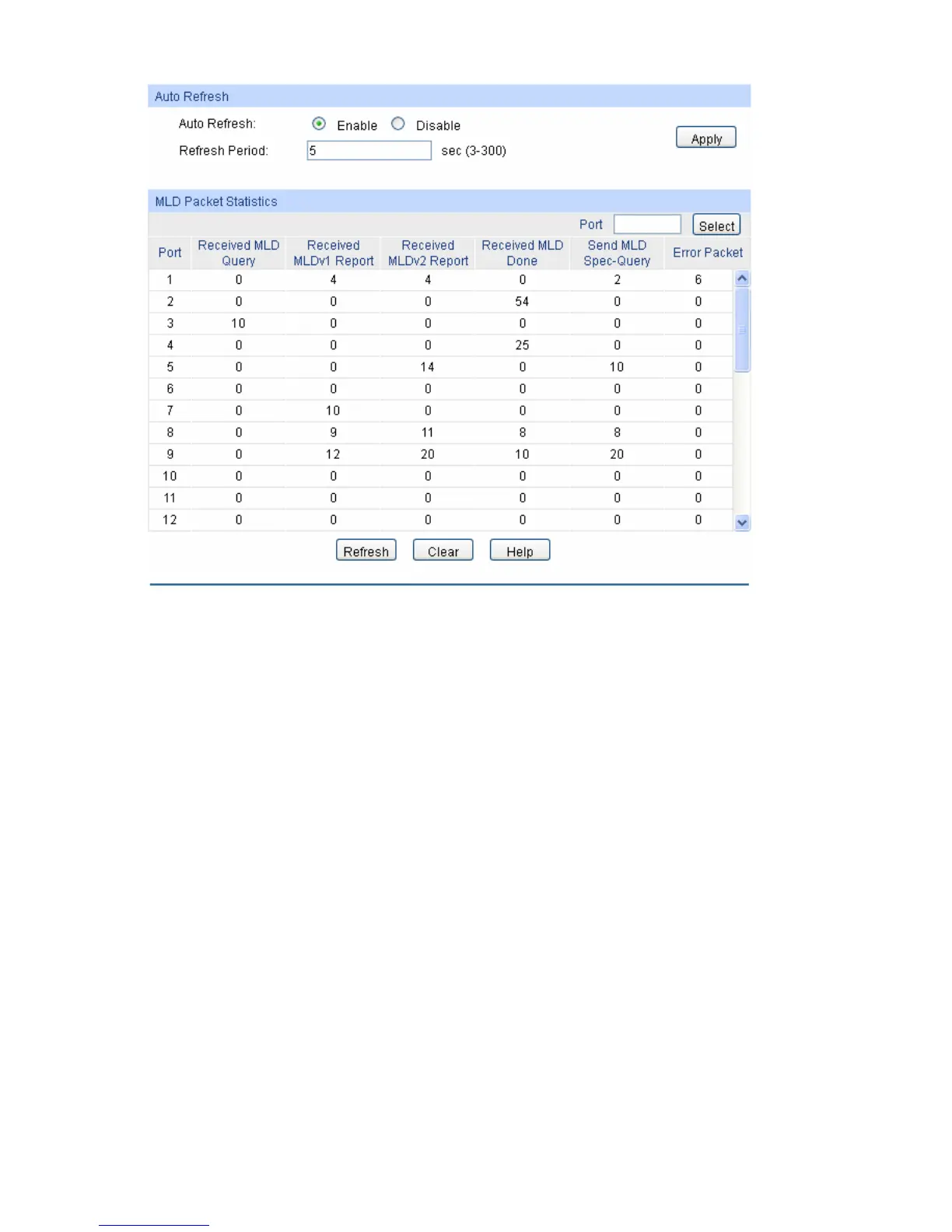

The following entries are displayed on this screen:
Auto Fresh
Auto Fresh: Select Enable/Disable auto fresh feature.
Fresh Period: Enter the time from 3 to 300 seconds to specify the
auto fresh period.
MLD Packet Statistics
Received MLD
Query :
Displays the number of MLD Query packets the
switch has received.
Received MLDv1
Report:
Displays the number of MLDv1 Report packets which
the switch has received.
Received MLDv2
Report:
Displays the number of MLDv2 Report packets which
the switch has received.
Received MLD Done: Displays the number of MLD Done packets which the
switch has received.
Send MLD
Spec-Query:
Displays the number of MLD Specific Query packets
which the switch has sent.
Error Packet: Displays the number of error packets which the switch
has received.
8.3 Multicast Table
In a network, receivers can join different multicast groups appropriate to their needs. The switch
forwards multicast streams based on IPv4/IPv6 multicast address table.
130
