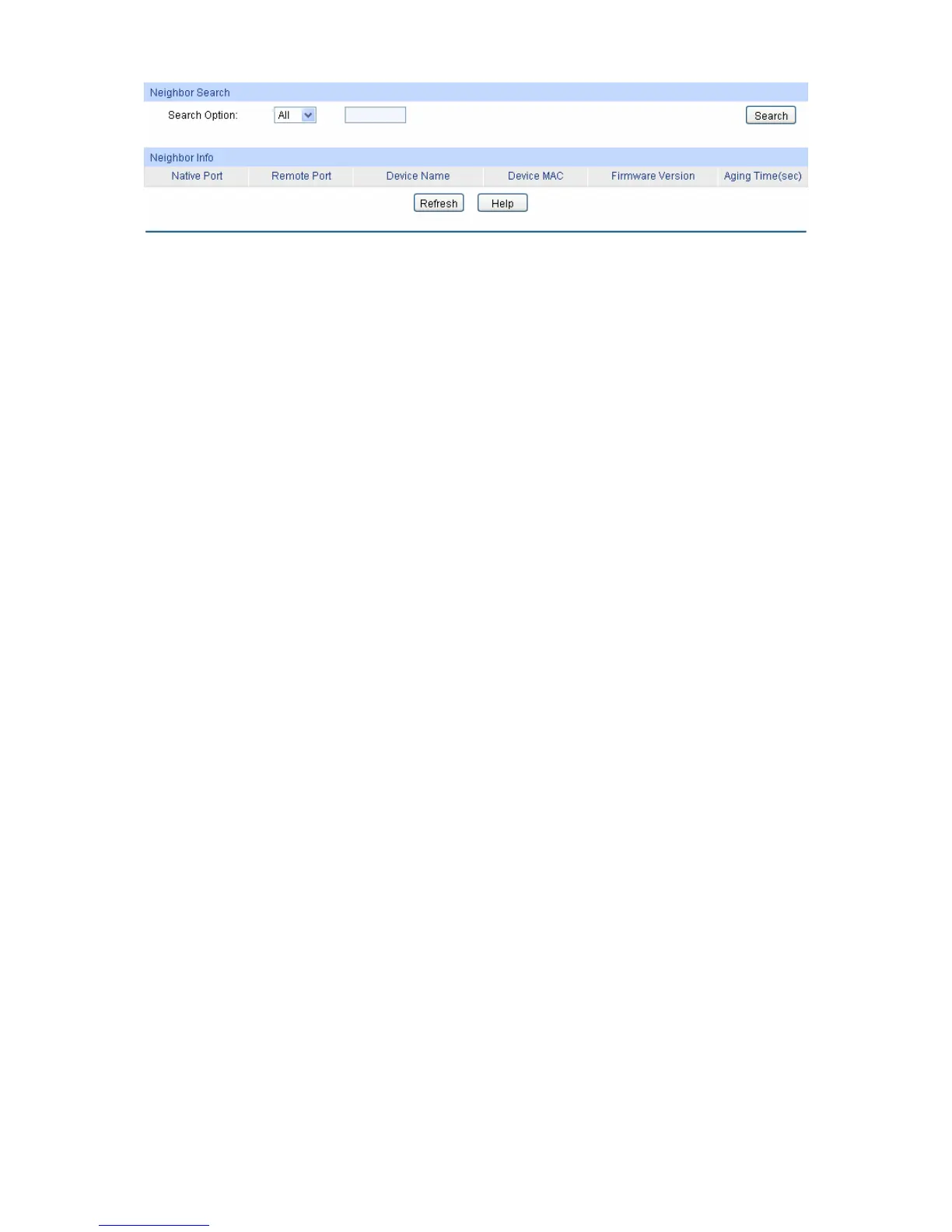

Figure 13-2 Neighbor Information
The following entries are displayed on this screen:
Neighbor
Search Option: Select the information the desired entry should contain and then
click the Search button to display the desired entry in the following
Neighbor Information table.
Neighbor Info
Native Port: Displays the port number of the switch.
Remote Port: Displays the port number of the neighbor switch which is
connected to the corresponding port.
Device Name: Displays the name of the neighbor switch.
Device MAC: Displays MAC address of the neighbor switch.
Firmware Version: Displays the firmware version of the neighbor switch.
Aging Time: Displays the period for the switch to keep the NDP packets from
the neighbor switch.
13.1.2 NDP Summary
On this page you can view the NDP configuration of the switch.
Choose the menu Cluster→NDP→NDP Summary to load the following page.
209
