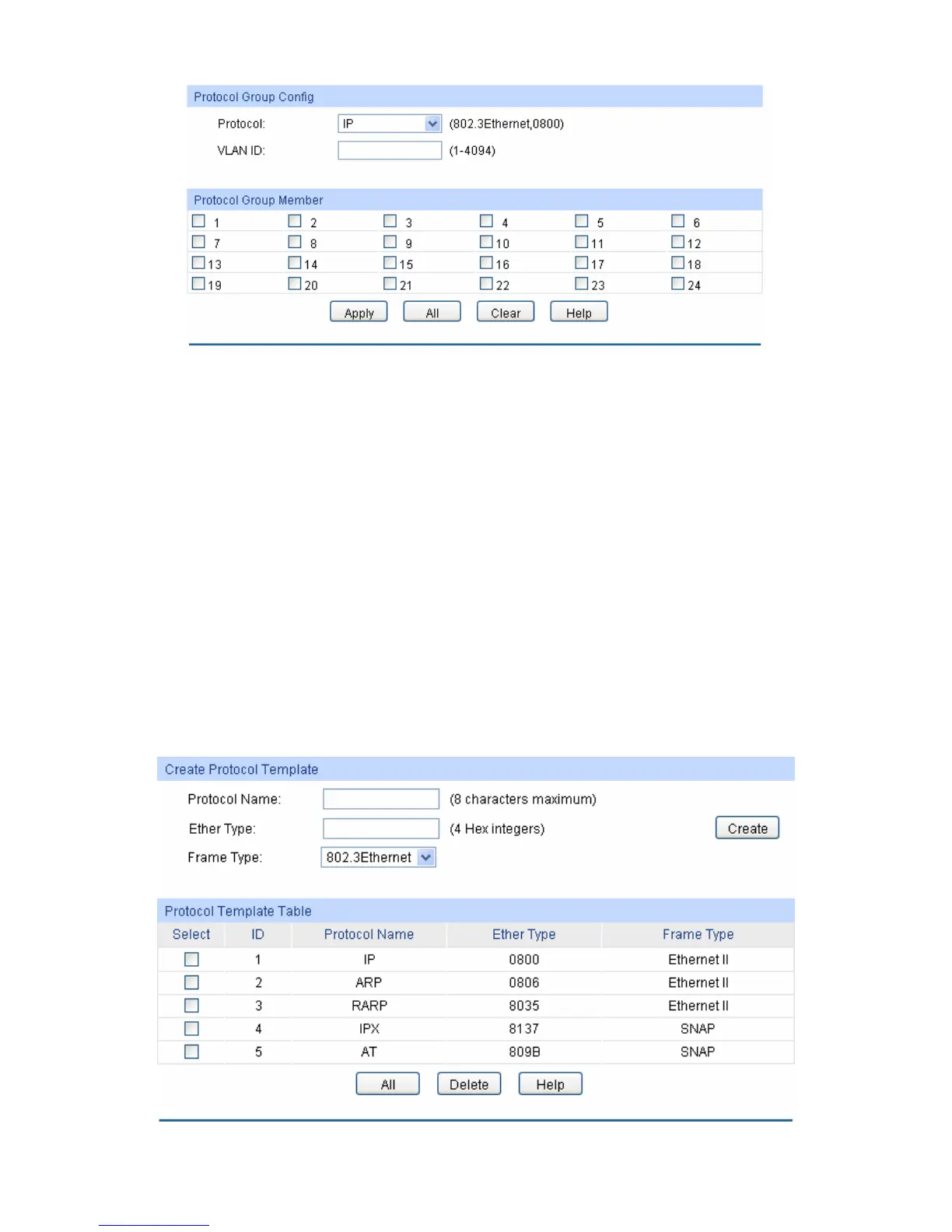

Figure 6-9 Create Protocol VLAN
The following entries are displayed on this screen:
Protocol Group Config
Protocol: Select the defined protocol template.
VLAN ID: Enter the ID number of the Protocol VLAN. This VLAN should be one
of the 802.1Q VLANs the ingress port belongs to.
Protocol Group Member
Select your desired port for Protocol VLAN Group.
6.3.3 Protocol Template
The Protocol Template should be created before configuring the Protocol VLAN. By default, the
switch has defined the IP Template, ARP Template, RARP Template, etc. You can add more
Protocol Template on this page.
Choose the menu VLAN → Protocol VLAN → Protocol Template to load the following page.
Figure 6-10 Create and View Protocol Template
76
