Of
f
A 10/100Mbps device or no device is connected to the
corresponding port.
On
A device is connected to the corresponding port, but not
activity.
Flashing Data is being transmitted or received.
Link/Act
Off No device is connected to the corresponding port.
2.3.2 Rear Panel
The rear panel of the switch features a power socket and a Grounding Terminal (marked with ).

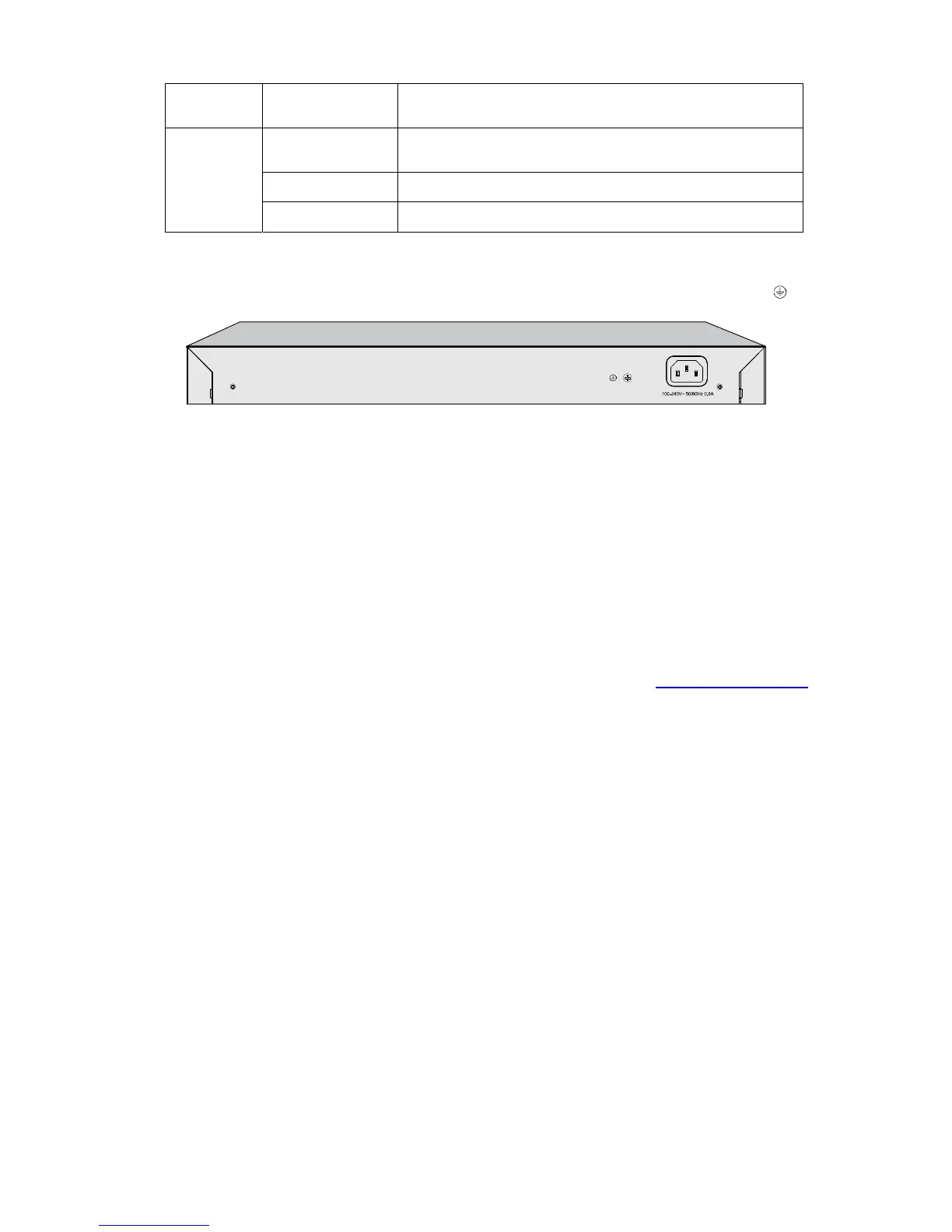

Figure 2-2 Rear Panel
Grounding Terminal: The switch already comes with Lightning Protection Mechanism. You
can also ground the switch through the PE (Protecting Earth) cable of AC cord or with Ground
Cable.
AC Power Socket: Connect the female connector of the power cord here, and the male
connector to the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage (100-240V~ 50/60Hz 0.6A).
