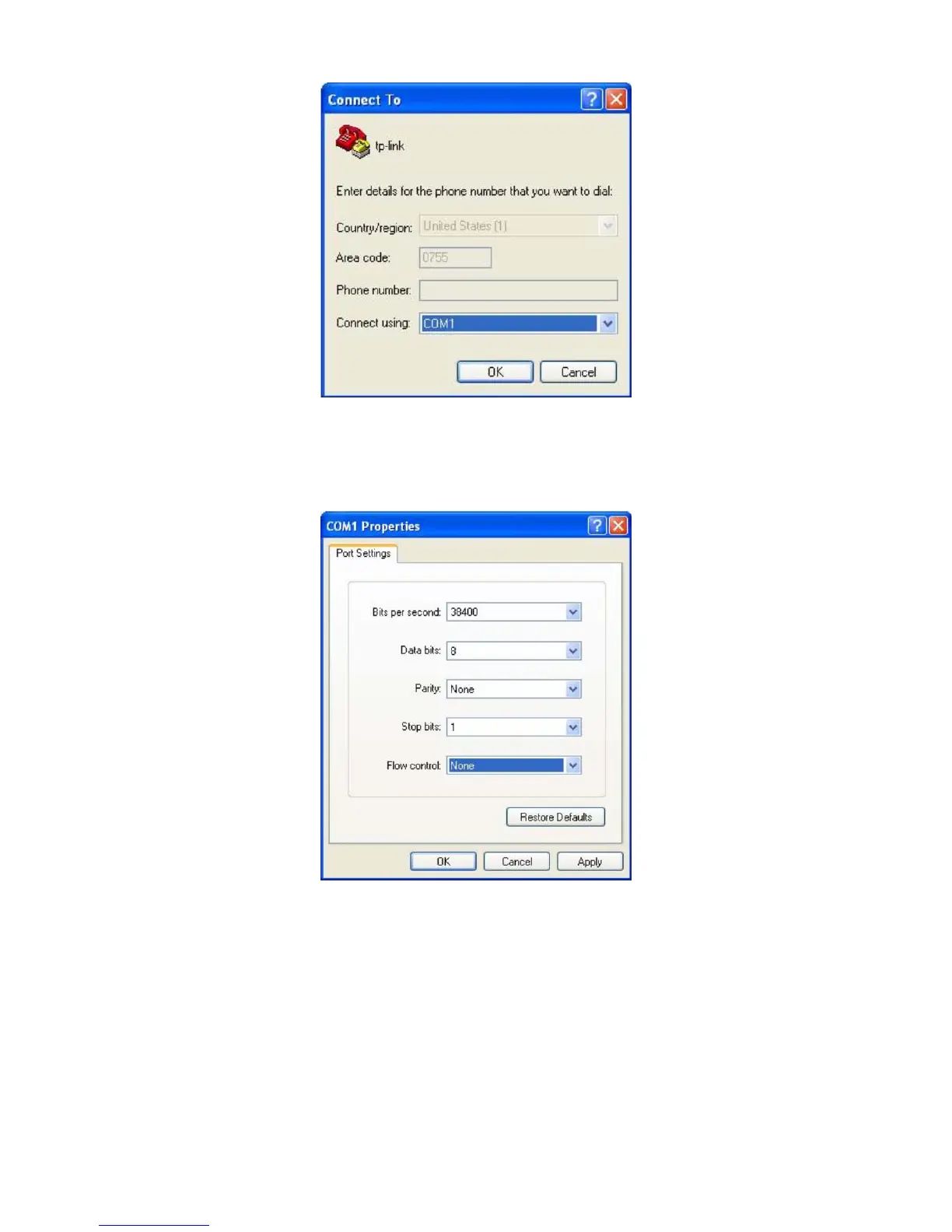

Figure C-4 Select the port to connect
4） Configure the port selected in the step above shown as the following figure. Configure
Bits per second as 38400, Data bits as 8, Parity as None, Stop bits as 1, Flow control
as None, and then click OK.
Figure C-5 Port Settings
3. Download Firmware via bootUtil menu
To download firmware to the switch via FTP function, you need to enter into the bootUtil menu of
the switch and take the following steps.
1） Connect the console port of the PC to the console port of the switch and open hyper
terminal. Connect FTP server to port 1 of the switch.
2） Power off and restart the switch. When you are prompted that “Press CTRL-B to enter the
bootUtil” in the hyper terminal, please press CTRL-B key to enter into bootUtil menu
shown as the figure below.
239
