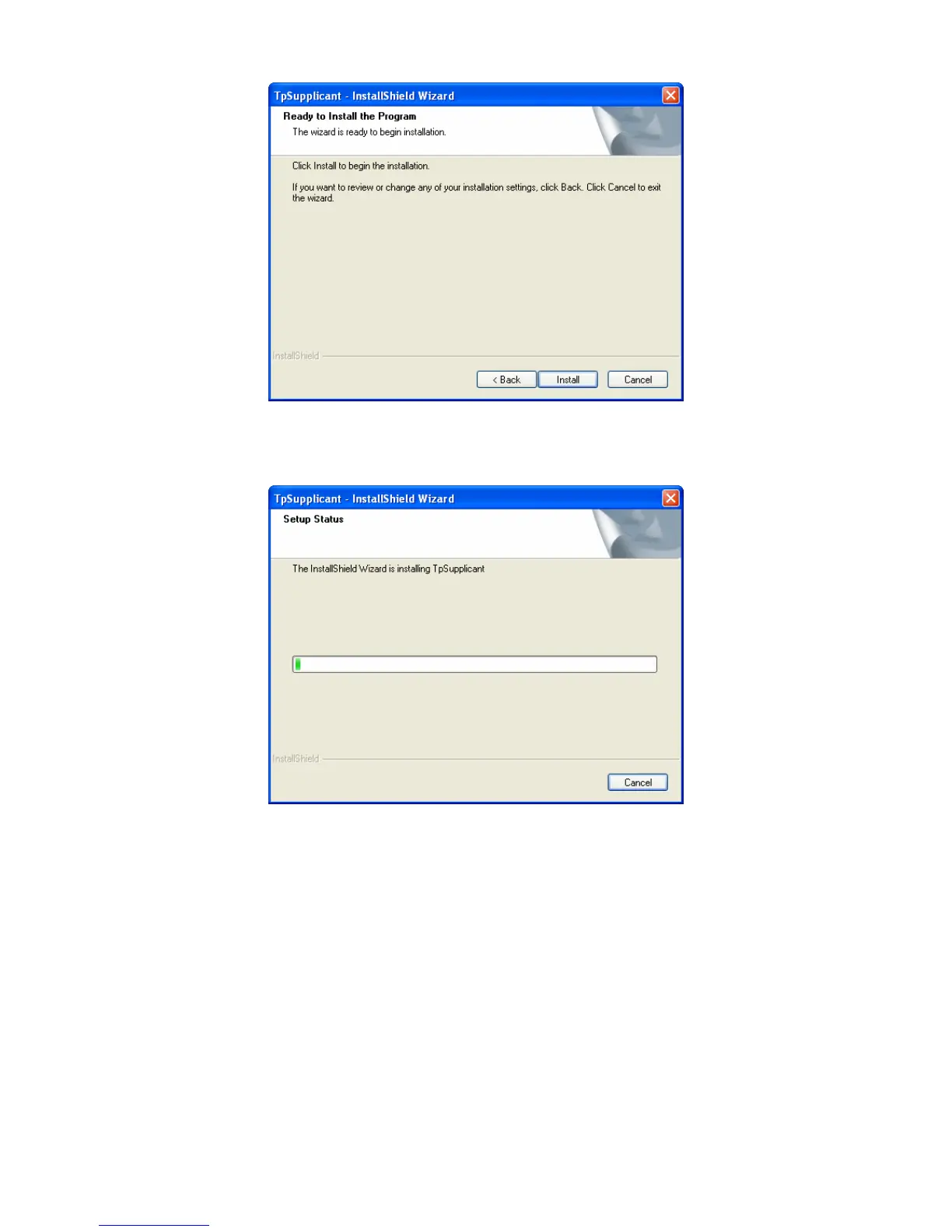

Figure D-5 Install the Program

6) The InstallShield Wizard is installing TpSupplicant shown as the following screen. Please

wait.

Figure D-6 Setup Status

7) On the following screen, click Finish to complete the installation.

244
