preferr
ed one. If the two port priorities are equal; the port with smaller port number is preferred.
After an aggregation group is established, the selected ports can be aggregated together as one
port to transmit packets.
On this page, you can configure the LACP feature of the switch.
Choose the menu Switching → LAG → LACP Config to load the following page.

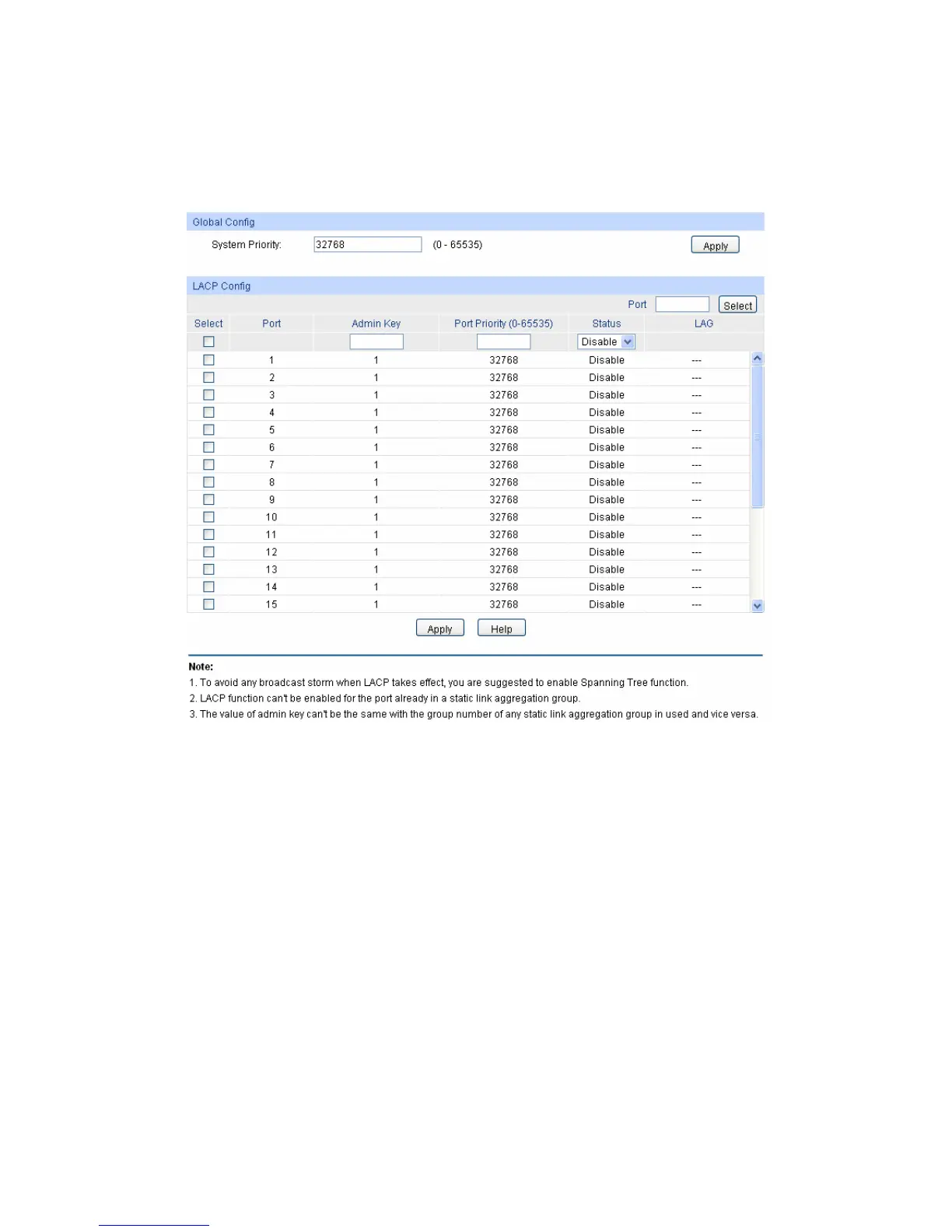

Figure 5-9 LACP Config
The following entries are displayed on this screen:
Global Config
System Priority: Specify the system priority for the switch. The system priority and
MAC address constitute the system identification (ID). A lower system
priority value indicates a higher system priority. When exchanging
information between systems, the system with higher priority
determines which link aggregation a link belongs to, and the system
with lower priority adds the proper links to the link aggregation
according to the selection of its partner.
LACP Config
Port Select: Click the Select button to quick-select the corresponding port based
on the port number you entered.
Select: Select the desired port for LACP configuration. It is multi-optional.
Port: Displays the port number.
52
