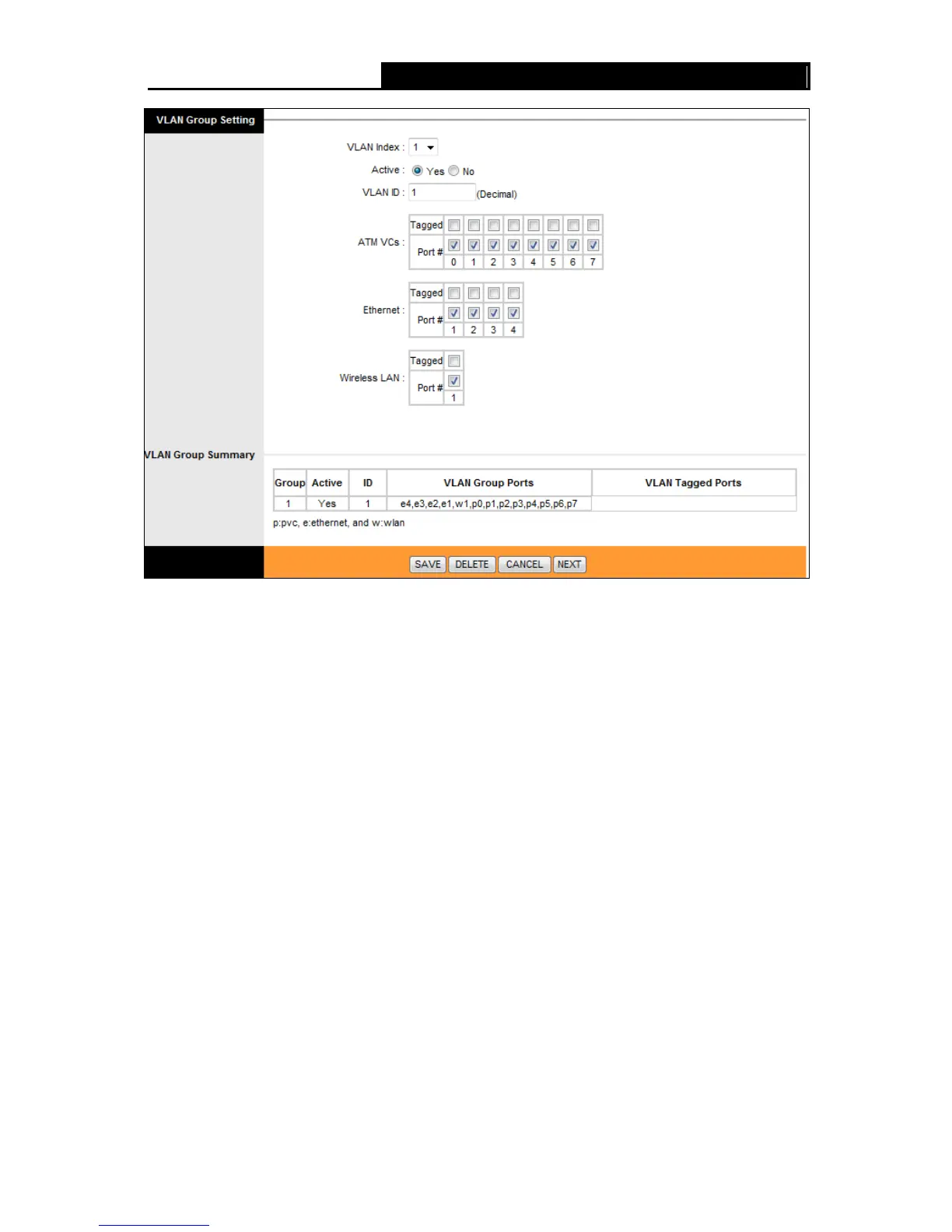

Figure 4-39
VLAN Index: Select the VLAN index for this VC. You can specify 8 groups in maximum.
VLAN ID: This indicates the VLAN group.
ATM VCs: Select the ATM VCs as members of VLAN, and if you leave the Tagged blank, the
tag in frames will be deleted when transmitted from the VC.
Ethernet: Select the Ethernet port as a member of VLAN.
Wireless LAN: Select the wireless LAN port as a member of VLAN, and if you leave the
Tagged blank, the tag in frames will be deleted when transmitted from the port.
VLAN Group Summary: This displays the information about the VLAN Groups.
2) Assign VLAN PVID for each Interface
Click Assign VLAN PVID for each Interface in Figure 4-38, you can assign the PVID for each
interface in the next screen (shown in Figure 4-40).
