TD-W8968 300Mbps Wireless N USB ADSL2+ Modem Router User Guide
85

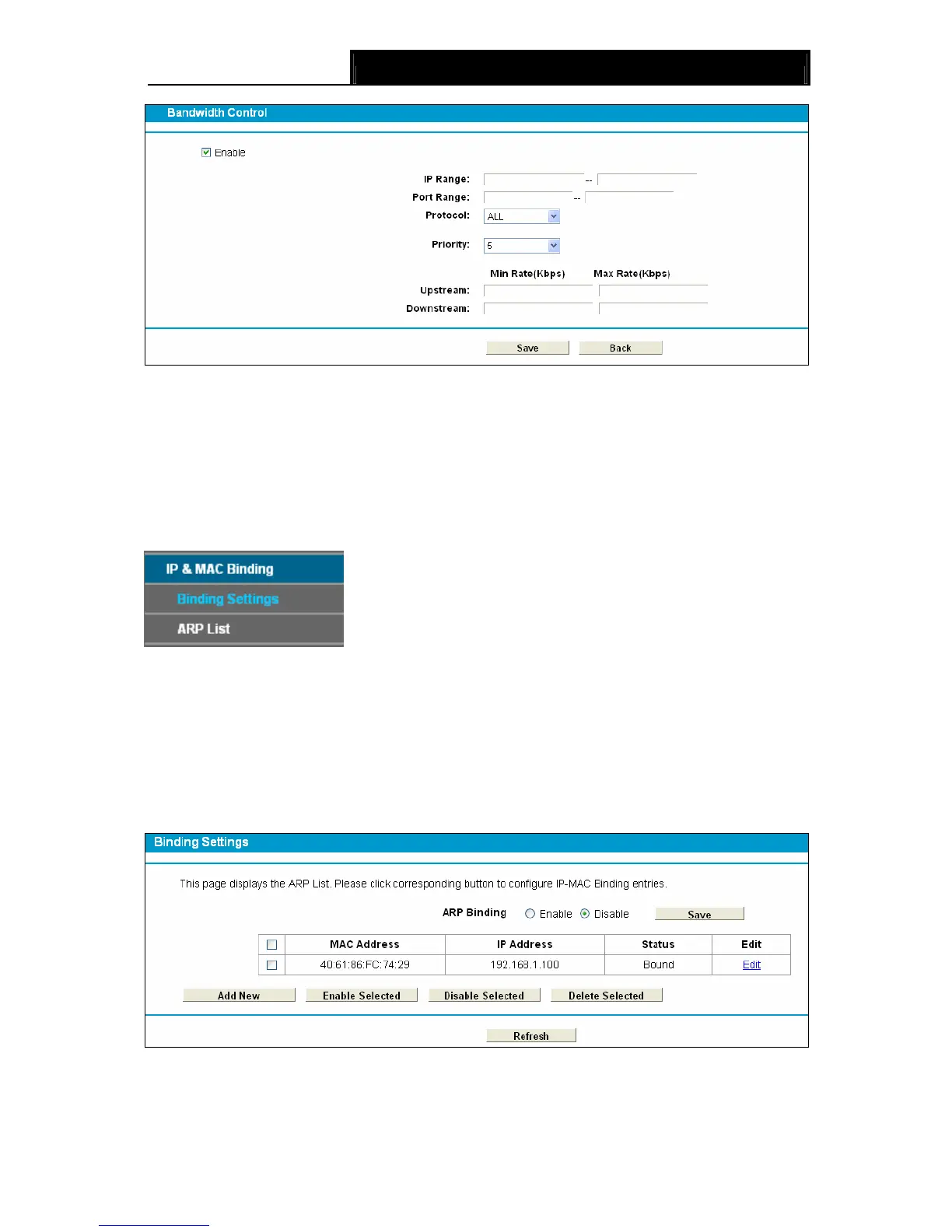

Figure 4-84
3. Click the Save button.
Click the Enable/ Disable Selected button to make selected entries enabled or disabled.
Click the Delete Selected button to delete selected entries.
4.16 IP&MAC Binding
There are two submenus under the IP &MAC Binding menu: Binding Settings and ARP List.
Click any of them, and you will be able to scan or configure the corresponding function. The
detailed explanations for each submenu are provided below.
4.16.1 Binding Settings
This page displays the IP & MAC Binding Setting table; you can operate it in accord with your
desire (shown in
Figure 4-85).
Figure 4-85
¾ MAC Address: The MAC address of the controlled computer in the LAN.
