TP-Link td-w8970 Installation Guide

2
Step 1: Connect your devices step by step following the figure below.

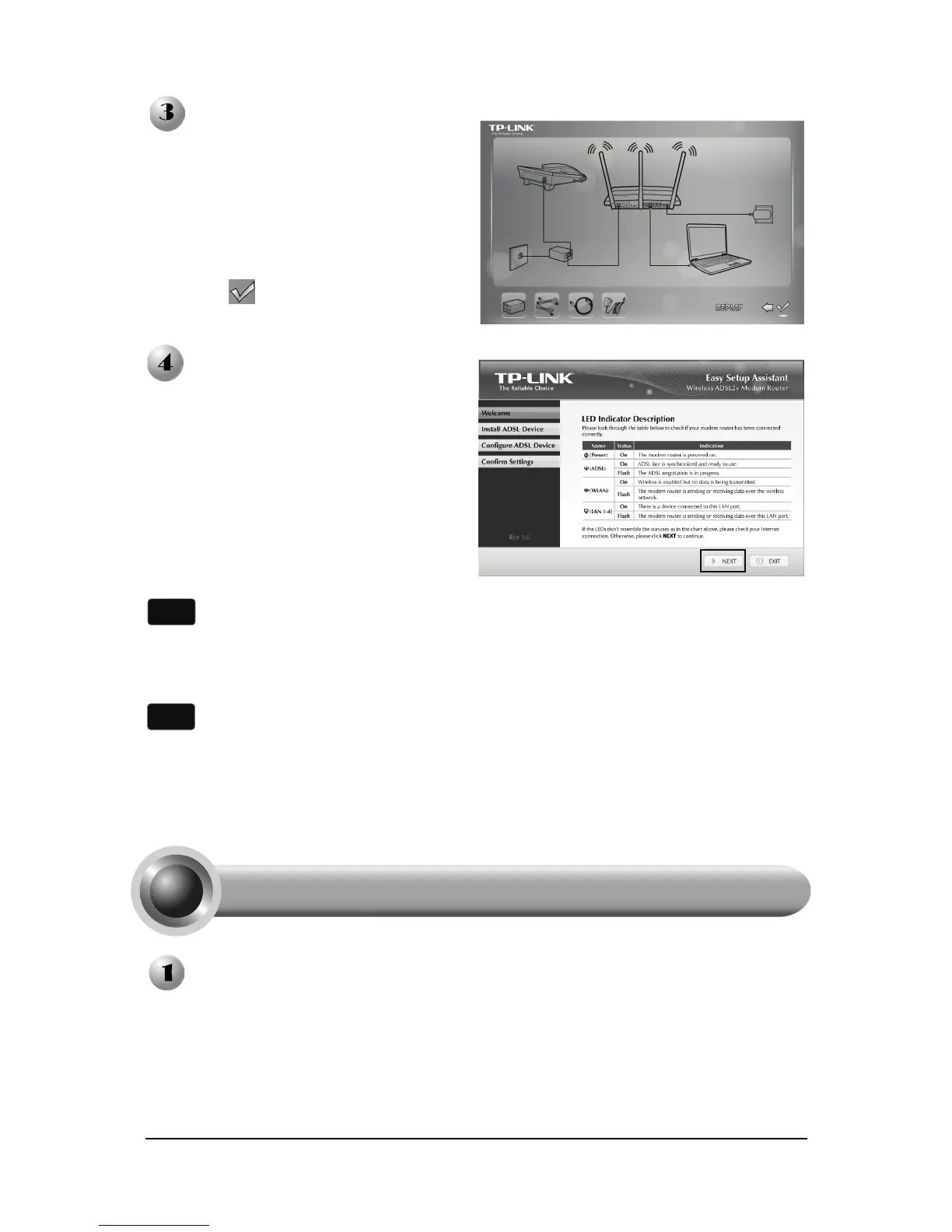

Then a flash video will pop
up and show you how to
connect your devices.
Please connect the devices
step by step following the
flash. When you finish the
hardware connection, click
the
to continue.
Note
The basic settings for your modem router are completed. Please open the
web browser and try to log on to some popular websites to test you
r
Internet connection. If you cannot access the Internet, please refer to T4
in Troubleshooting.
The Easy Setup Assistant
will start. Please check to
see if the LEDs of you
r
modem router display
normally as the chart
describes. Then click NEXT,
and follow the step-by-step
instruction until you
complete the configuration.
Hardware connection.
Note
For the advance configurations, please refer to the User Guide on the
Resource CD provided. You can also log on to www.tp-link.com → select
your region → search for the product → User Guide can be found unde
r
the “Download” tab on the product page.
2
Web-based Quick Setu
p
Wizard

TP-Link td-w8970 Specifications

General

VPN support	PPTP, L2TP, IPSec Pass-through
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Antennas quantity	2
Antenna connector type	RP-SMA
Antenna gain level (max)	5 dBi
DHCP client	-
Routing protocols	RIP-1, RIP-2
Supported network protocols	DHCP, ATM/PPP
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, MD5, SHA-1, SSL/TLS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
Authentication method	MD5, SHA-1
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE, FCC, RoHS, IPv6
Cables included	LAN (RJ-45)
USB version	2.0
Compatibility	IPv6
Input current	1.5 A
Input voltage	12 V
Rack mounting	No
Frequency band	2.4 GHz
Frequency range	2.4 - 2.4835 GHz
Filtering description	MAC / IP / URL
WLAN data transfer rates supported	300 Mbit/s
Product color	Black
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Power source type	DC

Weight and Dimensions

Depth	140 mm
Width	225 mm
Height	32.5 mm
Weight	- g
