TP-Link TD-W8980 Application Guide


WAN Access

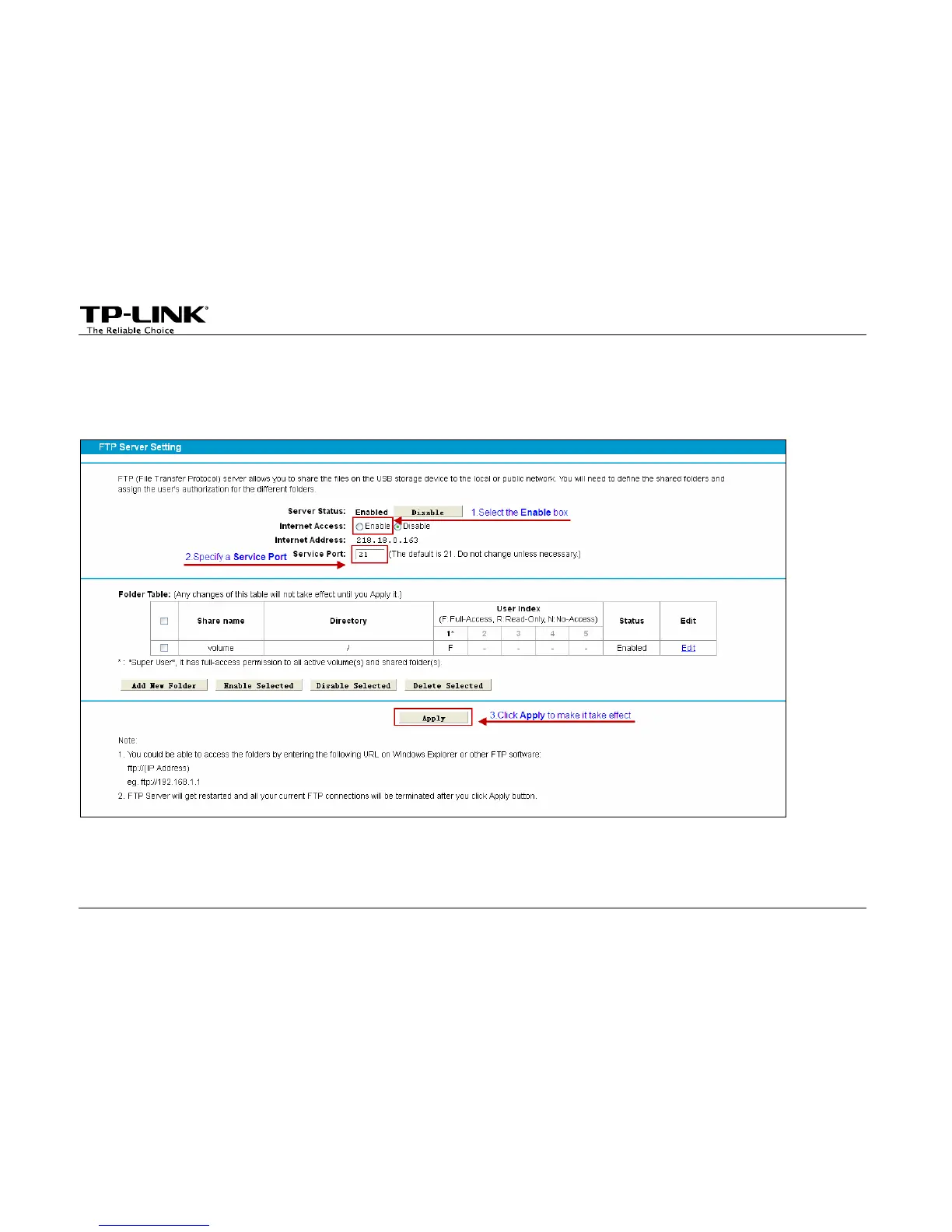

For WAN access to FTP server, please configure the modem router first. Log onto the web-based management page, then go to
USB Settings > FTP Server and follow the steps in the figure below.
Now your modem router has been configured.The IP behind Internet Address would be used to access the FTP server.Here we
take 218.18.0.163 as an example. Please follow the steps below to access the FTP server.
-7-


TP-Link TD-W8980 Specifications

General

VPN support	PPTP, L2TP
Ethernet LAN	Yes
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
VPN tunnels quantity	10
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Input current	1.5 A
Rack mounting	No
Frequency band	2.4 & 5 GHz
USB ports quantity	2
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
DHCP client	-
Supported network protocols	ATM/PPP
Antennas quantity	5
Antenna connector type	RP-SMA
Security algorithms	128-bit AES, 128-bit WEP, 256-bit AES, 3DES, 64-bit WEP, DES, WPA, WPA-PSK, WPA2, WPA2-PSK
Authentication method	MD5, SHA-1
Certification	CE, FCC, RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Cables included	LAN (RJ-45), Phone (RJ-11)
Output voltage	12 V

Weight and Dimensions

Depth	160.6 mm
Width	243 mm
Height	32.5 mm
Weight	- g
