TP-Link TD-W9960 User Manual

21
Chapter 5
TP-Link Cloud Service
5. 4. Manage the Router via TP-Link Tether App

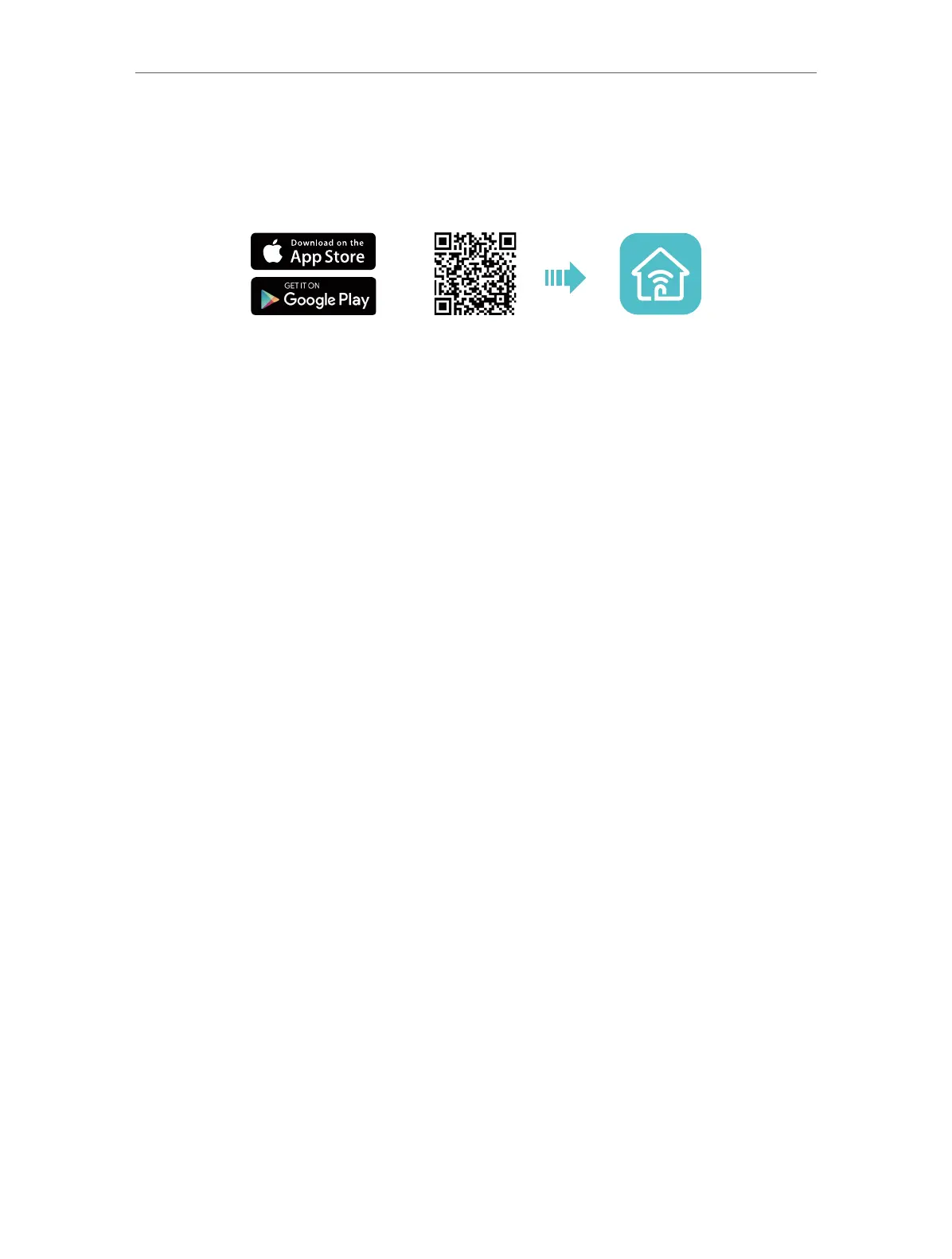

1. Open the Apple App Store or Google Play and search the key word “TP-Link Tether”
or simply scan the QR code to download and install the app.
OR
2. Connect your device to the router’s wireless network.
3. Launch the Tether app, select the model of your router and log in with your TP-Link ID
or the password your set for the router.
4. On the home page, you can check your internet status and connected devices
manage your router as needed.

TP-Link TD-W9960 Specifications

General

Ethernet WAN	Yes
SIM card slot	No
WAN connection type	RJ-45
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	300 Mbit/s
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
RJ-11 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Output current	0.6 A
Output voltage	9 V
Power source type	DC
Product type	Tabletop router
Product color	White
LED indicators	LAN, Status, WLAN
Antennas quantity	2
Antenna gain level (max)	5 dBi
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2
Certification	CE, RoHS
Supported network protocols	IPv4, IPv6
Cables included	LAN (RJ-45), Phone (RJ-11)
Windows operating systems supported	Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows XP Home, Windows XP Professional
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	232 mm
Package width	285 mm
Package height	70 mm
Package weight	490 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	125.7 mm
Width	181.6 mm
Height	36.2 mm
