TP-Link TL-R470T User Manual

-16-

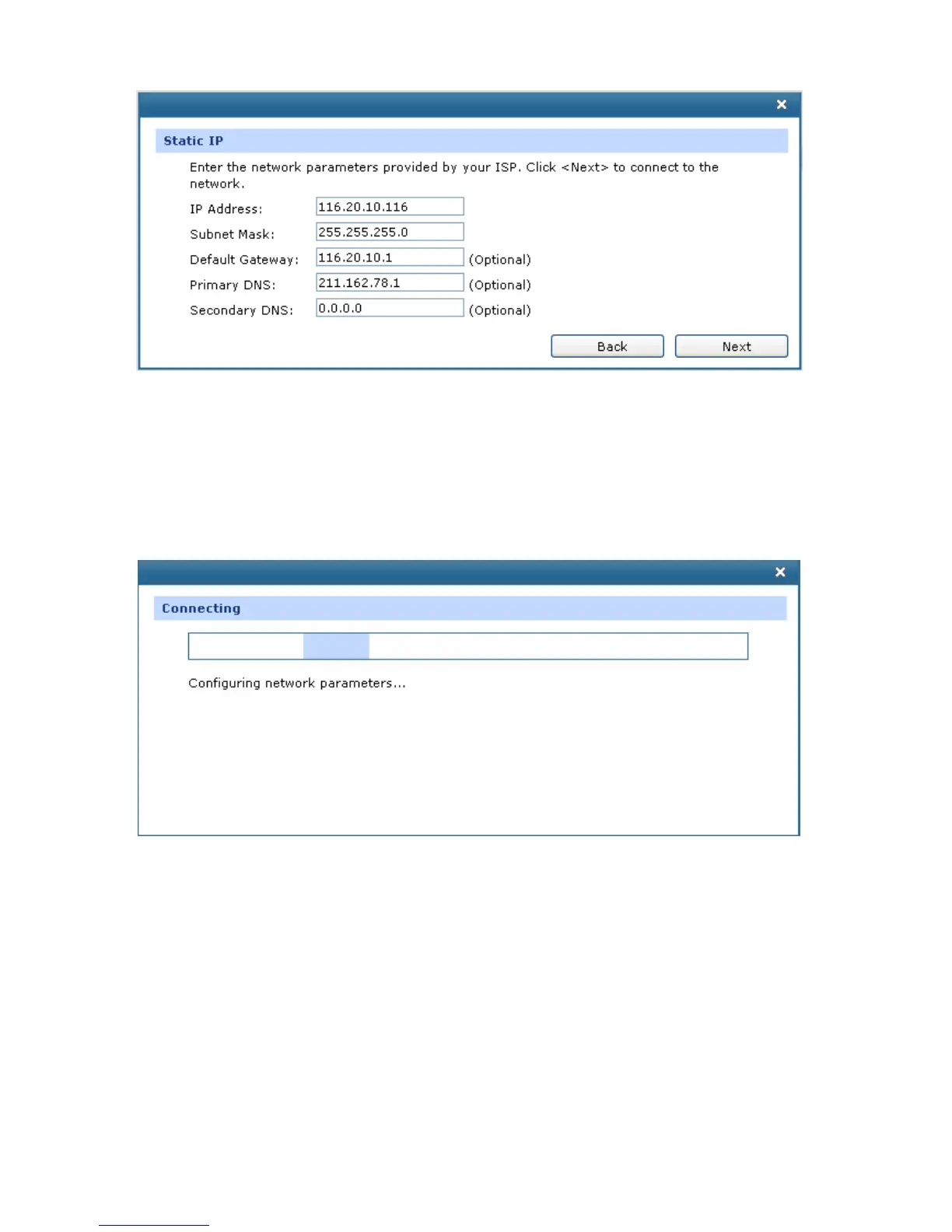

Figure 3-15 WAN Connection Type - Static IP
Then click <Next>. The process for configuring the network parameters is shown as Figure 3-16.
If you close the screen during the process, the configuration will still be continued in the
background.
If you have difficulty in this process, please contact your ISP.
Figure 3-16 WAN Connection Type - Static IP Connecting
After that, you will see the next screen. Click <Finish> to complete the quick installation or click
<Continue> to configure other WAN ports.

TP-Link TL-R470T Specifications

General

Protocols	TCP/IP, PPPoE, DHCP, ICMP, NAT
DHCP	DHCP Server, DHCP Client
Firewall Security	IP and MAC Address Binding
Ports	5 x RJ45 ports
VPN Support	PPTP VPN, L2TP VPN, IPSec VPN
Management	Web-based GUI
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
