TP-Link TL-R470T User Manual

-22-

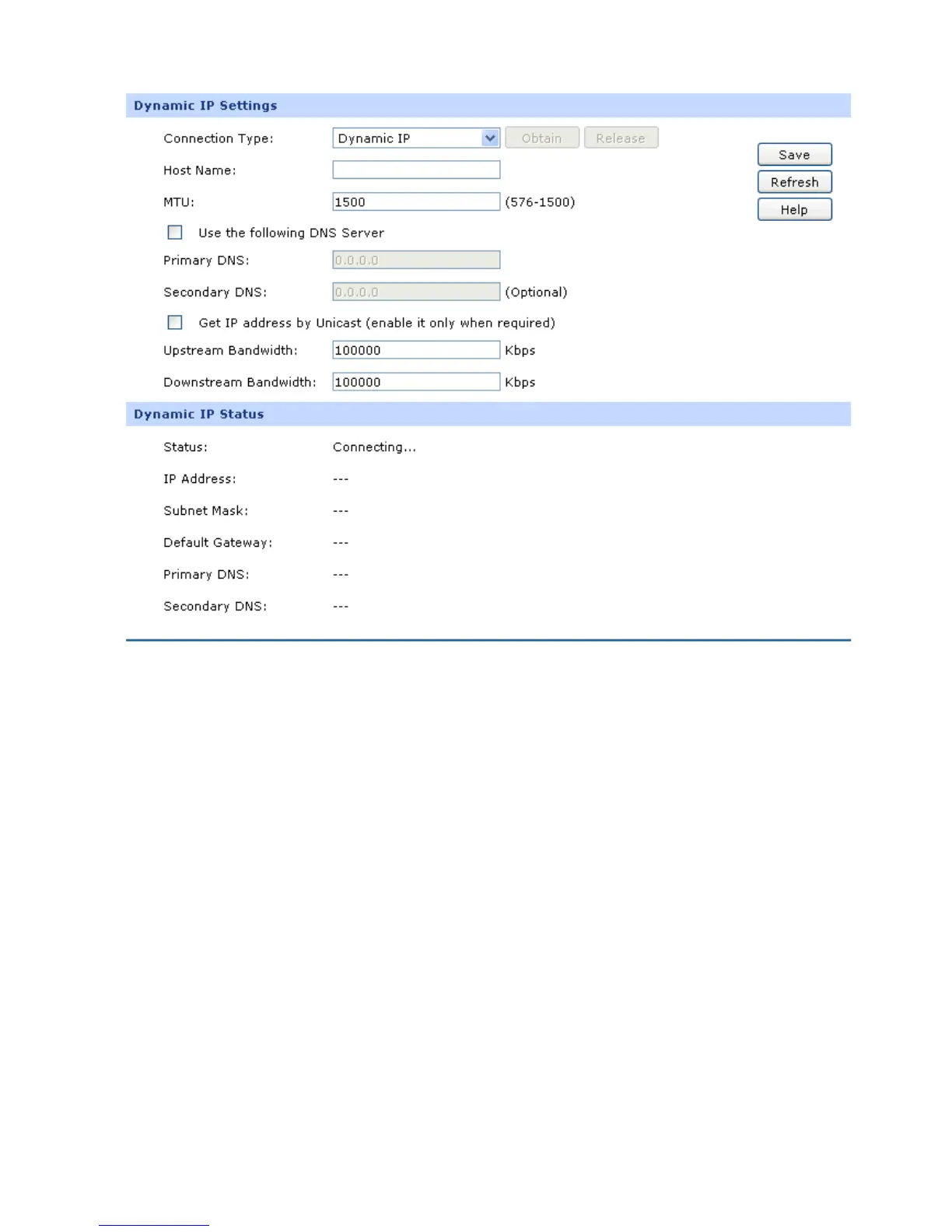

Figure 4-4 WAN – Dynamic IP
The following items are displayed on this screen:
¾ Dynamic IP
Connection Type:
Select Dynamic IP if your ISP assigns the IP address automatically.
Click <Obtain> to get the IP address from your ISP’s server. Click
<Release> to release the current IP address of WAN port.
Host Name:
Optional. This field allows you to give a name for the Router. It's
blank by default.
MTU:
MTU (Maximum Transmission Unit) is the maximum data unit
transmitted by the physical network. It can be set in the range of
576-1500. The default MTU is 1500. You are recommended to keep
the default value if no other MTU value is provided by your ISP.

TP-Link TL-R470T Specifications

General

Protocols	TCP/IP, PPPoE, DHCP, ICMP, NAT
DHCP	DHCP Server, DHCP Client
Firewall Security	IP and MAC Address Binding
Ports	5 x RJ45 ports
VPN Support	PPTP VPN, L2TP VPN, IPSec VPN
Management	Web-based GUI
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
