27
even number from 1024 to 65534. It is set to 10000 and 11000 by default.
z Time-To-Live: Set the maximum TTL(Transistor-Transistor Logic) that multicast can pass
through.

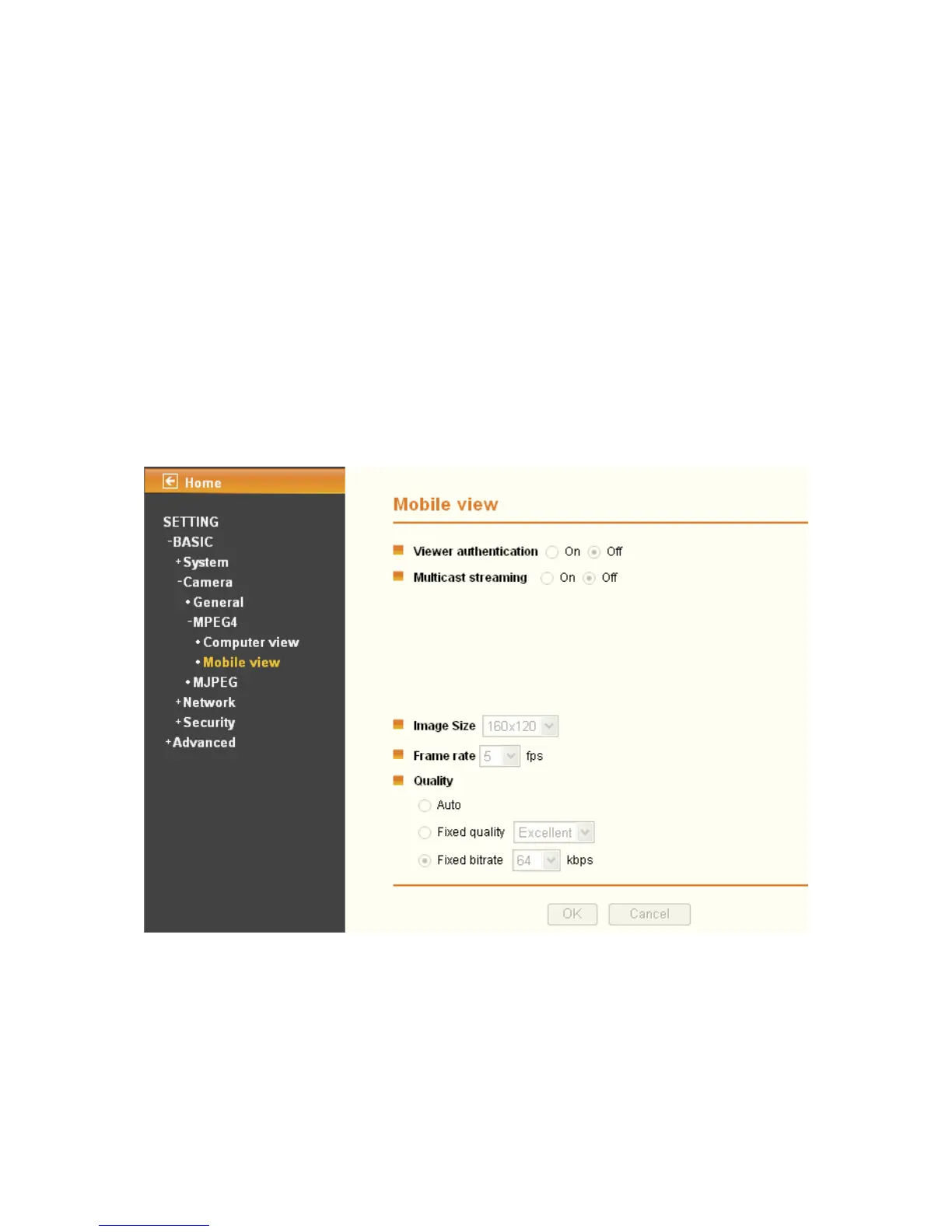

¾ Image Size: The image size of Mobile View is fixed at 160 x 120.
¾ Frame Rate: Set the frame rate of the MPEG4 image. You can choose values from 5, 10fps.
The unit “fps” stands for “frames sent per second”.
¾ Quality:
z Auto: The quality and bitrate will be adjusted automatically according to the frame rate.
z Fixed Quality: You can select the value of quality among Medium, Standard, Good,
Detailed and Excellent.
z Fixed bitrate: Set the bitrate of MPEG4 image transmission for a line. You can select the
values from 16, 32, 48, 64, 128, 256bps.
If RTSP is Off (see Setting →Basic → Camera → General), the screen will display as shown
below.
6.2.3 MJPEG
If RTSP is On (see Setting →Basic → Camera → General), the screen will display as shown
below.
