TP-Link TL-SG2008 User Manual

42
Type
Configuration
Way
Aging out
Being kept after
reboot
(if the configuration
is saved)
Relationship between the
bound MAC address and
the port
Dynamic
Address Table
Automatically
learning
Yes No The bound MAC address
can be learned by the other
ports in the same VLAN.
Filtering
Address Table
Manually
configuring
No Yes -
Table 5-1 Types and features of Address Table
This function includes four submenus: Address Table, Static Address, Dynamic Address and
Filtering Address.
5.4.1 Address Table
On this page, you can view all the information of the Address Table.
Choose the menu Switching→MAC Address→Address Table to load the following page.

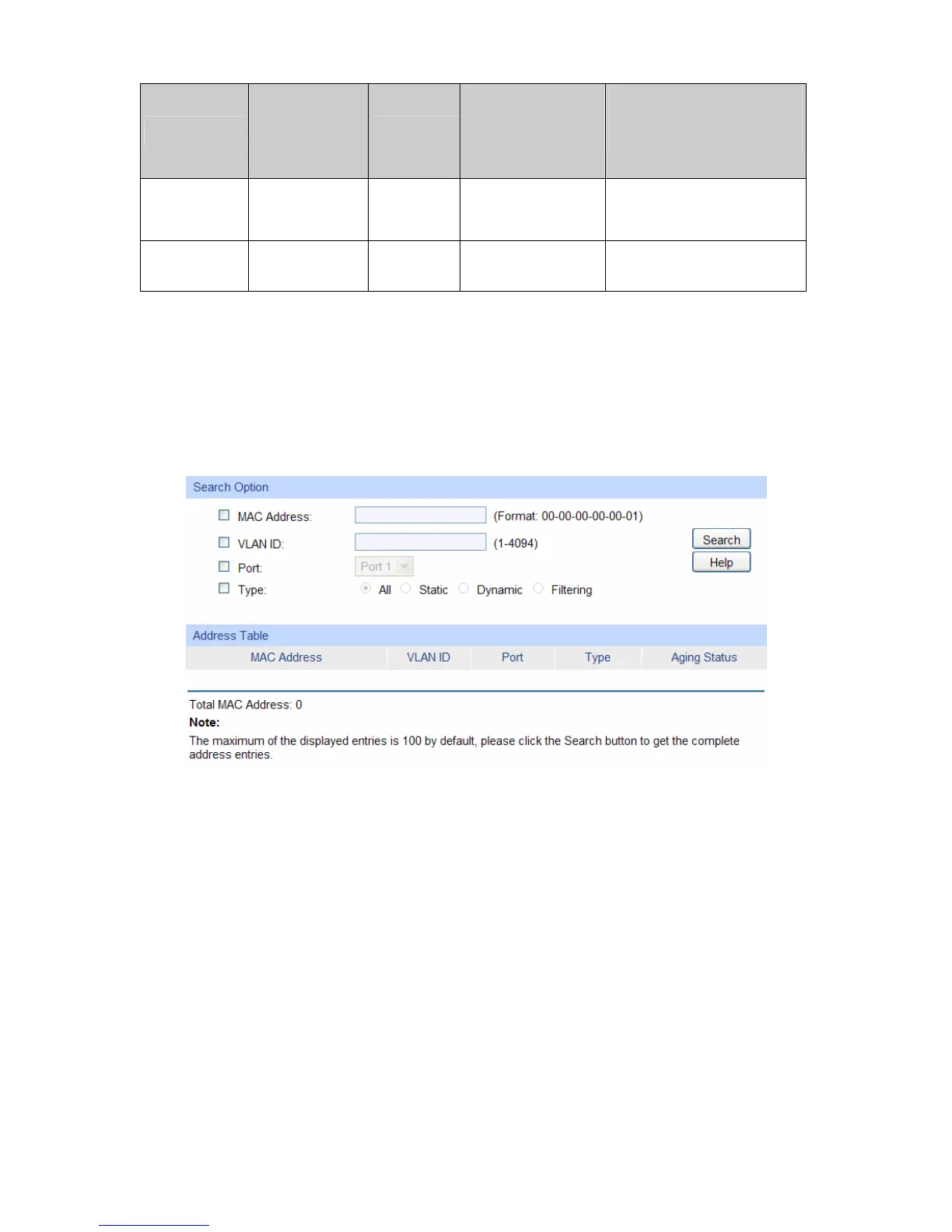

Figure 5-13 Address Table
The following entries are displayed on this screen:
¾ Search Option
MAC Address: Enter the MAC address of your desired entry.
VLAN ID: Enter the VLAN ID of your desired entry.
Port: Select the corresponding port number of your desired entry.
Type: Select the type of your desired entry.
z All: This option allows the address table to display all the
address entries.
z Static: This option allows the address table to display the static
address entries only.
z Dynamic: This option allows the address table to display the
dynamic address entries only.

TP-Link TL-SG2008 Specifications

General

Switch type	Managed
Switch layer	L2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
10G support	No
Number of VLANs	512
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Virtual LAN features	Multicast VLAN, Tagged VLAN, Voice VLAN
Cable types supported	Cat3, Cat4, Cat5, Cat5e
Copper ethernet cabling technology	10BASE-T, 100BASE-TX, 1000BASE-T
DHCP features	DHCP client
Security algorithms	SSH, SSH-2, SSL/TLS
Jumbo frames	9216
Forwarding rate	11.9 Mpps
MAC address table	8000 entries
Packet buffer memory	4 MB
Certification	CE, FCC, RoHS
Product color	Black
Rack mounting	-
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (max)	6.42 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Package depth	280 mm
Package width	223 mm
Package height	68 mm
Package weight	930 g

Weight and Dimensions

Depth	126 mm
Width	209 mm
Height	26 mm
