03
L2 Managed Switch
Port Feature
Model 10/100/1000Mbps RJ45 Port SFP Port Console Port
TL-S G5 428 24 4 1
TL-S G5 412F 4 12 1
10/100/1000Mbps RJ45 Port
Designed to connect to the device with a bandwidth of 10Mbps, 100Mbps or
1000Mbps. For TL-SG5428, each 10/100/1000Mbps RJ45 port has a corresponding
1000Mbps LED and Link/Act LED. But for TL-SG5412F, each 10/100/1000Mbps RJ45
port has a corresponding 10/100/1000BASE-T LED.
SFP Port
Designed to install the SFP module. The SFP ports of these two devices support
1000Mbps SFP module connection only. Each has a corresponding 1000Mbps LED
and Link/Act LED.
Console Port
Designed to connect with the serial port of a computer or terminal for monitoring
and configuring the Switch.
Rear Panel
Due to the similarity of TL-SG5428 and TL-SG5412F in the rear panel, here TL-SG5428 is
used as an example.
Grounding Terminal
Power Socket

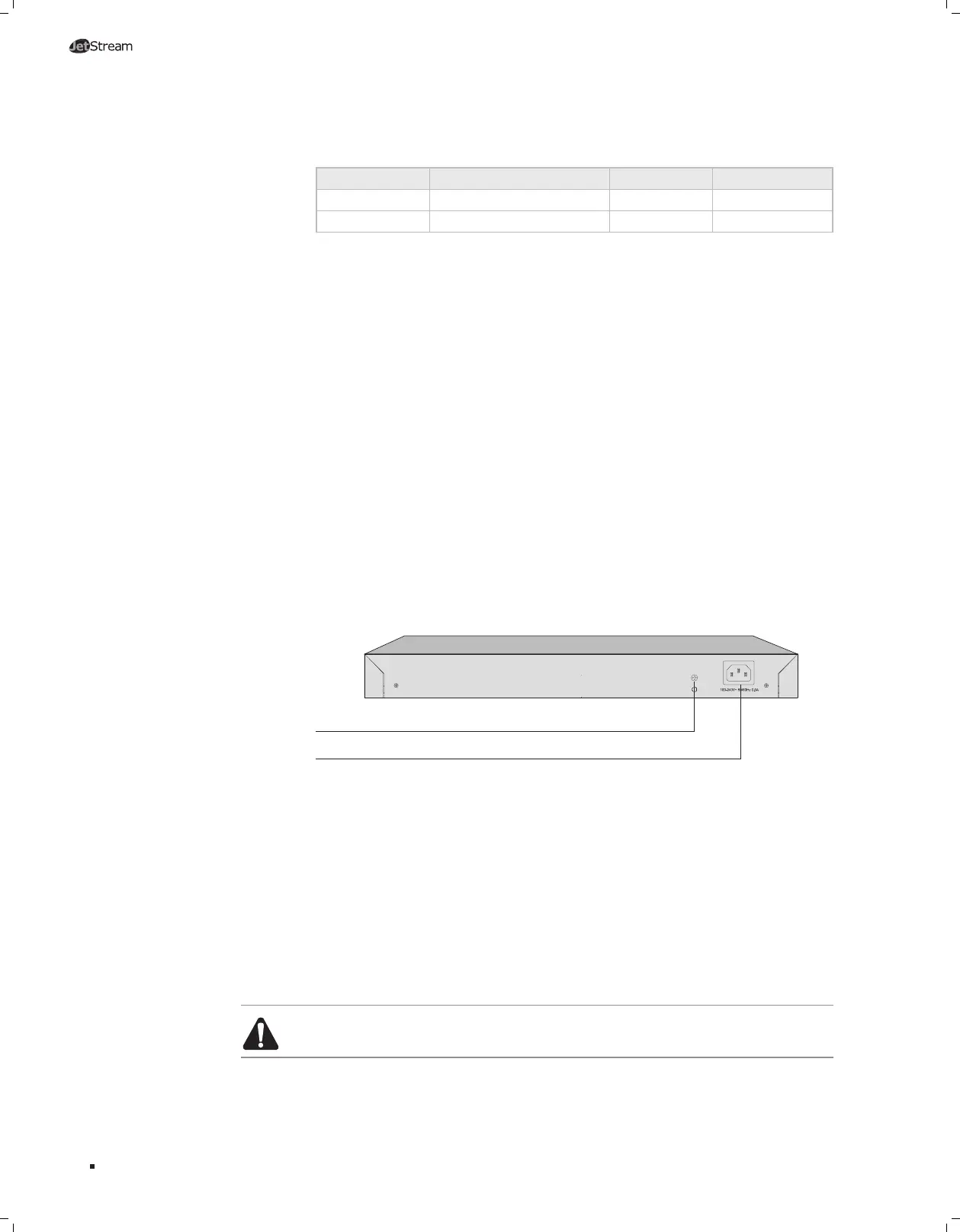

Figure 1-3 Rear Panel of TL-SG5428
Grounding Terminal
The Switch already comes with lightning protection mechanism. You can also ground
the Switch through the PE (Protecting Earth) cable of AC cord or with Ground Cable.
For detailed information, please refer to Chapter 3 Lightning Protection.
Power Socket
Connect the female connector of the power cord here, and the male connector to
the AC power outlet. Please make sure the voltage of the power supply meets the
requirement of the input voltage (100-240V~ 50/60Hz).
Caution: Please use the provided power cord.
Introduction
