TPS miniCHEM-pH - Calibrating the 4 to 20 Ma Output; CMRR Control; Factory Config. Jumpers

Page 15
3.7 Calibrating the 4 to 20mA Output
The 4 to 20mA output of the miniCHEM-pH is factory calibrated. However, TPS
has provided calibration controls for the 4mA and 20mA points in case this
requires adjustment in the field. Only a limited amount of adjustment is available,
as the miniCHEM-pH is designed for 4 to 20mA output for the full scale of the
instrument.
Calibrating the 4 to 20mA output…
1. Connect a Digital Milliamp Meter between terminals 7 and 8.
2. Switch the miniCHEM-pH to SET LIMIT.
3. Adjust the LIMIT control until the display reads 0.00.
4. Adjust the ZERO/4mA trimmer in the terminal area until the Digital Milliamp
Meter reads 4 mA.
5. Adjust the LIMIT control until the display reads 14.00.
6. Adjust the SPAN/20mA trimmer in the terminal area until the Digital
Milliamp Meter reads 20 mA.
In the event that the LIMIT control does not have sufficient adjustment to
reach 0.00 or 14.00, calculate the expected output level and use this for
calibration. Remember that the difference between 0 and 14 pH is to be made
16mA.
3.8 CMRR Control
The Common Mode Rejection Ratio (CMRR) is factory-set with the CMRR
trimmer.
DO NOT ATTEMPT TO ADJUST THE CMRR TRIMMER.
If this trimmer is accidentally re-set, the unit would best be returned to the factory
for re-calibration.
3.9 Factory Config. Jumpers

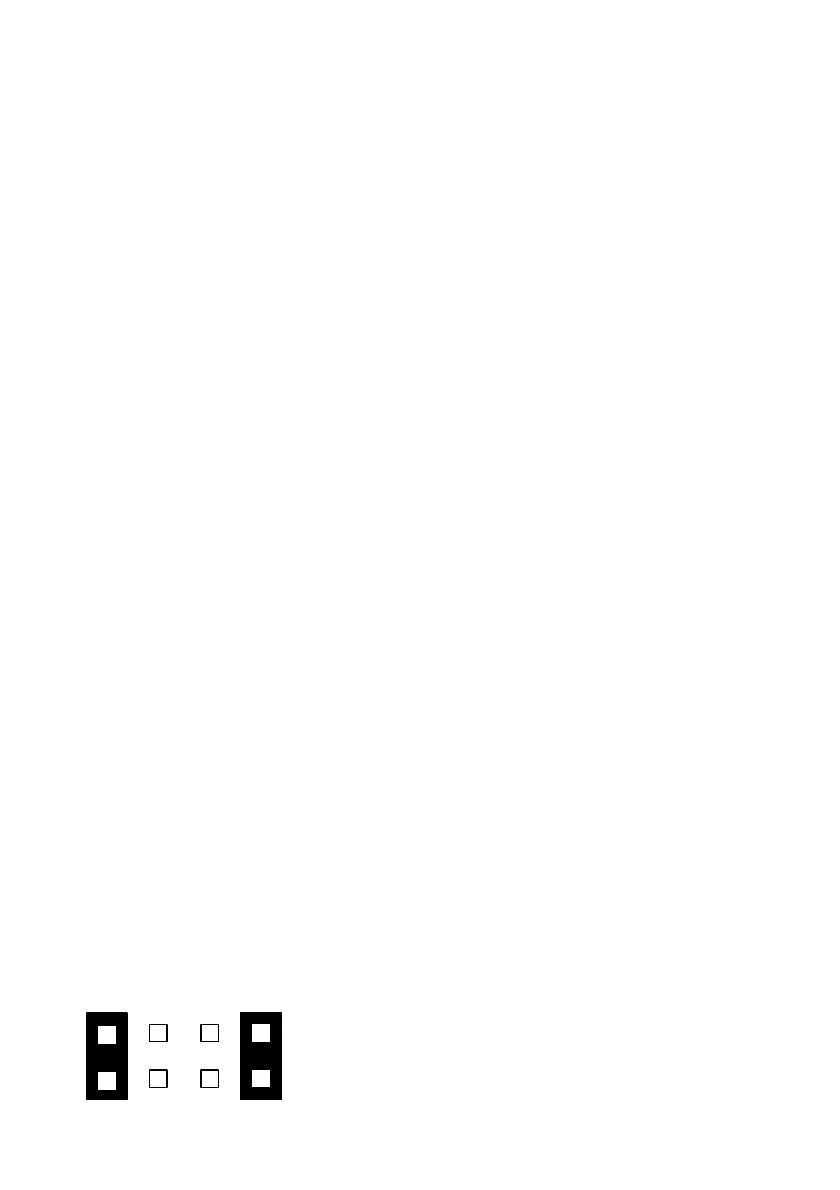

The Factory Config. jumpers are factory set, and must not be altered. In case
any of these jumpers are changed or removed, re-fit them as shown below. The
miniCHEM-pH must be switched OFF before changing jumper settings.
Factory
Config.
