Page 27

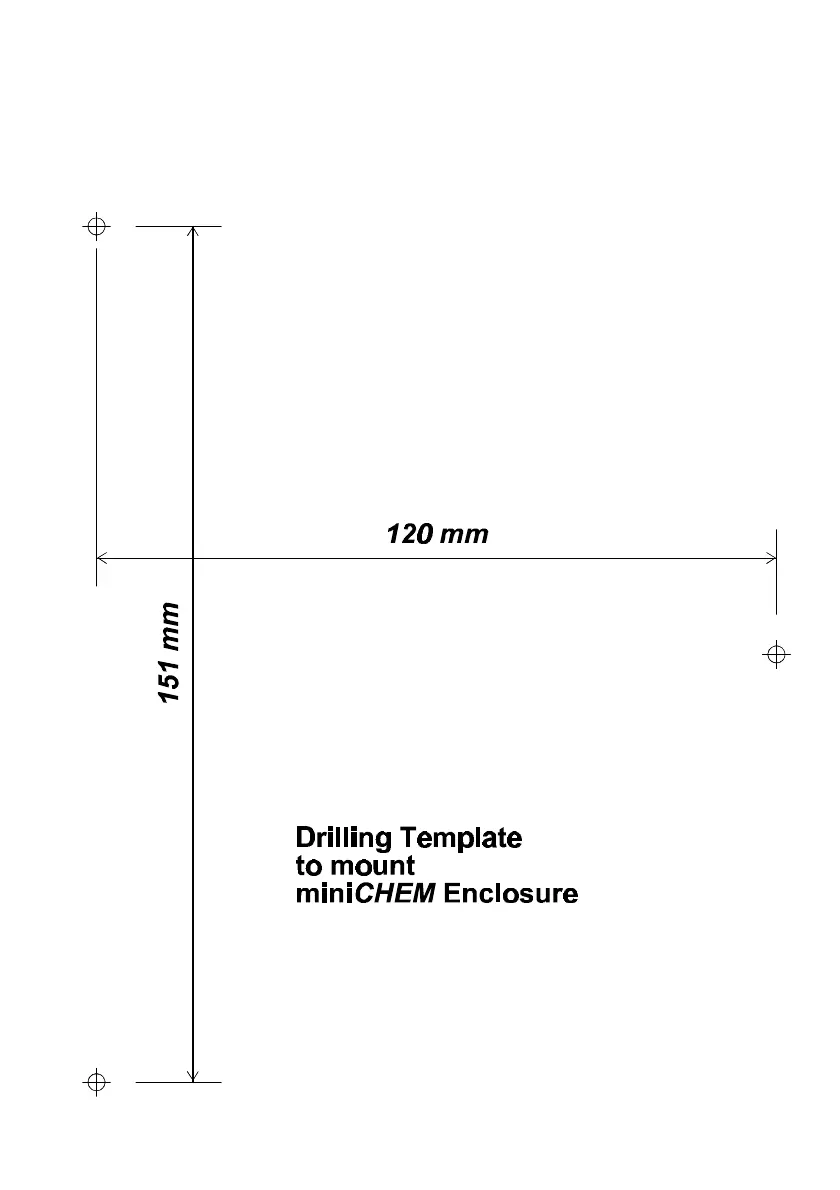

11.6 Drilling Template
The template below is for the three mounting positions for the miniCHEM
enclosure. This template is actual size, and can be photocopied or removed as
required.
