11.5 Relay Output Wiring Examples for 12V DC powered units

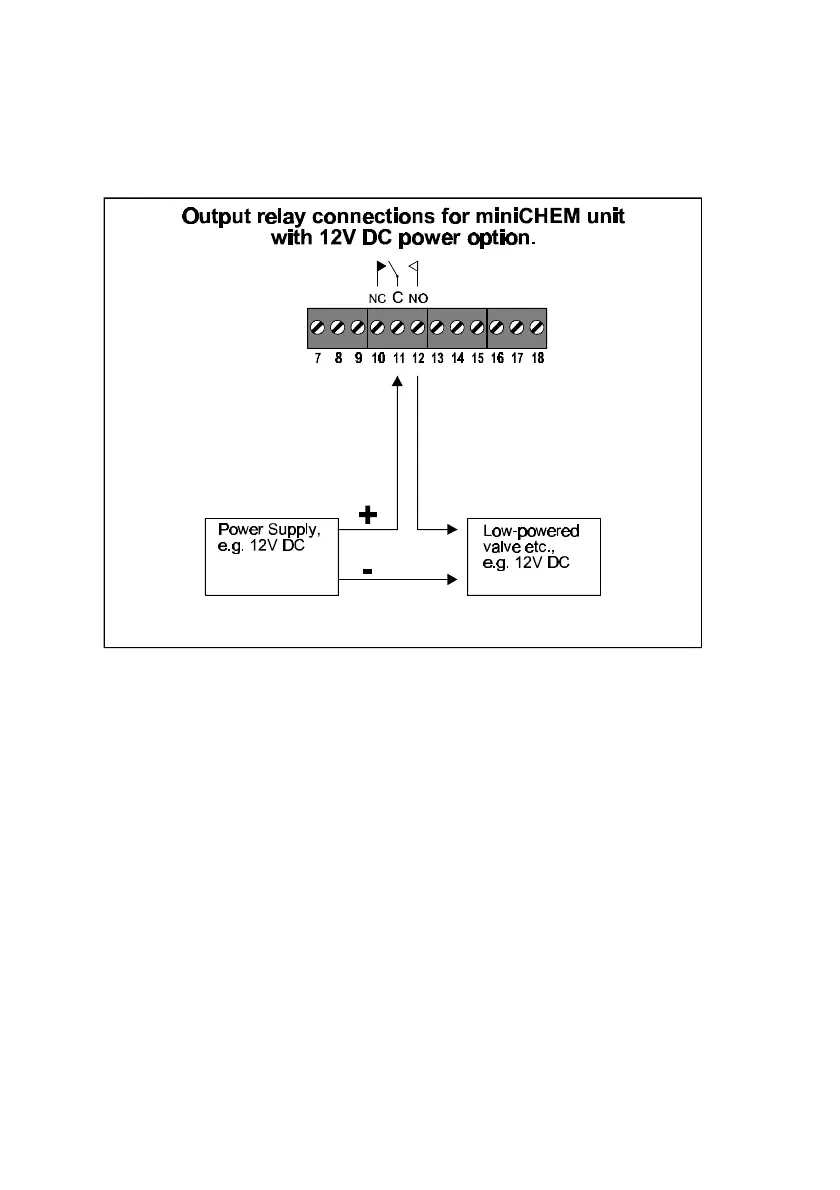

The diagrams below provide some examples of wiring the (optional) relay output
for miniCHEM-pH units with the 12V DC power option.
