11.4 Relay Output Wiring Examples for mains powered units

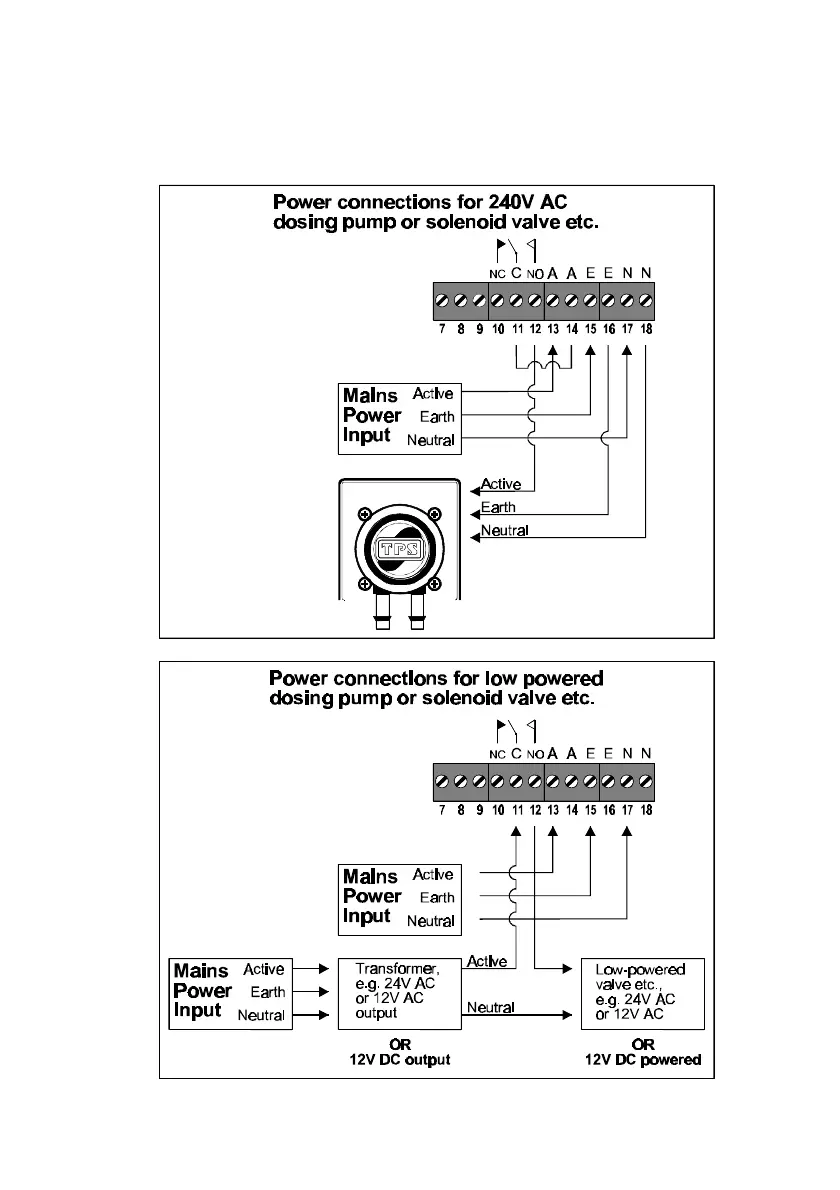

The diagrams below provide some examples of wiring the (optional) relay output
for standard mains powered miniCHEM-pH units.
