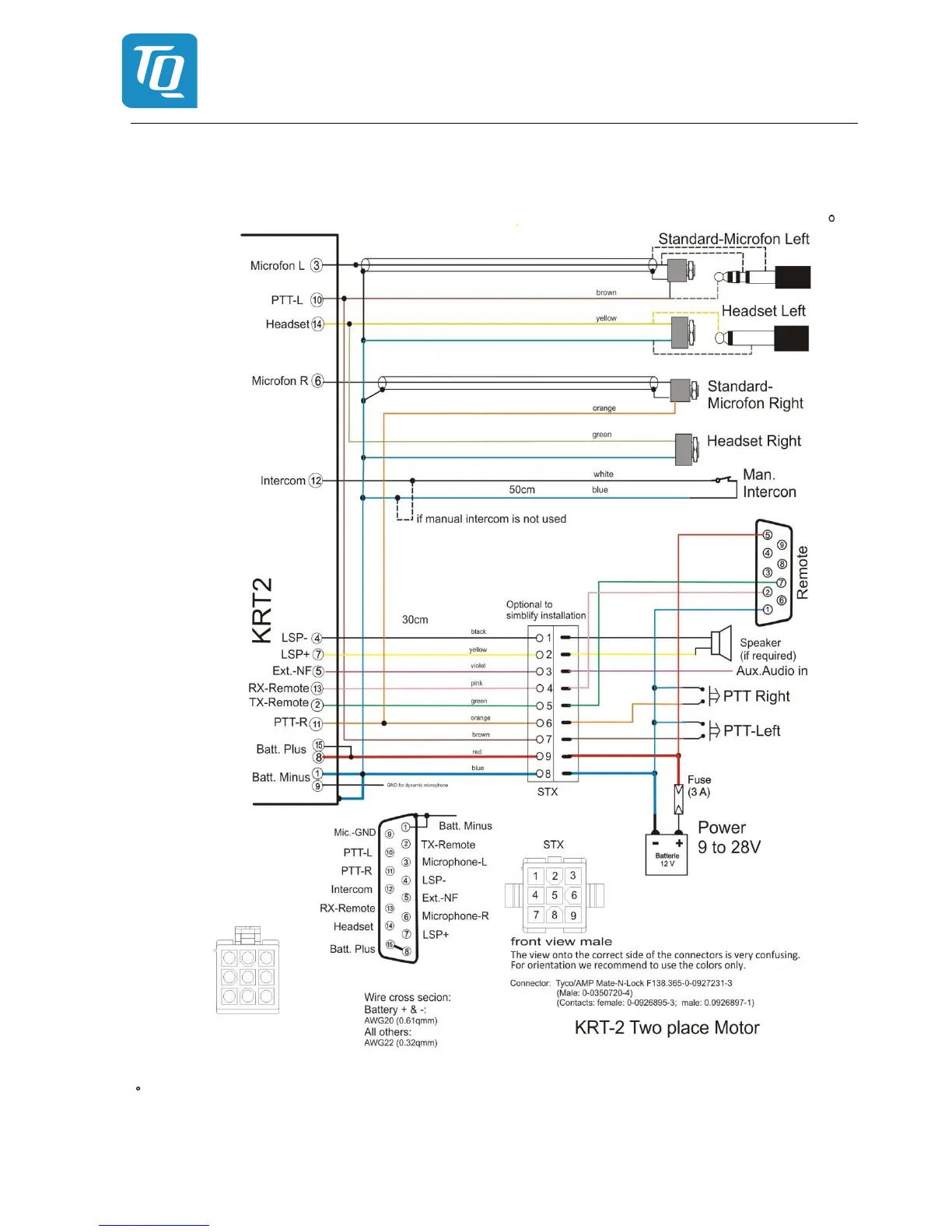

6.9.4 Wiring diagrams
Two place motor aircraft connection
Microphone-Setup: set L / R as required for headset, do not leave in AUTO
