Page 3-12 Installation Instructions TQG191-IM
Rev 0: 28 Feb 2019
NOTE
Antenna installation details are offered as “best practices” guidance only
and do not confer FAA approval for their installation under this STC.
Consult the applicable Aircraft Structural Repair Manual and antenna
manufacturer’s instructions for approved locations, methods and
additional restrictions pertaining to antenna installations.

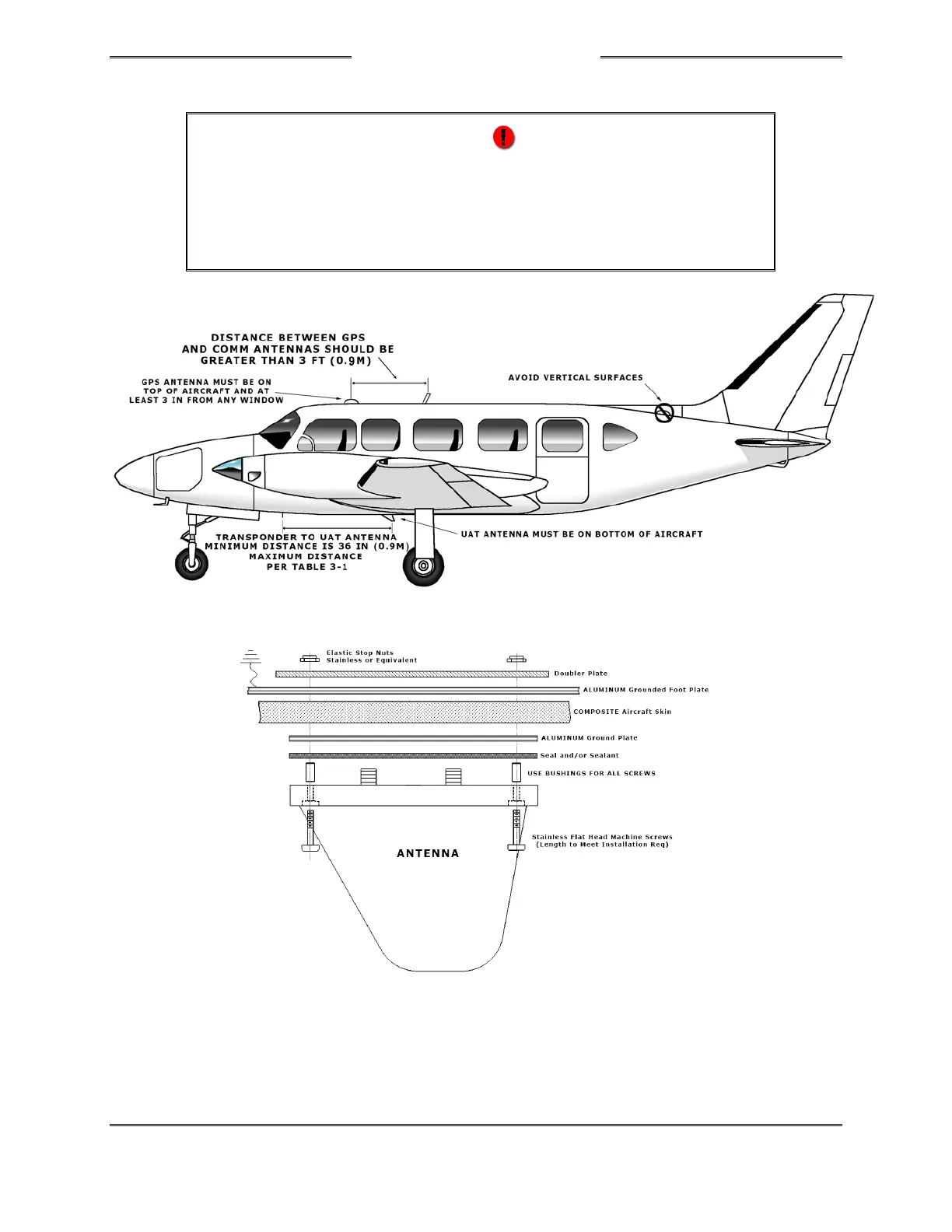

Figure 3-5: Example of Antenna Mounting Locations
Figure 3-6: Example of RF Antenna Mounting and Bonding in Composite Aircraft
3.3.8 GPS Antenna
Since GPS antenna performance is critical to operation of the GPS unit and thus the KTX2, the
recommended antenna must be DO-301 compliant meeting the requirements of TSO-C190.
For installations where the aircraft has an existing antenna complying with DO-228 (TSO-
