Page 4-2 Installation Checkout TQG191-IM
Rev 0: 28 Feb 2019
KTX2
Installation Manual
4.2.2 Controls

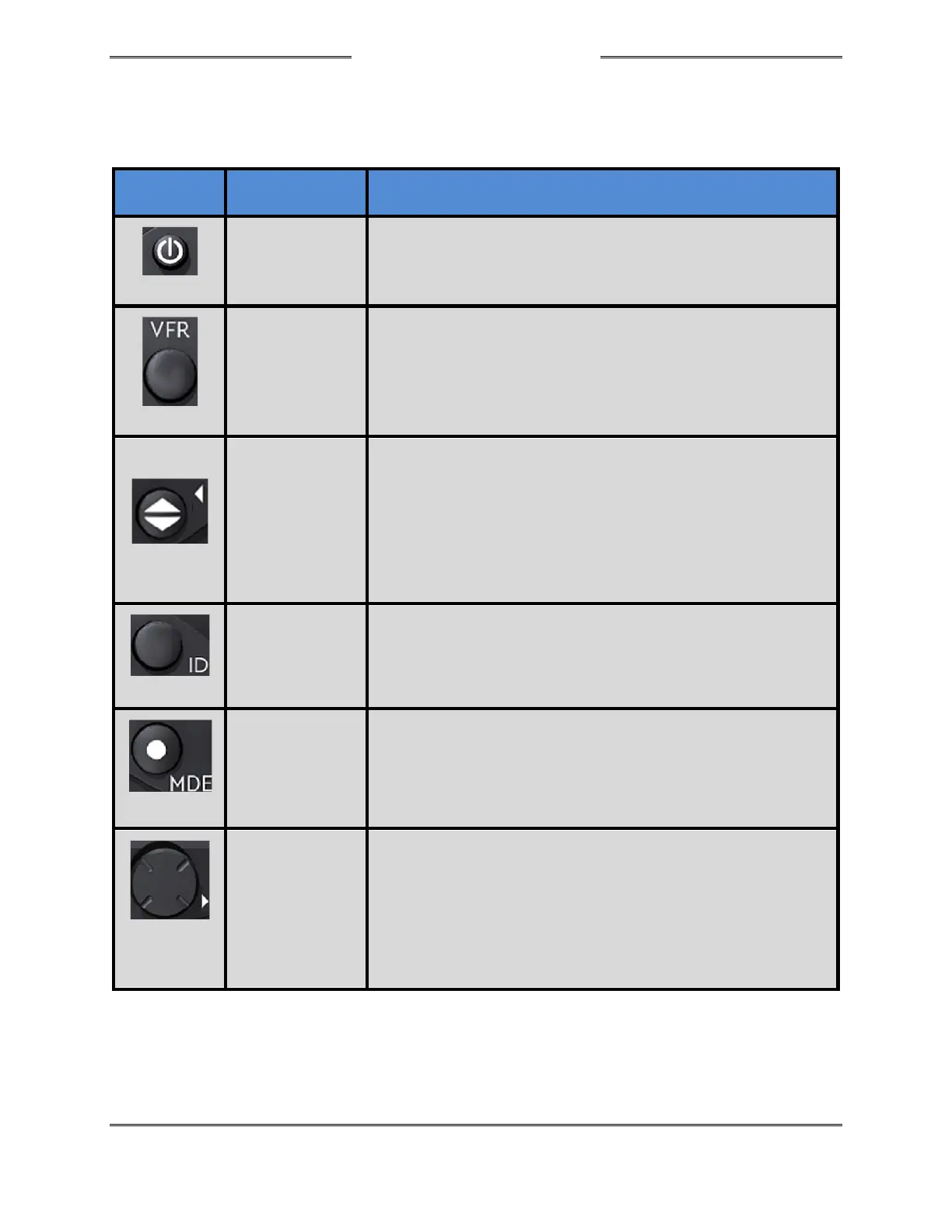

The KTX2 has six multifunction controls as described in Table 4-1.
Control
Designation
Function
[Locking]
ON/OFF
Push = ON, Push = OFF
This switch is mechanically locked until it is pushed a
second time
[Momentary]
VFR
Activate / Deactivate VFR Squawk
Store the Standby Squawk as VFR/VFRW
Press for 3-sec See paragraph 4.3.4
[Rocker]
CHANGE
Exchange Active and Standby Squawk
(or)
Cursor Back.
(or)
Navigates backwards through
configuration menu
[Momentary]
IDENT
“Squawk Ident”
Sends Ident (SPI) for 18-sec
See paragraph 4.3.5
[Momentary]
MODE
Selects Transponder Mode or STBY
See paragraph 4.3.2
[Rotary]
[Rocker]
Rotary
Knob
Enters Values at Current Cursor Position
(or)
Advances Cursor Position
Table 4-1: KTX2 Controls
